Lites

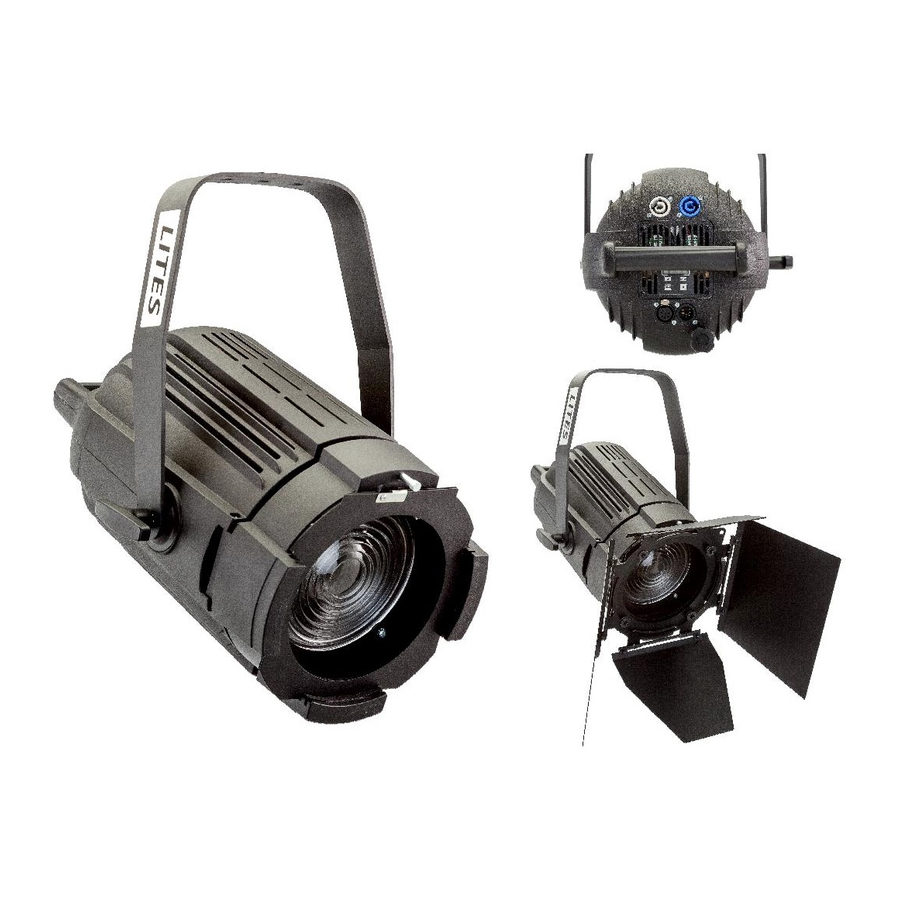

Lites F 200
Owners 's & Service manual
Read this manual totally and carefully follow all the instructions contained. File this manual for future
use. It is essential to read all the information contained to ensure installation, service and full operation
of the LitesF200.
All operations must be accomplished, handled and carried out by qualified personnel only. Not complying
with given notice will void warranty and will free manufufacturer from any liability/responsability
http://www.ilites.eu
Advertisement
Related Manuals for Lites Lites F 200
Summary of Contents for Lites Lites F 200

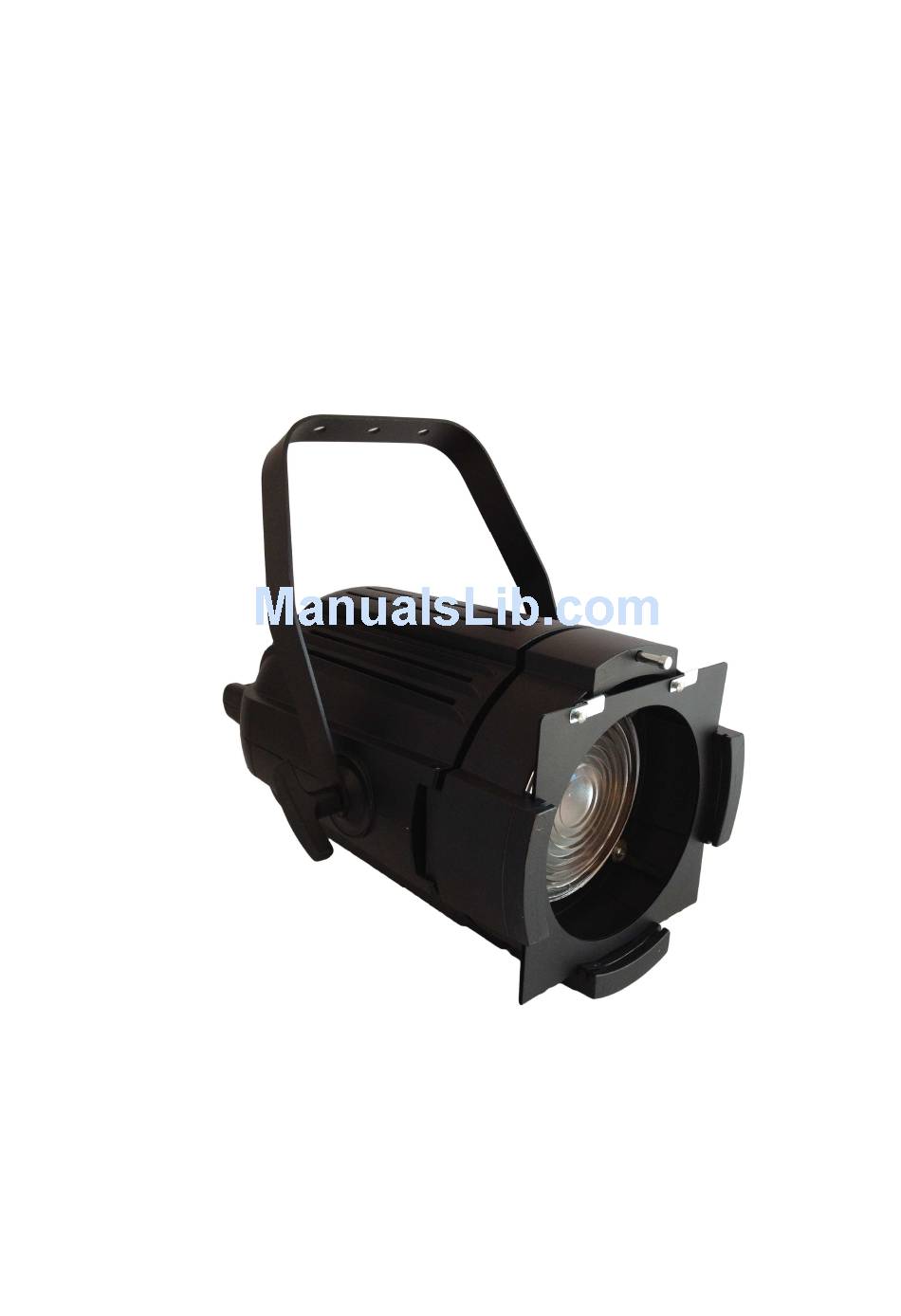

- Page 1 Lites Lites F 200 Owners ‘s & Service manual Read this manual totally and carefully follow all the instructions contained. File this manual for future use. It is essential to read all the information contained to ensure installation, service and full operation of the LitesF200.
-
Page 2: Warranty
Unpacking Unpack the carton and gently remove LitesF200 from the box. Ensure LitesF200 received is integer from origin in all its components. In the event the LitesF200 shows any damage, do not use it and contact immediately your transporter as well as your seller. - Page 3 Technical specifications Power Supply: 100/240V ~ 50/60Hz (autosetting) Maximum power consumption 200W (Citizen CLL050-CLL052) cos ø 0,98 Maximum power consumption 140W (Bridgelux BXRA/Vero) cos ø 0,98 Stand-by power consumption LED Colour temperatues and CRI : ASK INFORMATION at info@ilites.eu Fresnel Lens: Ø 150mm Colour frame dimensions: 195x185 mm (the use of standard 185x185mm colour frame is totally acccettable) Aluminium die-caste body to maximize heat dissipation Operating temperature range:...
- Page 4 Lites200F installation Lirtes200F is delivered with a robust yoke which hosts 3 x 12 mm mounting holes. The use of an adequate G-clamp to sustain at least twice the weight of the Lites200F (Lites200F weighs 7,9 kg) and/or M10 screw is mandatory. The use of safety chain(s) to sustain twice the weight of the Lites200F is also mandatory, the safety chain adds more protections to users and third-parties.
- Page 5 Installations of the accessories LitesF200 delvered with standard 195x185mm colour frame (standard colour frame 185x185 can als be used). The LED source used on LitesF200 allows the use of colour filters that cannot be used with high wattage tungstene lamps which would impair colour filters.
- Page 6 Signal Control Connection LitesF200 can be operated via either DMX512A and or RDM ready . For dasy chain connection use a -2 x 0,5 mm² size lead wire plus shield. Connect Pin 1 to ground, 2= data – while Pin 3 = data +. Pins 4 & 5 are not connected. Ensure that DMX wires and shield do not interfere,nor touch each other as well as they must not touch/interfere with the body of the unit .
- Page 7 DMX Operating Modes (Mode) LitesF200 provides with different DMX operating modes ensuring the ideal use of the DMX universe Shutter/strobo, 8/16 bit dimmer, fan speed and LED frequence are all adjustable mode a 1ch funzione Livelli dmx dimmer 0..255 Light output: 0=Off, 255=Maximum Power mode a 2ch funzione Livelli dmx...
- Page 8 Not complying with security norms/periodical maintenance as expressed in the owner's/service manual will also totally free personal/corporate responsibility/liability. Lites F 200 White 04/11/2013 rev.01 Pagina 8 di 8...
