Lites

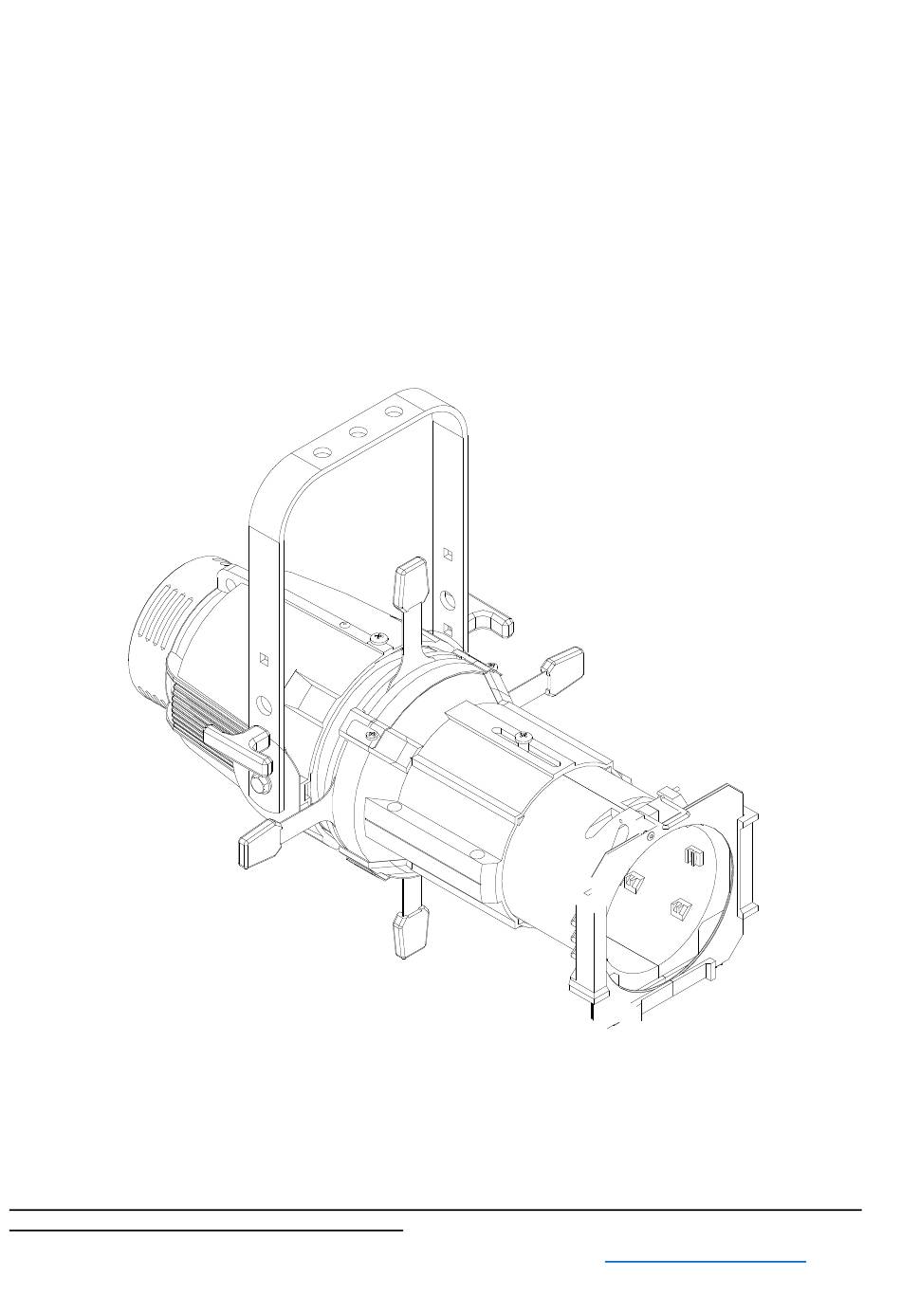

PROFILE C6
COLOUR RGBACL
Owner's and service manual
Read this manual throughout and carefully follow all the instructions contained. File
this manual for future perusals. It is essential to read and follow guidelines and other
information contained in this manual to ensure correct installation, service and full
operations of the Lites Profile. All operations must be accomplished, handled and
carried out by qualified personnel only.
NOT COMPLYNIG WITH GIVEN NOTICE WILL VOID WARRANTY AND WILL TOTALLY DISCHARGE THE
MANUFACTURER FROM ANY RESPONSABILITY
www.litessrl.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROFILE C6 COLOUR RGBACL and is the answer not in the manual?

Questions and answers

Related Manuals for Lites PROFILE C6 COLOUR RGBACL

Summary of Contents for Lites PROFILE C6 COLOUR RGBACL

  • Page 1 It is essential to read and follow guidelines and other information contained in this manual to ensure correct installation, service and full operations of the Lites Profile. All operations must be accomplished, handled and carried out by qualified personnel only.

  • Page 2: Warranty

    A 24-month warranty is granted on the Lites Profile C6 from its purchase’s date. Warranty covers fabrication defects only, unit is not replaced but will be 100% fixed. Lites Profile C6 must be handled and used by qualified people, as if not, it will void the warranty. Warranty is also voided if qualified personnel and users do not and have not handled the Lites Profile C6 properly.

  • Page 3: Technical Specifications

    Technical specifications Power Supply 100-240 V~ 50/60Hz Maximum power consumption 175W cos Ø 0,98 Stand-by power consumption Minimum ambient temperature -10°C Maximum ambient temperature 35°C LED Colour RGBACL: Red; green; blue; amber; cyan; lime 30 colored presets LED CRI: Minimun CRI : 93> and 98>(depending on the selected white) 10 white presets from 2,300 °...

  • Page 4: Connection To Mains

    Lites Profile C6 installation Lites Profile C6 is delivered with a robust yoke that hosts 3 x 12 mm mounting holes. The use of an adequate G-clamp to sustain at least twice the weight of the Lites Profile C6 (Lites Profile C6 weighs 7,5 kg) and/or M10 screw is mandatory.
  • Page 5 Discovery mode: RDM is active when controller detects this mode; the device reports the presence of the Lites Profile C6 by giving a flash of light (Controller sets the device to a listing to read: settings, DMX address, personality settings, i.e. DMX mode including all the above mentioned DMX values) ON/OFF ”Identify”: This mode is to identify the manufacturer’s device (Lites srl) -Flash of light is to...
  • Page 6 Gel frame Lites Profile C6 is delivered with a standard 163x159mm colour frame. The LED source used on Lites Profile C6 allows the use of colour filters that cannot be used with high wattage tungsten lamps. Ensure that accessories when...

  • Page 7: Menu Items

    Menu items Allowed or Displayed displayed Function Message values Addr 001..512 Set Up DMX Address co01 Preset 1 red co02 Preset 2 light red co03 Preset 3 orange co04 Preset 4 medium amber co05 Preset 5 amber co06 Preset 6 straw tint co07 Preset 7 pale yellow co08...
  • Page 8 ON Will restore the default factory values SoFt Shows Software version DMX Operating Modes (Mode) Selecting 1 of the 7 available modes it enables the number of channels required, and its relevant modes, needed to operate LITES PROFILE C6 Page 8 of 12...
  • Page 9 mode 12 ch RGBACL (default) Function Dmx levels 0..255 From 0 to max 255 green 0..255 From 0 to max 255 blue 0..255 From 0 to max 255 amber 0..255 From 0 to max 255 cyan 0..255 From 0 to max 255 lime 0..255 From 0 to max 255...
  • Page 10 mode 2 ch 0…15 No color 16…20 21…25 light red 26…30 orange 31…35 medium amber 36…40 amber 41…45 straw tint 46…50 pale yellow 51…55 spring yellow 56…60 yellow 61…65 lemon yellow 66…70 lime 71…75 lime green 76…80 green 81…85 moss green 86…90 light cyan 91…95...
  • Page 11 mode 16 ch RGBACL 16 bit Function dmx levels 0..255 From 0 to max 255 Red fine 0..255 Red fine tune adjustment green 0..255 From 0 to max 255 Green fine 0..255 Green fine tune adjustment blue 0..255 From 0 to max 255 Blue fine 0..255 Blue fine tune adjustment...

  • Page 12: Error Messages

    Do not touch nor clean the LEDs nor the sourranded area with solvent Device disposal information At the end of its life, LITES PROFILE C6 must be disposed to an appropriate electrical and electronic equipment waste collection centre. Eco-friendly disposal, helps to avoid possible negative impact on the environment and human health and promotes the reuse and/or recycling of the materials making up the product.
