Summary of Contents for Morris MPH-20012

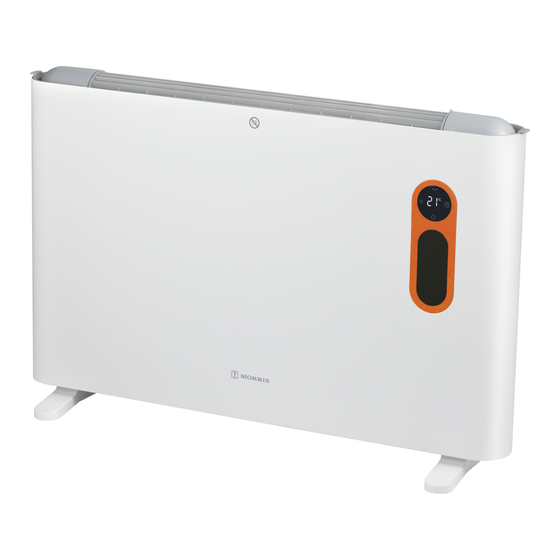

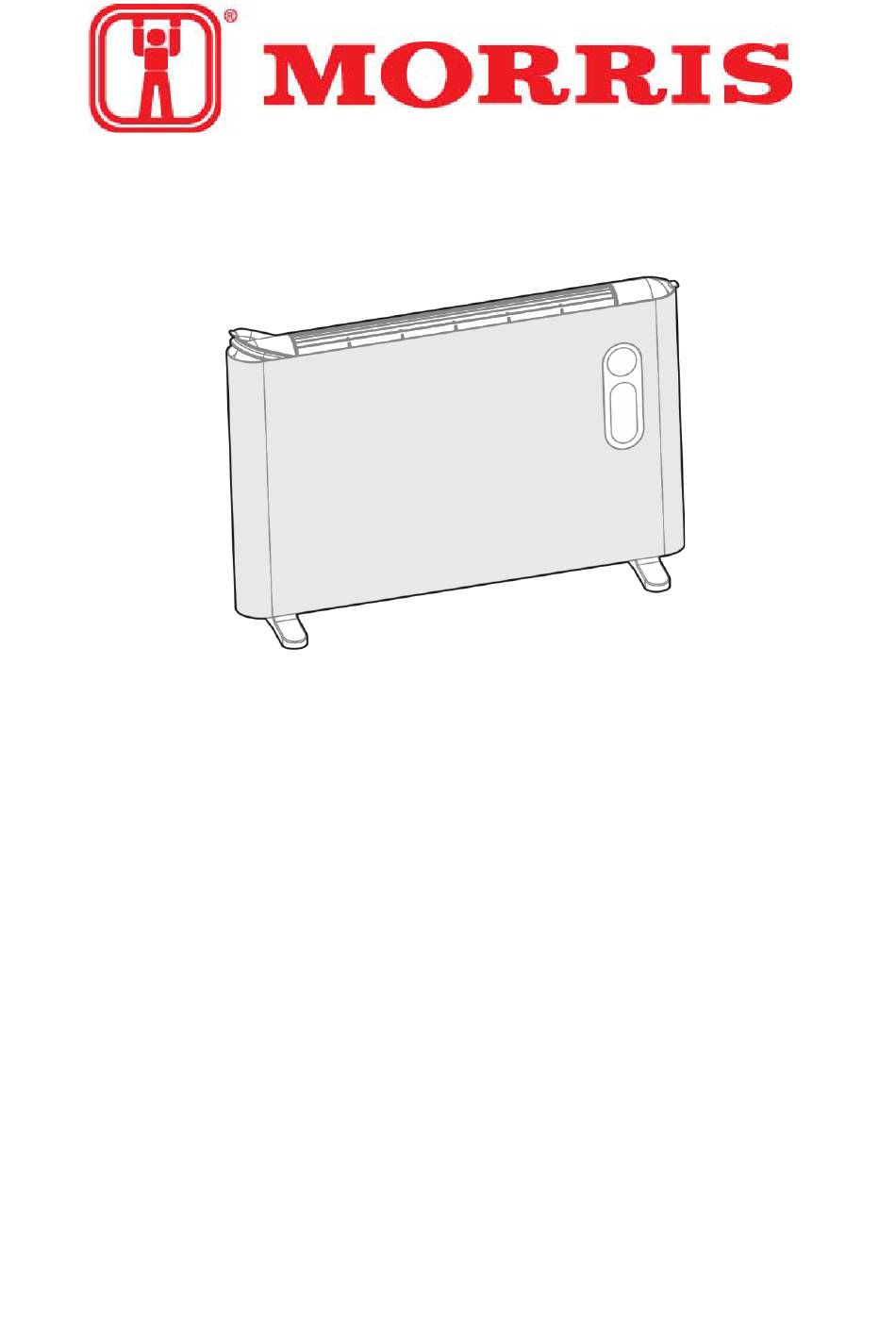

- Page 1 CONVECTOR PANEL HEATER Model: MPH-20012 INSTRUCTIONS MANUAL PLEASE READ AND SAVE THESE IMPORTANT INSTRUCTIONS This product is only suitable for well insulated spaces or occasional use...
-
Page 2: Safety Instructions
THANK YOU LETTER Thank you for choosing Morris! Before using your new Morris product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way. - Page 3 Caution The signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury. Attention The signal word indicates important information (e.g. damage to property), but not danger. Observe instructions This symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.
- Page 4 It is forbidden to turn on/off the heater by plugging ● (unplugging) the power cord instead of using the power switch. This product is only suitable for indoor use. ● When the product is in normal use or when it is not in ●...
- Page 5 It is forbidden to use the product as heat preservation ● equipment for animals and plants. If the product malfunctions, please turn it off ● immediately, unplug the power cord and send it to local authorized service center for professional repair. Only qualified and authorized personnel are allowed to ●...
-
Page 6: Specifications
Do not use if there are visible signs ofdamage to the ● heater. Use this heater on a horizontal andstable surface, or fix ● it to the wall, as applicable. SPECIFICATIONS MPH-20012 Product Model 220-240V~ Voltage 50Hz Frequency Socket load current... -
Page 7: Product Overview
PRODUCT OVERVIEW Part Name Vent Handle Operation panel Support feet NOTE All the pictures in this manual are for explanation purpose only. Any discrepancy between the real object and the illustration in the drawing shall be subject to the real subject. -
Page 8: Check Before Starting
Screw Support feet Mounting hole Fig 2 Pass the screws through the holes of the support feet and tighten them on the device. After the installation is complete, turn the device upright and start to use. OPERATION INSTRUCTIONS Check Before Starting •... - Page 9 Panel Control and Display Icon Button Name Display Status • Press the button in the standby state to enter the power-on state. ON/Standby Button • Press the button in the power-on state to enter the standby state. • In the power-on state, press the button to switch the heating mode in the sequence of 01→02→01...
- Page 10 Icon Button Name Display Status • After power on, press and hold the key combination Screen Off for 3 seconds to turn on or stop the screen off function. Button • When the power is turned on, the screen off function turns on by default.
-
Page 11: Remote Control
List of Abnormal Conditions Panel Display Description of Abnormal State Displayed when the temperature sensor is in open circuit. Displayed when the temperature sensor is in short circuit. High temperature alarm fault code displayed when the ambient temperature exceeds 50°C. Remote Control •... -
Page 12: Cleaning And Maintenance
CLEANING AND MAINTENANCE • Before cleaning the product, be sure to turn off the power and pull out the plug, and clean after it has cooled down completely. • After cleaning and maintenance, be sure to wait until it is sufficiently dry before powering on or storing. - Page 13 Item Symbol Value Unit Item Unit Heat output Model: MPH-20012 Type of heat input, for electric storage local space heaters only (select one) manual heat charge control, with Nominal heat output Pnom integrated thermostat manual heat charge control with Minimum heat output...
- Page 14 CE Marking: 93 / 68 / EEC RoHS Directive: 11 / 65 / EU & 15 / 863 / EU The detailed declaration of conformity can be found at www.morris.gr Kalliopi Karyda & Co LP 87A, 17is Noemvriou str, P.C. 55535 Thessaloniki –...
