TASKMASTER -- 5100 SERIES UNIT HEATER
ATTENTION: READ INSTRUCTION CAREFULLY
All electric unit heaters are shipped fully assembled. Instal-
lation includes hanging the unit, mounting the built-in and
remote accessories, wiring of optional control devices, and
electrical wiring to the unit.
To insure proper delivery of the heated air to desired areas,
follow the mounting height and air projection tables include

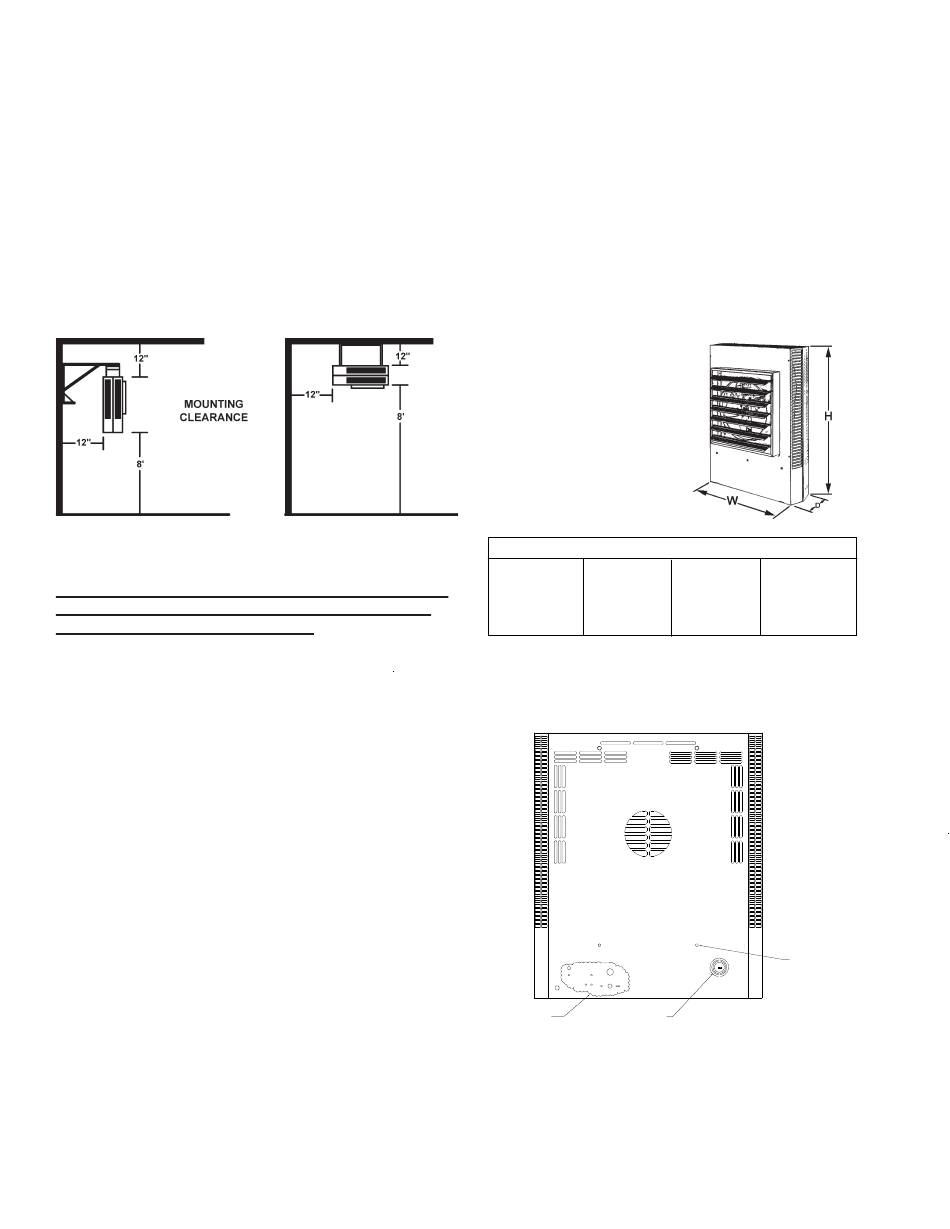

in these instructions. Follow Fig. 1 & 2 for minimum wall and
ceiling clearances.
FIG. 1
HORIZONTAL DISCHARGE
The wall and/or ceiling structure must be sufficient to
support the combined weight of the heater and any
mounting bracket and accessories.
Be sure power source is de-energized before installing
heater. Check heater voltage and phase listed on heater
date tape on back of unit to make sure they are the same
as the electrical service supplied.
Units that carry a dual voltage rating (HF) require specific
wiring changes when converting from 240 to 208 volt
service supplied.
Open the access panel (2 1/4 turn fasteners).
Remove the desired knock-out(s) on back of the heater.
Install any optional accessories following their installation
instructions before mounting unit. Following the correct unit/
accessory wiring diagram, connect the power supply,
electrical ground and accessories to the correct terminals or
termination points using accepted practices.
5
INSTALLATION INSTRUCTIONS
Heaters may be mounted in the horizontal or vertical air
discharge configuration using factory optional supplied
accessory mounting equipment or using special hardware
facilities supplied by others.
After the installation is complete, replace the access panel.
Set the controls (thermostat, switch) at their desired control
point and apply power to the unit.
Check correct operation.
DIMENSIONS
FIG. 2
VERTICAL DISCHARGE
DIMENSIONS (INCHES)
KW H
55.0 - 75.0 35-1/2
80.0 - 100.0 39-1/2
TYPICAL FOR
55 THRU 100 KW
ACCESSORY K.O.'S
POWER K.O.'S
W D
30-1/2 14-1/2
37-5/8 18-1/2
(4) 5/16"-18 MOUNTING POINTS
FOR ALL THREAD OR
OPTIONALFACTORY
CEILING HANGER
FORM: 8986
ECO 1-6931
