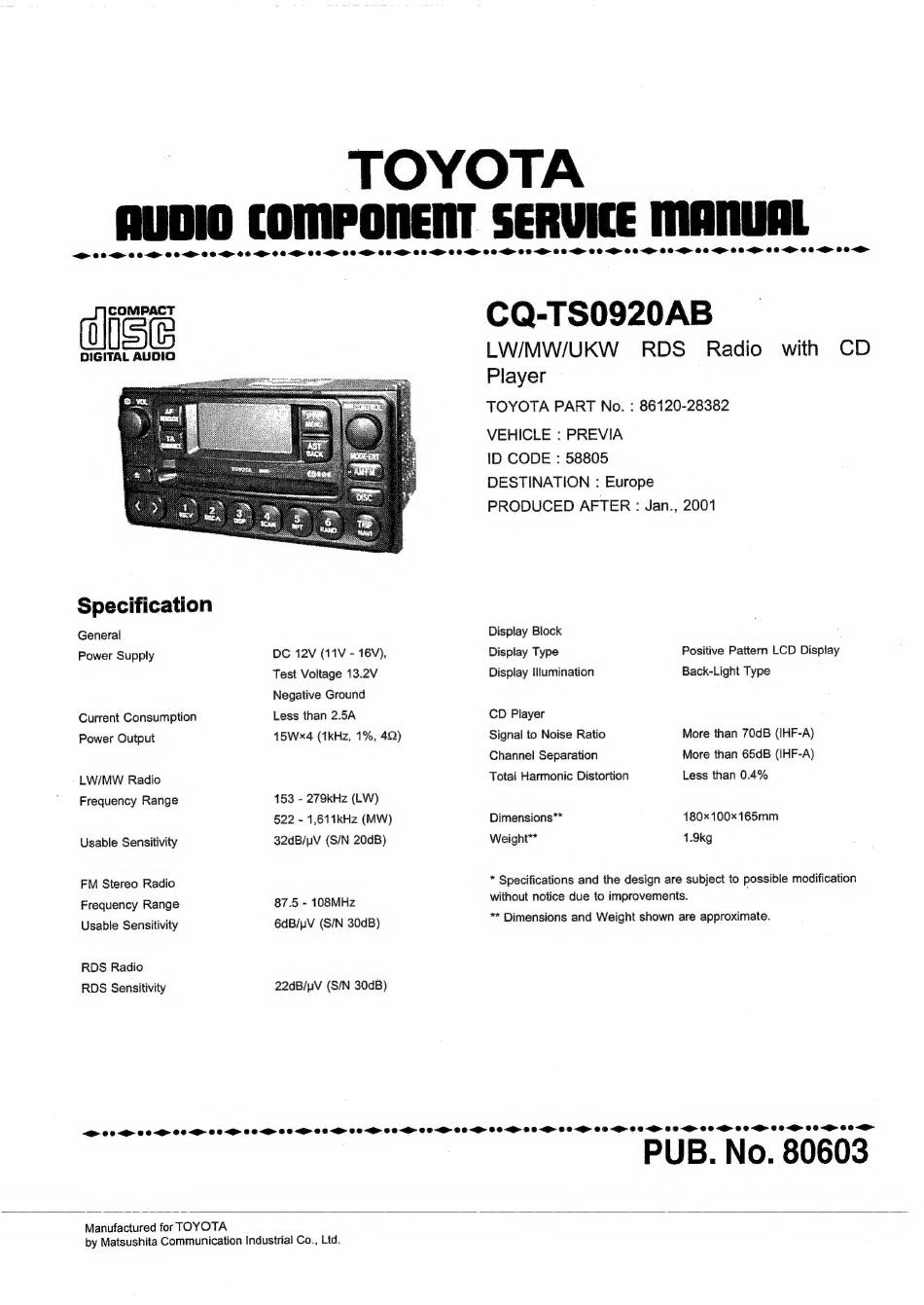

Toyota CQ-TS0920AB Service Manual

COMPACT
DIGITAL AUDIO
Specification
General
Power Supply
Current Consumption
Power Output
LW/MW Radio
Frequency Range
Usable Sensitivity
FM Stereo Radio
Frequency Range
Usable Sensitivity
RDS Radio
RDS Sensitivity
TOYOTA
AUDIO COMPONENT SERVICE MANUAL
DC 12V (11V - 16V),
Test Voltage 13.2V
Negative Ground
Less than 2.5A
15Wx4 (1kHz, 1%, 4Q)
153 - 279kHz (LW)
522 - 1,611kHz (MW)
32dB/uV (S/N 20GB)
87.5 - 108MHz
6dB/UV (S/N 30dB)
22dB/pV (S/N 30dB)
CQ-TS0920AB
LW/MW/UKW RDS Radio with CD
Player
TOYOTA PART No. : 86120-28382
VEHICLE : PREVIA
ID CODE : 58805
DESTINATION : Europe
PRODUCED AFTER: Jan., 2001
Display Block
Display Type Positive Pattern LCD Display
Display IHumination Back-Light Type
CD Player
Signal to Noise Ratio More than 70dB (IHF-A)
More than 65dB (IHF-A)
Less than 0.4%
Channel Separation
Total Harmonic Distortion
Dimensions** 180x100x165mm
Weight** 1.9kg
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
PUB. No. 80603
Manufactured for TOYOTA
by Matsushita Communication Industrial Co., Ltd.
