SonicWall
TZ80
Quick Start Guide
For product information, go to SonicWall Technical Documentation
for the TZ series.
Regulatory Model Number
Product Name
APL69-11B
TZ80
Copyright © 2024 SonicWall Inc. All rights reserved.
SonicWall is a trademark or registered trademark of SonicWall Inc. and/or its affiliates in
the U.S.A. and/or other countries. All other trademarks and registered trademarks are
property of their respective owners.
The information in this document is provided in connection with SonicWall Inc. and/or its
affiliates' products. No license, express or implied, by estoppel or otherwise, to any
intellectual property right is granted by this document or in connection with the sale of
SonicWall products. EXCEPT AS SET FORTH IN THE TERMS AND CONDITIONS AS
SPECIFIED IN THE LICENSE AGREEMENT FOR THIS PRODUCT, SONICWALL
AND/OR ITS AFFILIATES ASSUME NO LIABILITY WHATSOEVER AND DISCLAIMS
ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS
PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-
INFRINGEMENT. IN NO EVENT SHALL SONICWALL AND/OR ITS AFFILIATES BE
LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR
INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR
LOSS OF PROFITS, BUSINESS INTERRUPTION OR LOSS OF INFORMATION)
ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF
SONICWALL AND/OR ITS AFFILIATES HAVE BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES. SonicWall and/or its affiliates make no representations or
warranties with respect to the accuracy or completeness of the contents of this
document and reserves the right to make changes to specifications and product
descriptions at any time without notice. SonicWall Inc. and/or its affiliates do not make
any commitment to update the information contained in this document.
Legend
WARNING:
A WARNING icon indicates a potential for property
damage, personal injury, or death.
CAUTION:
A CAUTION icon indicates potential damage to hardware or
loss of data if instructions are not followed.
IMPORTANT, NOTE, TIP, MOBILE, OR VIDEO:
icon indicates supporting
information.
To access the Support Portal, go to
https://www.sonicwall.com/support
SonicWall TZ80 Quick Start Guide
Updated - August 2024
232-006137-52 Rev A

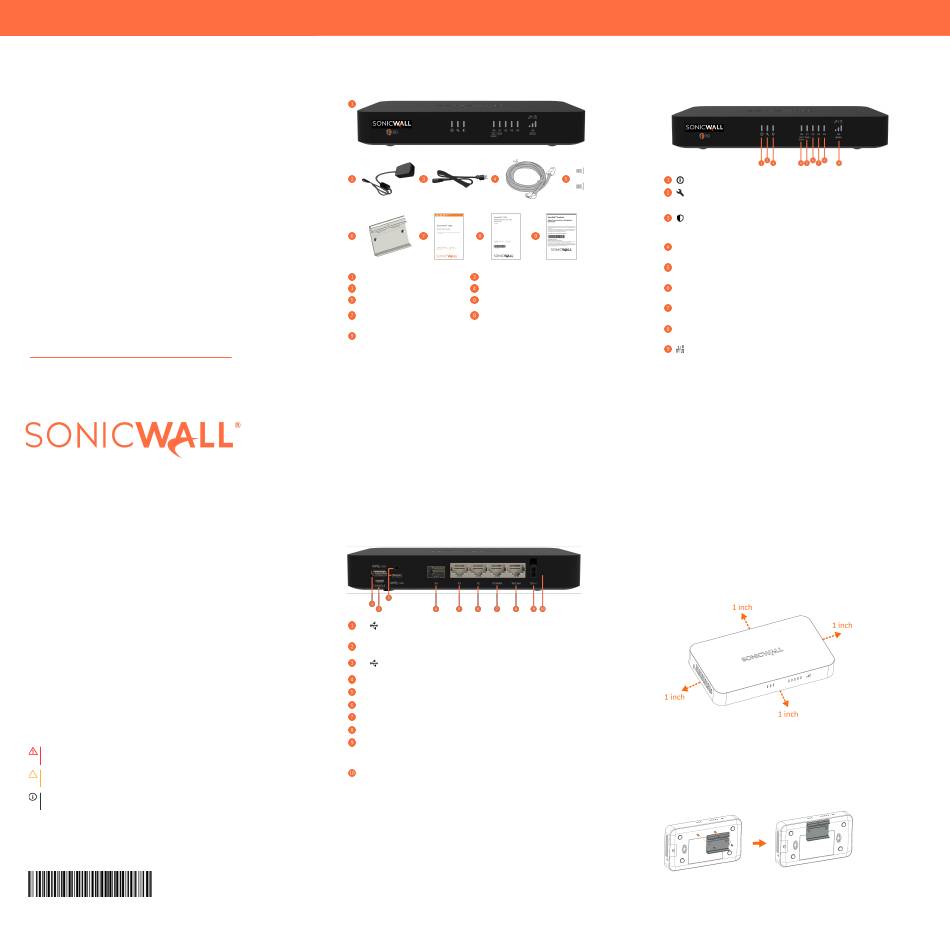

Package Contents
TZ80 Series appliance
Power cord
Screws (2) M3 x 4mm
SonicWall TZ80 Quick Start Guide
Safety, Environmental, and
Regulatory Information document
NOTE:
The included power cord is approved for use only in specific countries or
regions. Before using a power cord, verify that it is rated and approved for use in
your location. The power cord is for AC mains installation only. Refer to the
Series Safety, Regulatory, and Legal Information document for minimum power
cord rating and additional safety information.
メ モ:
添付の電源コードに関して電気安全を確保するために、弊社製品にご使用い
ただく電源コードは必ず製品同梱の電源コードをご使用ください。この電源コードは他
の製品では使用できません。
Content missing? Contact SonicWall Technical Support at:
https://www.sonicwall.com/support/contact-support
Back Panel
/U0
U0 SS USB-A 3.0 Port: For configuration, recovery, re-
SS
imaging, and WWAN.
CONSOLE
Micro-USB Console Port
U0 SS USB-C port with screw lock: For configuration,
/U0
SS
recovery, re-imaging, and WWAN.
X4
X4 SFP Port: 1 Gbps
X3
X3 RJ45 Port: 1 Gbps
X2
X2 RJ45 Port: 1 Gbps
X1/WAN
X1 WAN RJ45 Port: 1 Gbps
X0/LAN
X0 LAN RJ45 Port: 1 Gbps
12V⎓
Power Input: 36W 100~240VAC - 12VDC power adapter
SafeMode
(located
adjacent to
Pin-button (Use a pin to press the button).*
power
supply
connector)
* Enter SafeMode or RECOVERY.
.
While the system is operational, press the SafeMode button. System gracefully
reboots and enters SafeMode or RECOVERY.
While the system is powered down, press and hold the SafeMode button while
connecting the power supply. Release the SafeMode button when you see the
TEST/WRENCH LED blinking YELLOW three times to acknowledge the action.
NOTE:
Only one USB port can be used at a time.
Front Panel
12VDC/36W Power adapter
Ethernet cable
DIN bracket
Safety, Regulatory and Legal
Information document
Mounting Options
Flat Surface Option
Place the TZ80 on a flat surface. Allow unrestricted airflow around
the unit, leaving at least one inch (25.44 mm) clearance on all sides.
Alternate Mounting Option
Instead of using a rack mount tray to mount your TZ80 and power
adapter in a standard 19-inch rack, you can mount a DIN bracket to
the bottom of your TZ80 using the two M3*4mm screws provided and
hang it from one of the rails in your rack.
Power LED: Blue = Powered on
Test LED: Yellow = Initializing, blinking yellow = SafeMode
Security LED: Green = All security services licensed,
blinking yellow = Security services license expired
Security Services monitored by this LED:
Gateway Anti-Virus, Intrusion Prevention, Anti-Spyware
LAN/MGMT X0 Port LED: Solid green = link up,
X0
blinking green = link activity
WAN X1 Port LEDs: Solid green = link up,
X1
blinking green = link activity
RJ45 Port LEDs: Solid green = link up,
X2
blinking green = link activity
RJ45 Port LEDs: Solid Green = link up,
X3
Blinking Green = link activity
SFP Port LEDs: Solid Green = link up,
X4
Blinking Green = link activity
U0 WWAN LEDs for USB 5G/LTE: Green = 5G/LTE signal
strength
