Installation Guide
LP Conversion Kit
IntelliPak™ 1 and 2 with Symbio™ Controls
2-Stage, Modulating, and Ultra Modulating Gas, 20
to 130 Tons
Kit #
Used on IntelliPak 1 Model
439305590001
SFH_(*20,*25)_L
439305590002
SFH_(*30,*40)_L
SFH_(*20,*25,*30)_(H,P)
SFH_(*50,*55,*60,*70,*75)_(L,M)
439305590003
SFH_(*40, *50,*55,*60,*70,*75)_(H,P)
SFH_(*90, *11,*12,*13)_(H,P)
439305590004
SFH_(*20,*25,*30)_T
SFH_(*50,*55,*60,*70,*75)_K
439305590005
SFH_(*40, *50,*55,*60,*70,*75)_T
439305590006
SFH_(*90, *11,*12,*13)_T
Kit #
Used on IntelliPak 2 Model
175261720001
SFHN(090,105)_(A,B,D,E)
SFHN(120,130,150)_(A,D)
Only qualified personnel should install and service the equipment. The installation, starting up, and servicing of heating, ventilating, and air-conditioning equipment
can be hazardous and requires specific knowledge and training. Improperly installed, adjusted or altered equipment by an unqualified person could result in death or
serious injury. When working on the equipment, observe all precautions in the literature and on the tags, stickers, and labels that are attached to the equipment.
September 2022
SAFETY WARNING
RT-SVN048B-EN
Advertisement
Related Manuals for Trane 439305590001
Summary of Contents for Trane 439305590001

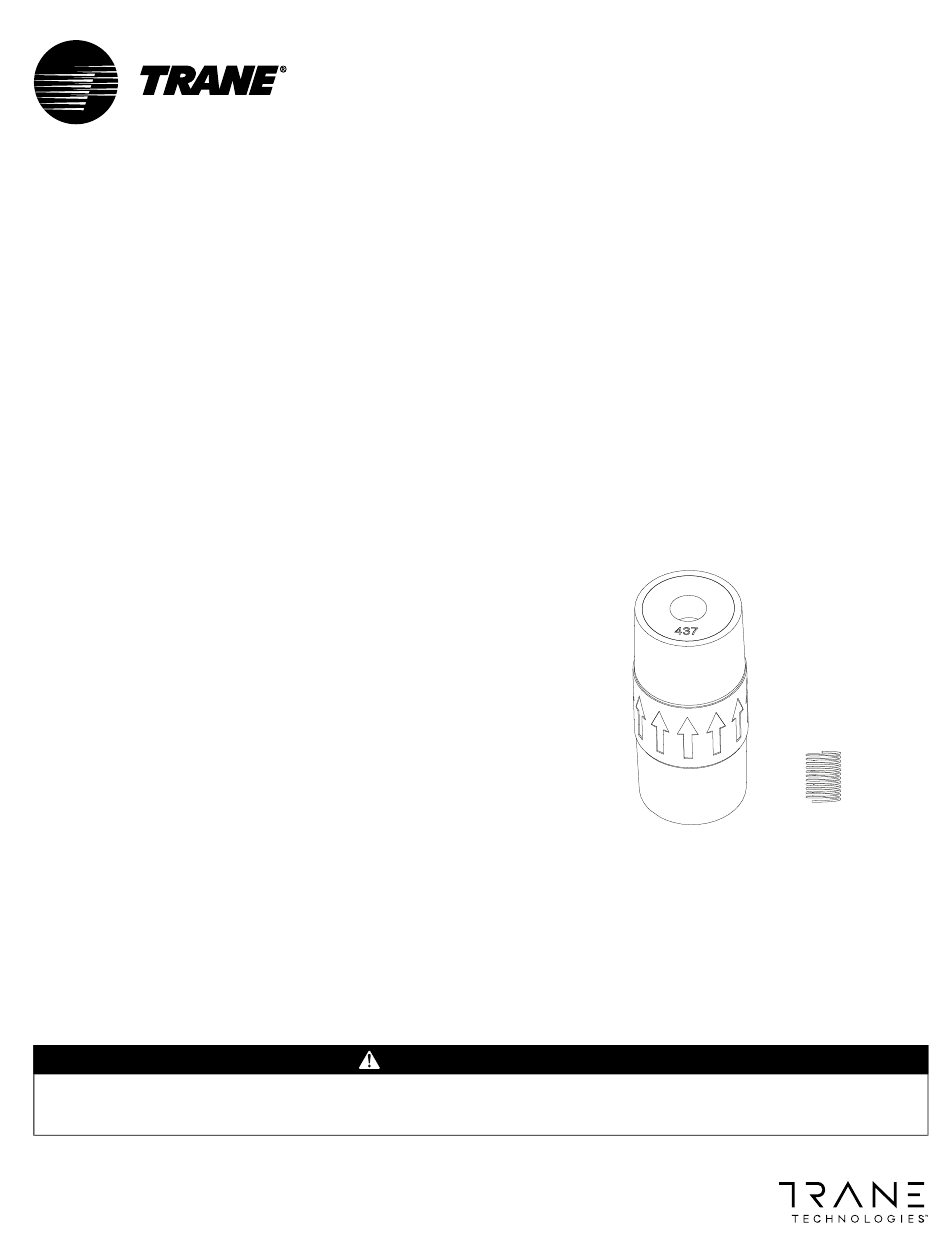

- Page 1 Installation Guide LP Conversion Kit IntelliPak™ 1 and 2 with Symbio™ Controls 2-Stage, Modulating, and Ultra Modulating Gas, 20 to 130 Tons Kit # Used on IntelliPak 1 Model 439305590001 SFH_(*20,*25)_L 439305590002 SFH_(*30,*40)_L SFH_(*20,*25,*30)_(H,P) SFH_(*50,*55,*60,*70,*75)_(L,M) 439305590003 SFH_(*40, *50,*55,*60,*70,*75)_(H,P) SFH_(*90, *11,*12,*13)_(H,P)
-
Page 2: Warnings, Cautions, And Notices
(HCFCs). Not all refrigerants containing these compounds bump cap, fall protection, electrical PPE and arc have the same potential impact to the environment. Trane flash clothing). ALWAYS refer to appropriate advocates the responsible handling of all refrigerants-... - Page 3 Follow EHS Policies! This document and the information in it are the property of Trane, and may not be used or reproduced in whole or in Failure to follow instructions below could result in part without written permission. Trane reserves the right to death or serious injury.
-
Page 4: General Information

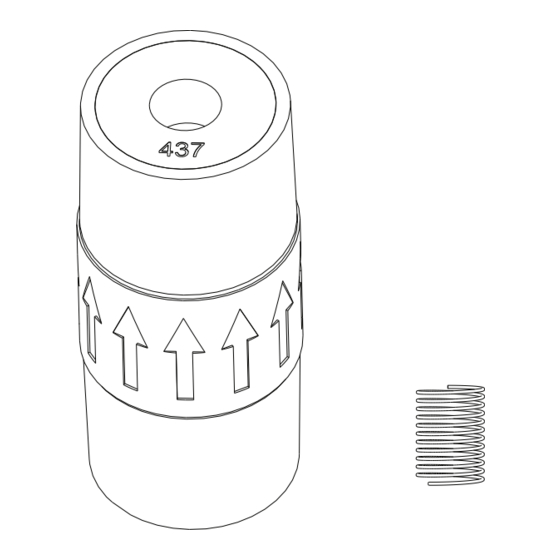

Inspection 1. Unpack all components of the LP conversion kit. 2. Check carefully for any shipping damage and/or missing parts. Contact local Trane Parts Center, if assistance is needed. The gas nipple orifice and spring, Midco’s natural gas to propane... -
Page 5: Installation
Installation Note: Prior to conversion ensure that gas supply to unit is Figure 4. Nipple location – 1000MBH 2-stage and modulating (IntelliPak 1) shutoff and power to unit is disconnected. 1. Remove gas valve access panel(s). 2. Undo union(s) on gas train. 3. - Page 6 Figure 8. Nipple location – 850 and 1100 MBH 2-stage and modulating (IntelliPak 2) 8. Attach the Trane LP conversion label (supplied with the unit literature packet) to the inside of the gas heat control panel near the gas heat nameplates. See Figure 11, p.
- Page 7 Installation Figure 11. Trane LP conversion label Note: Label subject to change and is representative only. Label shown for IntelliPak 1. TRANE CLARKSVILLE, TN 37043 LP GAS CONVERSION FOR MODEL SERIES SFH_20-130 This furnace was converted on: ________________________ (day-month-year) to LP gas with Kit No. ________________________________...
- Page 8 For more information, please visit trane. com or tranetechnologies.com. Trane has a policy of continuous product and product data improvements and reserves the right to change design and specifications without notice. We are committed to using environmentally conscious print practices.
