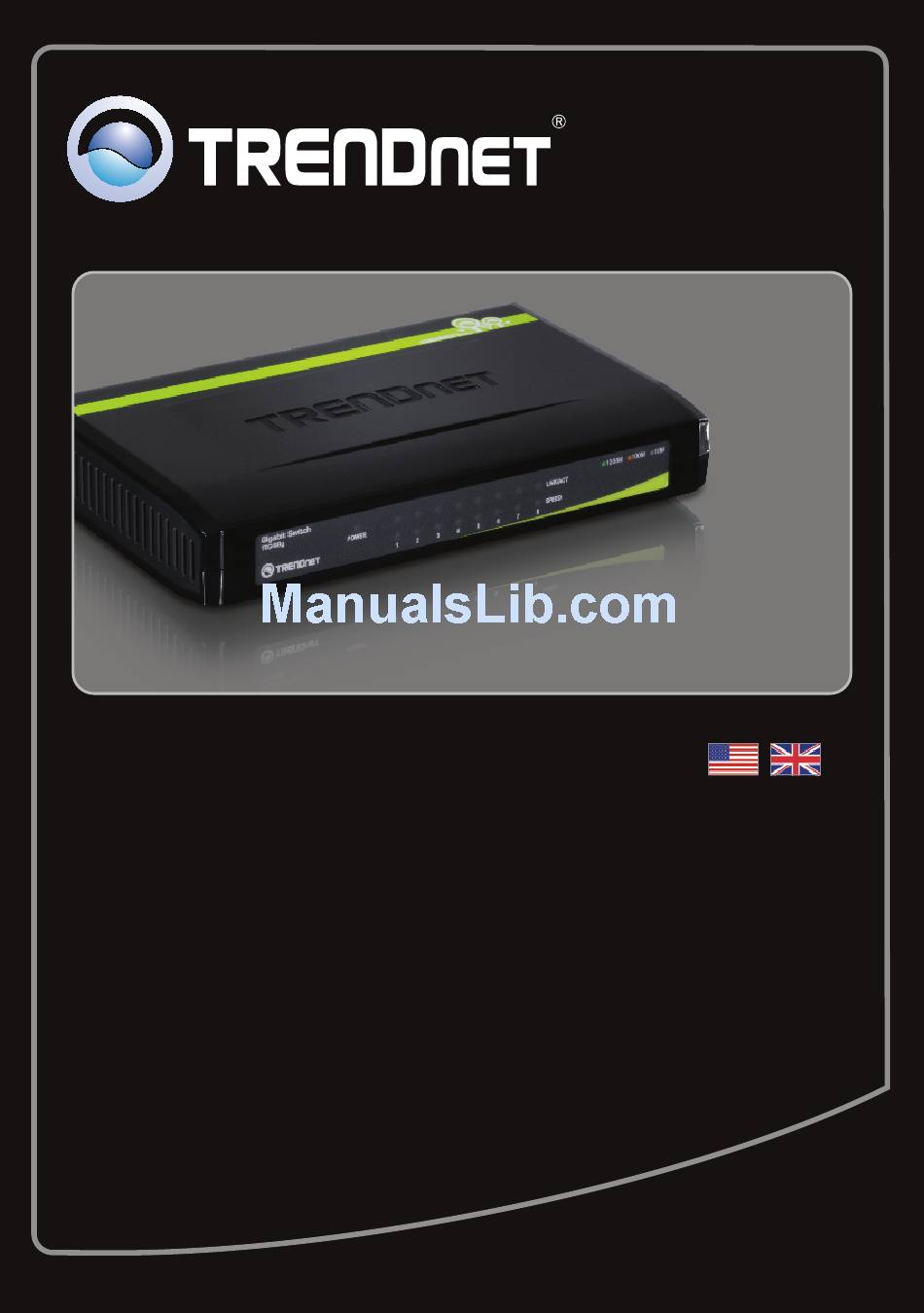

- Page 1 Quick Installation Guide TEG-S8g 1.01...
-
Page 2: Table Of Contents
Table of Contents English 1. Before You Start 2. Hardware Installation 3. LEDs Technical Specifications Troubleshooting Version 10.19.2010... -
Page 3: English
1. Before You Start Package Contents TEG-S8g Multi-Language Quick Installation Guide Power Adapter (5V DC, 1A) System Requirements Computer with network adapter installed Cat.5e or Cat.6 network cable The surface must support at least 245g for the Switch The power outlet should be within 1.82 meters (6 feet) of the switch Visually inspect the DC power jack to make sure that it is securely connected to the power adapter Make sure that there is proper heat dissipation from and adequate ventilation... -
Page 4: Hardware Installation
2. Hardware Installation 1. Connect the Power Adapter to the TEG-S8g and then to a power outlet. 2. Connect a Cat.5e or Cat.6 RJ-45 network cable from the computer to an available Ethernet port on the TEG-S8g. -
Page 5: Leds
3. LEDs Power Green: Power is on Not Illuminated: Power is off Link/ACT Green (Solid): Link to another device Green (Blinking): Activity is occurring from the link Not Illuminated: Nothing is detected on the port Speed Green: Connection for the port is 2000Mbps (Full) Amber: Connection for the port is 100/200Mbps (Half/Full) Not Illuminated: Connection for the port is... -
Page 6: Technical Specifications
Technical Specifications Hardware IEEE 802.3 10Base-T Standards IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3x Flow Control IEEE 802.3az (draft 2.0) Energy Efficient Ethernet Ethernet: Cat. 3, 4, 5, up to 100m Network Media Fast Ethernet: Cat. 5 up to 100m Gigabit Ethernet: Cat. -
Page 7: Troubleshooting
5. Where is the uplink port located on the Switch? Since all the ports on the Switch are Auto-MDIX, any of the ports can be used as an uplink port. If you still encounter problems or have any questions regarding the TEG-S8g please contact TRENDnet's Technical Support Department. - Page 8 TRENDnet products. Products that are sent to TRENDnet for RMA service must have the RMA number marked on the outside of return packages and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment.
- Page 9 Download section and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. Please go to http://www.gnu.org/licenses/gpl.txt...
- Page 12 Copyright ©2010, All Rights Reserved. TRENDnet.
