Summary of Contents for TRENDnet TEG-S80G

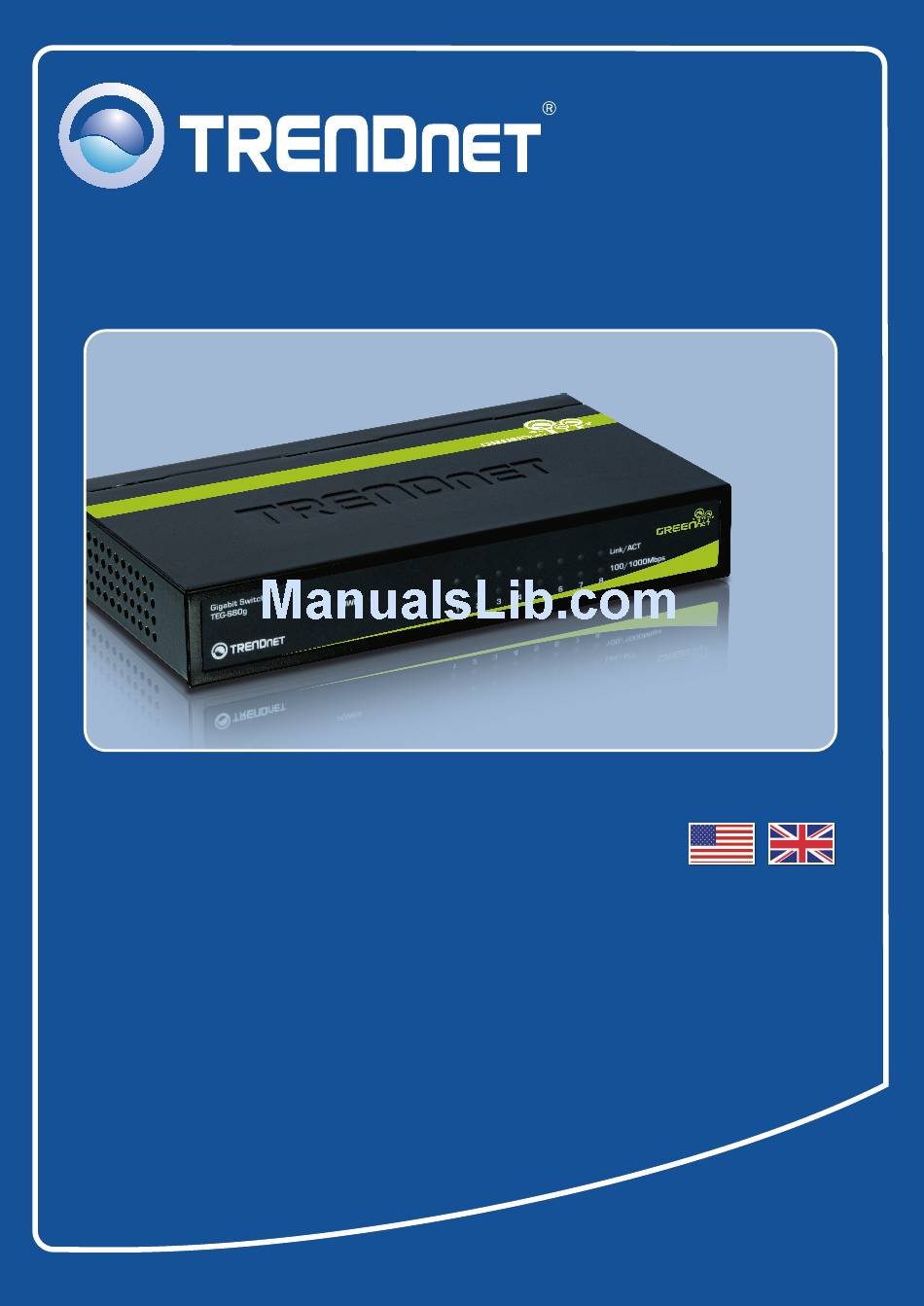

- Page 1 Quick Installation Guide TEG-S80g 1.02...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ...................... 1. Before You Start ................. 2. Hardware Installation ................. 3. LEDs ....................Technical Specifications ................Troubleshooting ..................Version 06.26.2009... -
Page 3: English
Cat-5e or Cat-6 Network Cable The surface must support at least 1.5 Kg for the Switch The power outlet should be within 1.82 meters (6 feet) of the Switch Visually inspect the DC power jack to make sure that it is securely... - Page 4 Delivers less power to unused ports less power Delivers less power when devices are off less power 100m GREENnet Delivers less power Switch with shorter Full Power cable lengths 100m Regular Switch *Max power savings compared with standard TRENDnet switches. English...
-
Page 5: Hardware Installation
2. Hardware Installation 1. Connect the AC Power Adapter to the TEG-S80g and then to a power outlet. 2. Connect a CAT-5e or CAT-6 RJ-45 network cable from the computer to an available Ethernet port of the TEG-S80g. English... -
Page 6: Leds
Green(Blinking): Activity is occurring from the link Not Illuminated: Nothing is detected on the port. 100/1000Mbps Green: Connection for the port is 1000 (Full/Half) Amber: Connection for the port is 100 (Full/Half) Not Illuminated: Connection for the port is 10(Full/Half) or nothing is detected on the port. -
Page 7: Technical Specifications
Diagnostic LEDs Power, Link/ACT, 100/1000Mbps Power Adapter 7.5V DC, 1A External Power Adapter Dimensions 171 x 98 x 28 mm (6.7 x 3.86 x 1.1 in.) Weight 450g Operating: 0° ~ 40° C (32° ~ 104° F) Temperature Storage: -10° ~ 70° C (14° ~ 158° F) -
Page 8: Troubleshooting
Fourth, verify that you have file sharing enabled. Please contact your Operating System support for more information. After I connect my PCs to the Switch, I can only get onto the Internet from one computer. The Switch was not designed to share Internet between multiple computers. - Page 9 If a product does not operate as warranted during the applicable warranty period, TRENDnet shall reserve the right, at its expense, to repair or replace the defective product or part and deliver an equivalent product or part to the customer. The repair/replacement unit's warranty continues from the original date of purchase.
- Page 10 THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE. Governing Law: This Limited Warranty shall be governed by the laws of the state of California. Some TRENDnet products include software code written by third party developers. These codes are subject to the GNU General Public License ("GPL") or GNU Lesser General Public License...
- Page 11 El uso de un adaptador distinto al mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria existente en el pais o zona de instalación.
- Page 12 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2009. All Rights Reserved. TRENDnet.
