Kohler Brockway K-20821T Installation Instructions Manual

BEFORE YOU BEGIN BEFORE YOU BEGIN
A. Introduction

Please read these instructions carefully to familiarize yourself
with the required tools, materials, and installation sequences.
Follow the sections that pertain to your particular installation. This
will help you avoid costly mistakes. In addition to proper
installation, read all operating and safety instructions.

All information is based on the latest product information
available at the time of publication. Kohler Co. reserves the right
to make changes in product characteristics, packaging, or
availability at any time without notice.

These instructions contain important care, cleaning, and warranty
information-please leave these instructions for the consumer.
B. Installer Hazard Notification
CAUTION!! Risk of personal injury.
Since the cast iron lav is very heavy, this needs to be
performed by at least two people. When installing these
products, please wear appropriate safety equipment for the
risk of clipping your fingers.

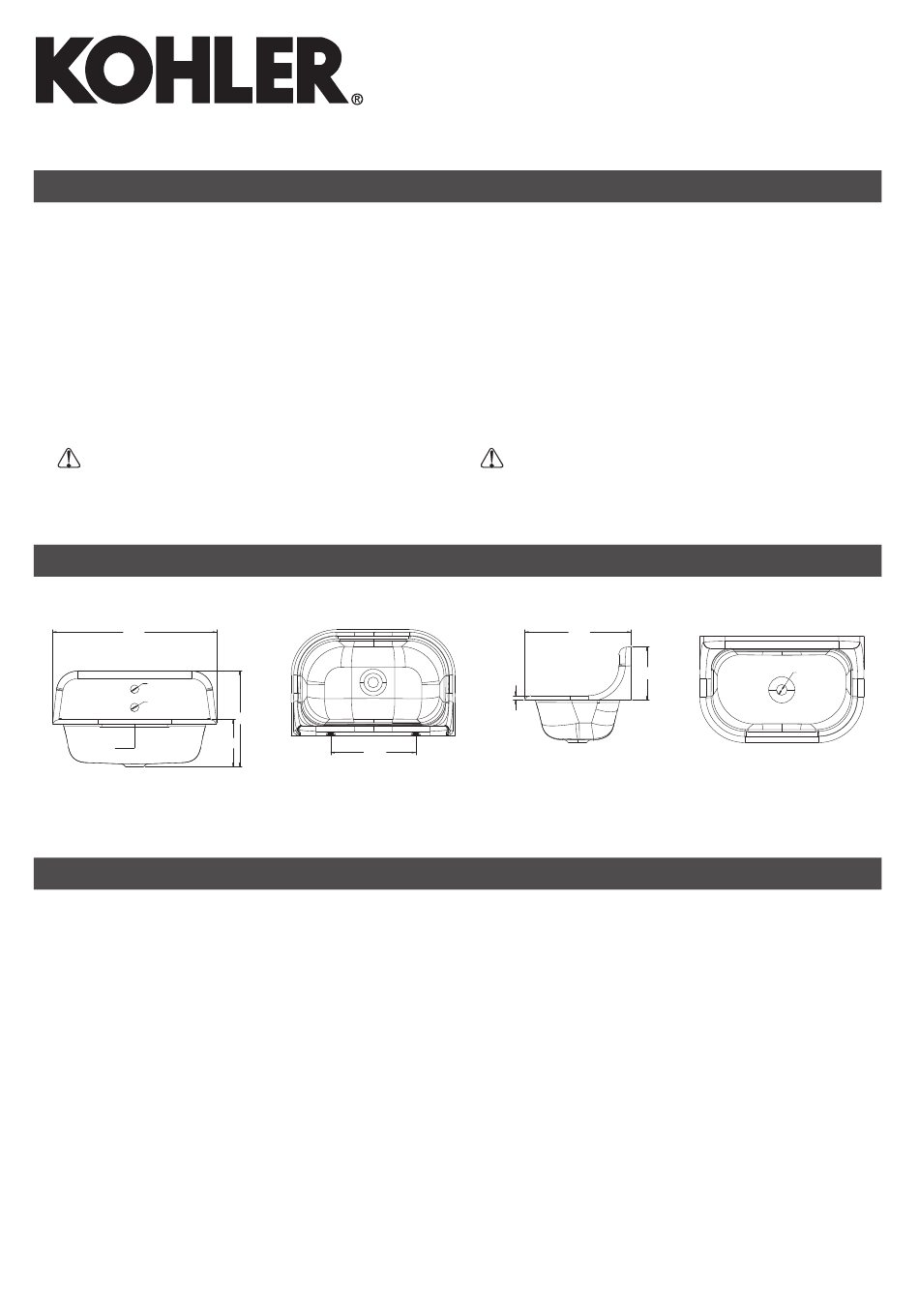

ROUGHING-IN ROUGHING-IN
Reference Value
参考值
686
35
35
PRODUCT REQUIREMENTS PRODUCT REQUIREMENTS
A. Summary Of Key Requirements

Please follow local pipeline drainage construction requirements.

For a wall-mount cast iron lav, hooks need to be installed on the
vertical wall.

To facilitate assembly, the two USS metric adaptors in the
packaging must be used.

It is recommended to install Kohler K-7119T-CP and K-7120T-CP
popup drains. Drains must be fitted with the rubber ring inside the
packaging.
B. Product Inspection
• Carefully open the packaging of the lav and check for any damage
to the lav. Leave all materials in the crate during construction to
prevent damage.
• Carefully open the accessory cartons and remove the components
and hardware pack.
• If any damage is observed, please do not install the lav and its
accessories. Report the specific problem to your dealer.
1334659-T01-B
400
197
355
Bottom View
底视图
K-20821T
Kohler reserves the right to change marked dimensions without prior notice.
科勒公司保留随时变更图中标示尺寸的权利，无需另行通知。
SHANGHAI KOHLER LTD., N0.368, MIN LE ROAD,
FENG XIAN DISTRICT, SHANGHAI, CHINA POST CODE 201419
上海科勒有限公司 上海市奉贤区民乐路368号 邮编：201419
BROCKWAY 铂克维
安装之前
A. 引言
 请仔细阅读此说明书以熟悉所需要的工具、材料及安装顺序。遵循
适合您的特定安装要求的各项内容，避免昂贵的损失。除了要正确
安装外，还应阅读操作及安全说明。
 所有的资料是按最新出版的产品资料编写而成。科勒公司保留任何
时候无须通知即可改变产品特性、包装或产品可供类型的权利。
 安装说明包括重要的安装、清洁及保养方面的内容，请把这些资料
交给用户阅读。
B. 安装人员危险警告
小心！！避免人员受伤。
铸铁台盆非常重，需要至少2人协助完成。在安装时，有夹手
风险，一定要穿戴合适的安全装备。
尺寸图
444
19
产品要求
A. 关键要求的总结
 请遵守当地管道给排水施工要求。
 挂墙铸铁盆在需在垂直墙面上安装挂钩。
 为保证龙头装配，必须使用包装箱内两个美制转公制转接头。
 推荐安装科勒K-7119T-CP和K-7120T-CP两款弹跳式落水。落水
需与包装箱内橡胶圈配合安装。
B. 产品检查
 小心地打开台盆包装箱并检查台盆是否损坏。施工期间将所有的材
料都留在箱内，以防止损坏。
 小心地打开配件包装箱并检查其是否损坏，取出组件及五金配件包。
 如果观察到任何损坏，请勿安装台盆和配件。将问题告知经销商。
