Kohler PINOIR K-2015 Manual

Kohler PINOIR K-2015 Manual

Vitreous china pedestal lavatory
Hide thumbs Also See for PINOIR K-2015:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
R
BEFORE YOU BEGIN
NOTES
S
Observe all local plumbing and
building codes.
S
Prior to installation, unpack the
new lavatory and inspect it for
damage. Return the lavatory to its
protective carton until you are
ready to install it.

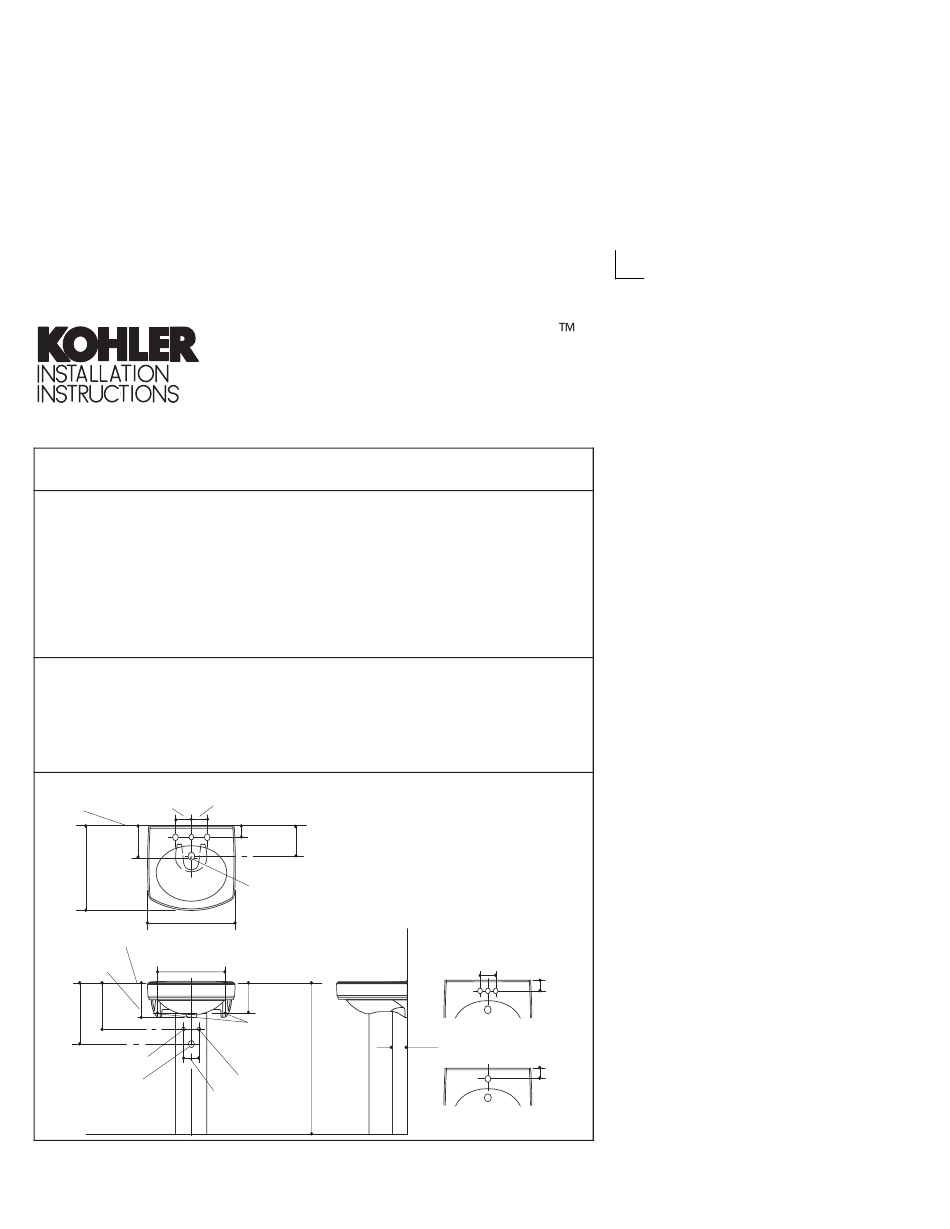

ROUGHING-IN
(S) 10" (25.4cm) (Based on 12" (30.5cm)
risers which may require cutting).
(T) Pop-up drain typically 13-1/8"
(33.3cm).
K-2015-8
FINISHED
4" (10.2cm)
WALL
4" (10.2cm)
6-3/4"
(17.1cm)
18"
(45.7cm)
FAUCET
22" (55.9cm)
SHELF
7-1/2"
14-7/8" (37.8cm)
(19.1cm)
(S)
(T)
3/8" HOT
1-1/4"
OUTLET
4"
(10.2cm)
FINISHED
FLOOR
A
1010427-2-
VITREOUS CHINA
PEDESTAL LAVATORY
S
These instructions are for installing
the lavatory to wood frame
construction. For other
installations, supply suitable
bracing and fastening devices of
sufficient size and strength.
S
The walls and floor must be
square, plumb, and level.
Fixture dimensions are nominal and
conform to tolerances in ASME Standard
A112.19.2M.
2-5/16"
6-3/8"
(5.9cm)
(16.2cm)
3/8" D. MOUNTING
HOLE IN PEDESTAL
6-1/2"
(16.5cm)
1/2" D.
ANCHOR
3-3/4"
33"
HOLES
(9.5cm)
(83.8cm)
3/8" COLD
Español, Página 5
Français, Page 9
PINOIR
K-2015
K-2015-4
4" (10.2cm)
2-5/16"
(5.9cm)
K-2015-1
2-5/16"
(5.9cm)
1 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PINOIR K-2015 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kohler PINOIR K-2015

Summary of Contents for Kohler PINOIR K-2015

  • Page 1 PINOIR VITREOUS CHINA PEDESTAL LAVATORY K-2015 BEFORE YOU BEGIN NOTES These instructions are for installing Observe all local plumbing and the lavatory to wood frame building codes. construction. For other Prior to installation, unpack the installations, supply suitable new lavatory and inspect it for bracing and fastening devices of damage.

  • Page 2: Tools And Materials Required

    Here Center of hole on the wall, and mark the floor Anchoring through the hole in the pedestal Holes bottom. Carefully remove the lavatory from the pedestal. Then move the pedestal from the area. 1010427-2- Kohler Co., Kohler, WI U.S.A.
  • Page 3 Secure the pedestal to the floor with the wood screw and washer. Wood Screw Tighten the wood screw until it is snug. Washer CAUTION: Risk product damage overtighten. Overtightening may cause damage to the product. Kohler Co., Kohler, WI U.S.A. 1010427-2-...

  • Page 4: Important Consumer Information

    First review the installation instructions to ensure correct installation. For additional assistance in the USA, call our Customer Service Department for direct help. You may also contact us at our web site listed below. Call 1-800-4-KOHLER within the U.S. Call 001-877-680-1310 within Mexico Call 1-800-964-5590 within Canada www.kohlerco.com...

  • Page 5: Antes De Comenzar

    14-7/8” (37,8cm) 4”(10,2cm) 7-1/2” (19,1cm) 2-5/16” 6-1/2” (5,9cm) (16,5cm) HOYOS DEL 3-3/4” SUJETADOR K-2015-1 (9,5cm) 33” DE 1/2” DE 3/8” CALIENTE 2-5/16” (83,8cm) DI M. (5,9cm) Salida de 3/8” FRÍA PISO 1-1/4” 4” (10,2cm) ACABADO Kohler Co., Kohler, WI U.S.A. 1010427-2-...

  • Page 6: Herramientas Ymateriales Requeridos

    Con cuidado, remueva el lavabo del pedestal. Luego, remueva el pedestal de su posición. 1010427-2- Kohler Co., Kohler, WI U.S.A.
  • Page 7 Fije el pedestal al piso con el Tornillo para tornillo para madera y la arandela. madera Fije el tornillo para madera. Arandela PRECAUCIÓN: Riesgo de daños al producto No asegure en exceso. El asegurar en exceso puede dañar el producto. Kohler Co., Kohler, WI U.S.A. 1010427-2-...
  • Page 8 Si no logra solucionar el problema, llame al Departamento de Atención al Cliente para obtener asistencia directa. También puede localizarnos en la página web escrita abajo. Llame al 1-800-4-KOHLER (En los Estados Unidos) Llame al 001-877-680-1310 (En México) Llame al 1-800-964-5590 (En Canadá) www.kohlerco.com...

  • Page 9: Avant De Commencer

    DANS LA COLONNE K-2015-4 ROBINET 14-7/8po (37,8cm) 4po (10,2cm) 7-1/2po (19,1cm) 2-5/16po 6-1/2po (5,9cm) (16,5cm) 1/2po D. 3-3/4po TROUS K-2015-1 (9,5cm) D’ANCRAGE 33po 3/8po CHAUD 2-5/16po (83,8cm) (5,9cm) SORTIE 3/8po FROID 1-1/4po PLANCHER 4po (10,2cm) FINI Kohler Co., Kohler, WI U.S.A. 1010427-2-...

  • Page 10: Outils Et Matériaux Requis

    à travers l’ouverture du d’ancrage bas de la colonne. Enlever le lavabo du dessus de la colonne. Retirer la colonne de la zone de travail. 1010427-2- Kohler Co., Kohler, WI U.S.A.
  • Page 11 à bois et la rondelle. Vis à bois Serrer la vis à bois jusqu’à ce qu’elle soit en appui. Rondelle ATTENTION Risque d’endommagement du produit. Ne pas trop serrer. Le serrage excessif peut endommager produit. Kohler Co., Kohler, WI U.S.A. 1010427-2-...
  • Page 12 Revoir d’abord la notice d’installation pour s’assurer d’une installation correcte. Pour toute assistance additionnelle, contactez notre département de service à la clientèle. Vous pouvez aussi nous joindre sur notre site Web à l’adresse donnée ci-dessous. Aux É.-U., composer le 1-800-4-KOHLER Au Mexique, composer le 001-877-680-1310 Au Canada, composer le 1-800-964-5590 www.kohlerco.com...
