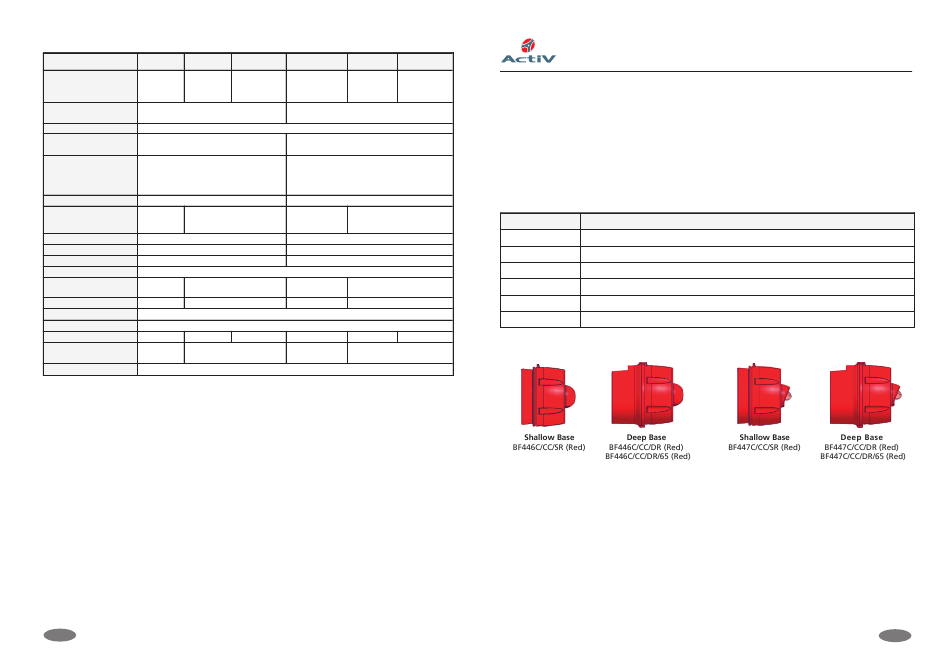

ActiV BF446C/CC/SR Installation Instructions

Technical Specification
Part Number: BF446C/CC/SR BF446C/CC/DR BF446C/CC/DR/65
Hi-Output Hi-Output
Voice Sounder, Voice Sounder,
Description:
Shallow Base, Deep Base,
Red Enclosure Red Enclosure
Relevant Standards: EN 54-3 (Sounders)
Supply Voltage:
(1) Imax: 25 mA *
8 mA @ 18 Vdc *
(2) Ityp:
10 mA @ 30 Vdc *
Power @30 Vdc: 750 mW
Environment Type Type A
(EN 54-3/23): (EN 54-3) (EN 54-3)
VAD Cat. (EN 54-23) (W-Class): N/A
VAD Temporal Pattern: N/A
Cuboid Volume (W-Class): N/A
Peak SPL at Vmax:
108.3 mm dia., 114 mm diameter,
Dimensions (including base):
99.5 mm deep 131.5 mm deep
Weight: 215 g
Mounting Type:
Body Material / Colour:
IP Rating (EN 60529): IP21C IP33C
-10 o C to +55 o C -25
Operating Temperature:
(Type A)
Humidity:
(1) Imax - Maximum start surge, maximum running pulse current. Ensure that Imax current for all devices on the sounder
circuit does not exceed the current limitations of the fire alarm panel.
(2) Ityp - Average running current.
* @ maximum volume level.
± 3 dB(A) when sounder set to PRIMARY TONE 1.
**
www.acornfiresecurity.com
BF447C/CC/SR BF447C/CC/DR BF447C/CC/DR/65
Hi-Output Voice Hi-Output Voice Hi-Output Voice Hi-Output Voice
Sounder, Deep Sounder VAD, Sounder VAD,
Base, Red Shallow Base, Deep Base, Deep Base, Red
Enclosure IP55C Red Enclosure Red Enclosure Enclosure IP55C
EN 54-3 (Sounders)
EN 54-23 (VAD)
18 to 30 Vdc
38 mA (0.5 Hz) *
55 mA (1 Hz) *
17 mA @ 30 Vdc (0.5 Hz) *
24 mA @ 30 Vdc (1 Hz) *
18.5 mA @ 18 Vdc (0.5 Hz) *
30 mA @ 18 Vdc (1 Hz) *
1.14 W
Type B Type A Type B
(EN 54-3 & EN 54-23) (EN 54-3 & EN 54-23)
W-2.4-8.2 / W-4-4
1.0 / 0.5 Hz synchronised
161.5 m 3 / 64 m 3
100 dB(A) @ 1 m ** synchronised
108.3 mm dia., 114 mm diameter,
99.6 mm deep 131.6 mm deep
300 g 230 g 315 g
Wall
Polycarbonate RAL 3001 Signal Red
IP55C IP21C IP33C
o C to +55 o C -10 o C to +55 o C -25 o C to +55
(Type B) (Type A) (Type B)
Max. 95% RH (non-condensing)
www.acornfiresecurity.com
Hi-Output Voice Range
Installation Instructions
Sounder VAD,
Product Description
The ActiV Hi-Output range of conventional voice sounders and combined voice sounder visual
alarm devices (VADs) are designed for use with C-TEC's range of conventional fire panels (CFP,
FP/ MFP, EP203) and other compatible third-party panels. However, compatibility testing with
third-party panels is recommended to ensure correct operation.
With a 100 dB(A) peak sound output @ 1 m, their purpose is to visually and audibly alert building
occupants of a fire alarm. Units are supplied with either a shallow or deep base, in a red plastic
enclosure.
The following variants are available:
Part Number
BF446C/CC/SR
BF446C/CC/DR
BF446C/CC/DR/65
BF447C/CC/SR
BF447C/CC/DR
BF447C/CC/DR/65
IP55C
CONVENTIONAL VOICE SOUNDERS
o C
The devices offer low current consumption, high sound output, high efficiency VADs, four
selectable tones, two selectable evacuation voice messages, two selectable volume levels and
three selectable VAD flash rates. Tones, messages, volume levels and VAD flash rates are selected
using the device's 8-way DIP switch.
All devices are designed to comply with the relevant sections of the fire alarm device standards
EN 54-3 (Sounders) and EN 54-23 (Visual alarm devices - VADs).
Conventional Audio Visual Devices
BF446C/CC/SR, BF446C/CC/DR, BF446C/CC/DR/65
BF447C/CC/SR, BF447C/CC/DR, BF447C/CC/DR/65
Description
ActiV Conventional Hi-Output Voice Sounder, Shallow Base, Red Enclosure, IP21C
ActiV Conventional Hi-Output Voice Sounder, Deep Base, Red Enclosure, IP33C
ActiV Conventional Hi-Output Voice Sounder, Deep Base, Red Enclosure, IP55C
ActiV Conventional Hi-Output Voice Sounder VAD, Shallow Base, Red Enclosure, IP21C
ActiV Conventional Hi-Output Voice Sounder VAD, Deep Base, Red Enclosure, IP33C
ActiV Conventional Hi-Output Voice Sounder VAD, Deep Base, Red Enclosure, IP55C
CONVENTIONAL VOICE SOUNDER VADs
