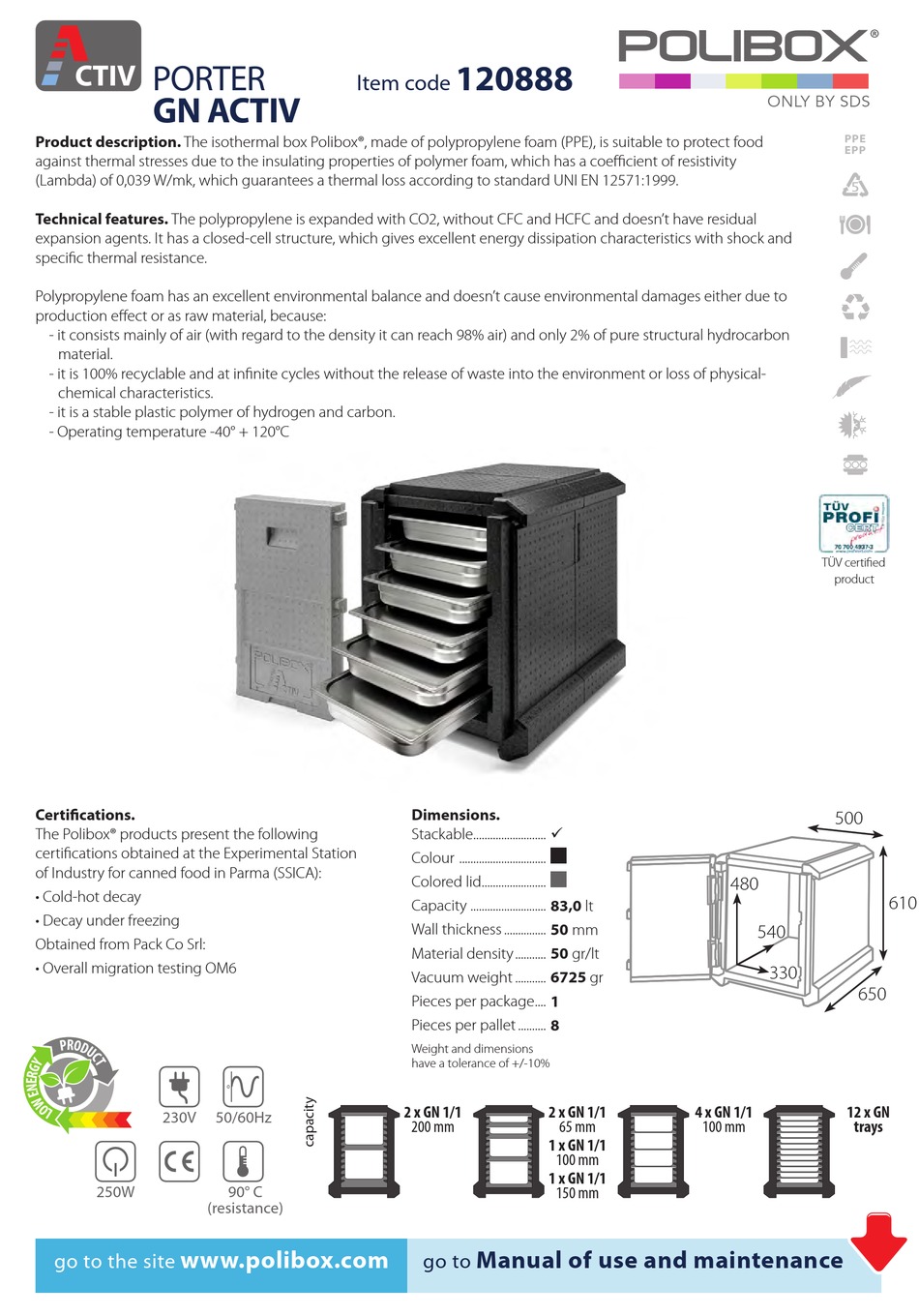

ActiV POLIBOX 120888 Quick Start Manual

PORTER
GN ACTIV
Product description. The isothermal box Polibox®, made of polypropylene foam (PPE), is suitable to protect food
against thermal stresses due to the insulating properties of polymer foam, which has a coefficient of resistivity
(Lambda) of 0,039 W/mk, which guarantees a thermal loss according to standard UNI EN 12571:1999.
Technical features. The polypropylene is expanded with CO2, without CFC and HCFC and doesn't have residual
expansion agents. It has a closed-cell structure, which gives excellent energy dissipation characteristics with shock and
specific thermal resistance.
Polypropylene foam has an excellent environmental balance and doesn't cause environmental damages either due to
production effect or as raw material, because:
- it consists mainly of air (with regard to the density it can reach 98% air) and only 2% of pure structural hydrocarbon
material.
- it is 100% recyclable and at infinite cycles without the release of waste into the environment or loss of physical-
chemical characteristics.
- it is a stable plastic polymer of hydrogen and carbon.
- Operating temperature -40° + 120°C
Certifications.
The Polibox® products present the following
certifications obtained at the Experimental Station
of Industry for canned food in Parma (SSICA):
• Cold-hot decay
• Decay under freezing
Obtained from Pack Co Srl:
• Overall migration testing OM6
230V
250W
(resistance)
www.polibox.com
go to the site
Item code
0
50/60Hz
90° C
120888
Dimensions.
Stackable .......................... 
Colour ...............................
Colored lid .......................
Capacity ........................... 83,0 lt
Wall thickness ............... 50 mm
Material density ........... 50 gr/lt
Vacuum weight ........... 6725 gr
Pieces per package .... 1
Pieces per pallet .......... 8
Weight and dimensions
have a tolerance of +/-10%
2 x GN 1/1
2 x GN 1/1
200 mm 65 mm
1 x GN 1/1
100 mm
1 x GN 1/1
150 mm
Manual of use and maintenance
go to
ONLY BY SDS
PPE
EPP
TÜV certified
product
500
480
540
330
650
12 x GN
4 x GN 1/1
trays
100 mm
610
