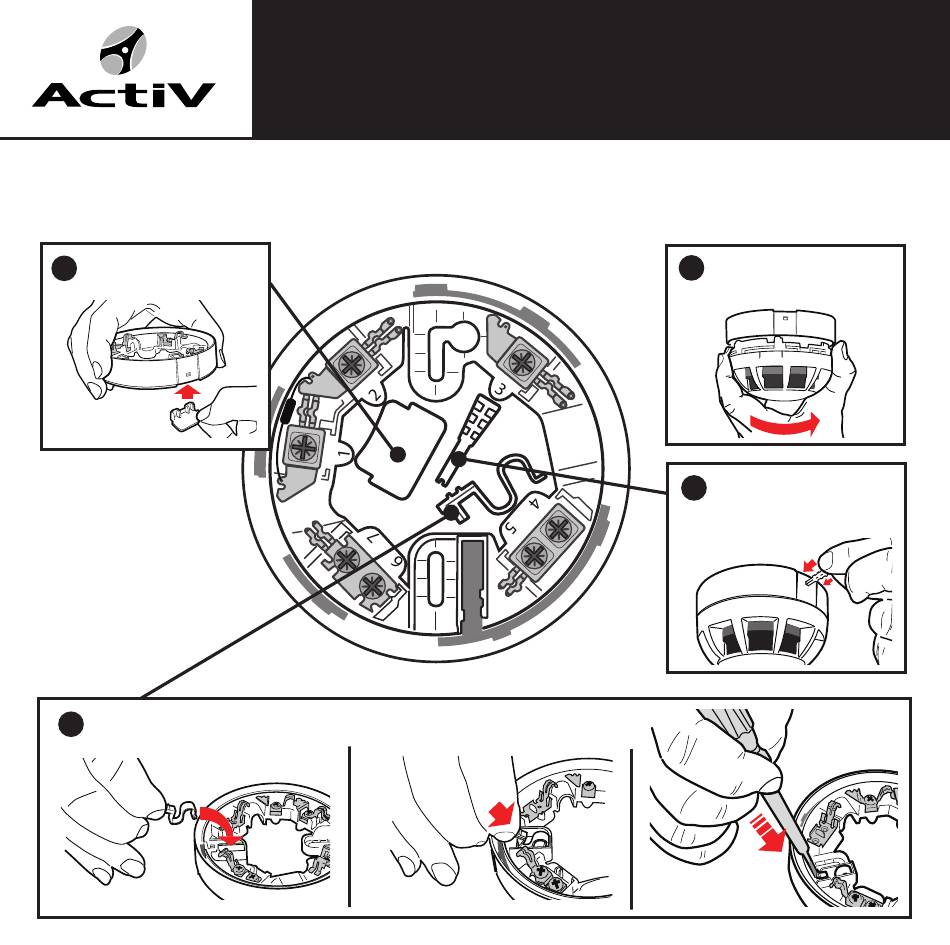

Remove the optional identification and security tags from the centre of the
base and use as shown in steps 1, 2 & 4. See overleaf for wiring details.
Fit the ID tag
1
Fit the head-base locking mechanism (optional)
2
www.acornfiresecurity.com

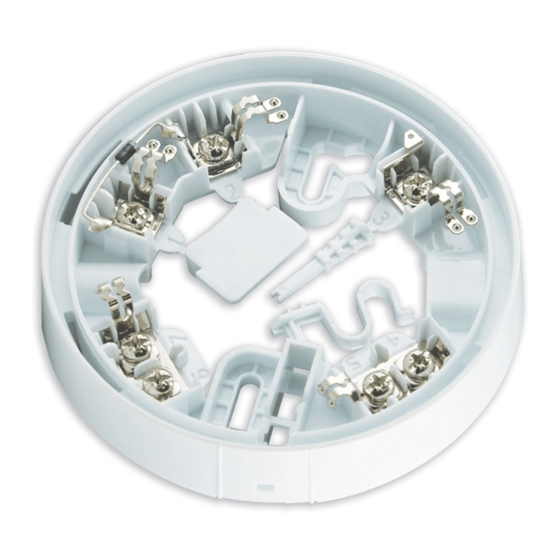

C4408 DETECTOR BASE
C4408D DETECTOR BASE WITH DIODE
www.acornfiresecurity.com
DFU0000408 Rev 1
Fit the
3
detector head
Unlocking the
4
detector head
