KMC Controls SimplyVAV STE-8001 Series Installation Manual

7O
12O2
Set
Point
STE-8001*
This installation sheet applies to SimplyVAV digital
wall sensors connected to SimplyVAV controllers. For
additional information on the SimplyVAV products,
browse to the KMC Controls website
other resources.
Choosing a sensor location
Install the sensor on an inside wall where it can sense
the average room temperature. Avoid locations with
direct sunlight, heat sources, windows, air vents,
and air circulation obstructions such as curtains or
furniture.
For models with motion sensing, see the topic on the
following page, Planning for motion sensing.
Rough-in preparation
Complete rough-in wiring at each sensor location
prior to sensor installation. This includes the following
items.
◆
If required, install an appropriate backplate.
◆
Route an Ethernet connecting cable from the
sensor to the controller location.
◆
Maximum cable length is 75 feet (22.9 meters).
Plenum-rated preassembled cables are
recommended.
Ethernet
connecting cable
Maximum 75 feet
or 22.9 meters
7O
12O2
Set
Point
STE-8201*
for videos and
Mounting
base
Allen
screws

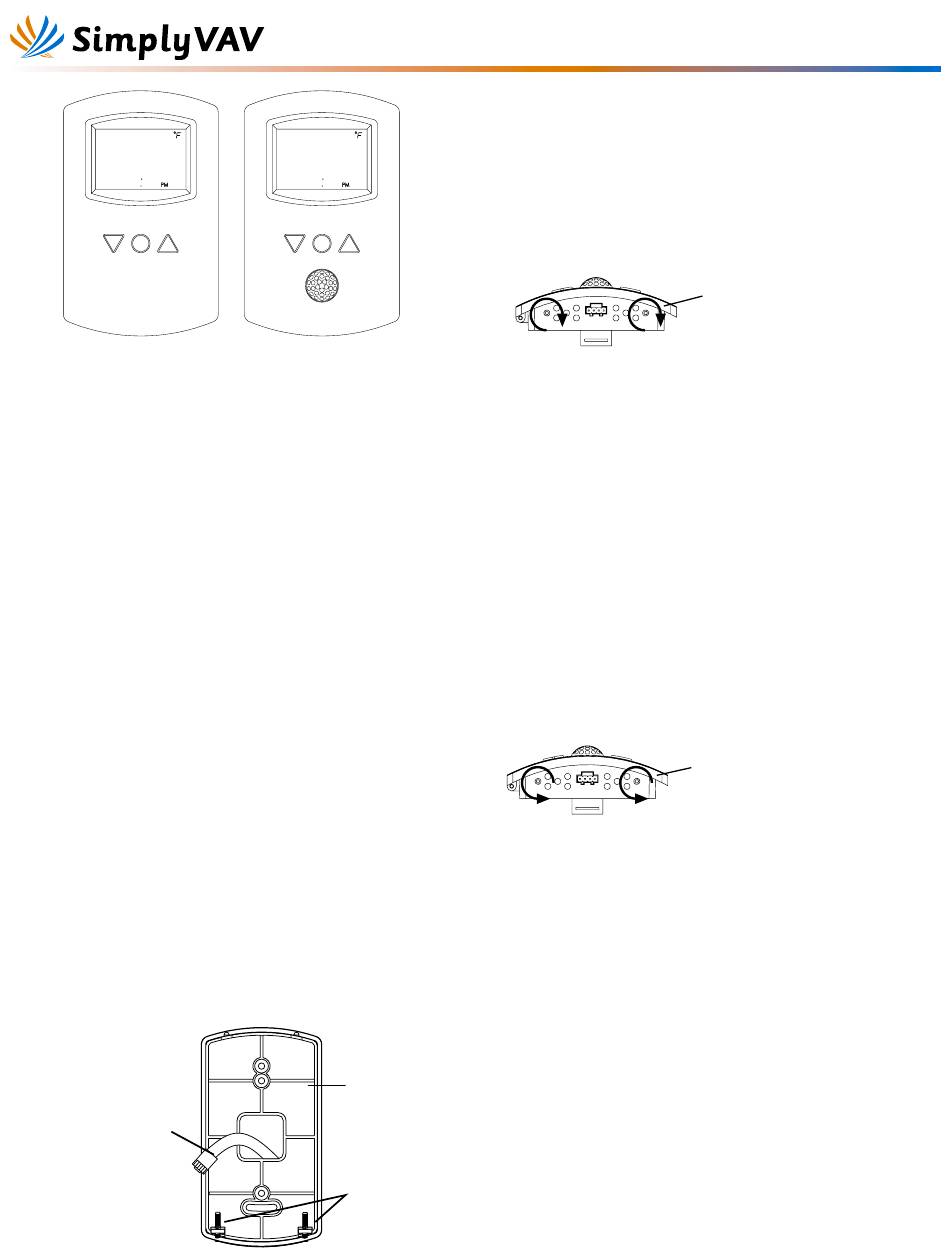

Installation Guide for SimplyVAV Sensors
Mount the sensors
To install the sensor on a mounting base, do the
following:
1. Turn the Allen screws in the base of the sensor
clockwise until they clear the case. Swing the
sensor away from the mounting base to remove it.
2. Route the Ethernet cable through the mounting
base.
3. Fasten the mounting base directly to a 2 x 4 inch
outlet box or a backplate with the Allen screws
toward the floor.
4. Insert the Ethernet cable coming from the base
into the sensor.
5. Place the top of the sensor over the top of the
mounting base and swing it down over the Allen
screw brackets. Be careful not to pinch any wiring.
6. Turn the Allen screws counterclockwise until they
back out of the mounting base and engage the
case of the sensor.
Operation
The sensor will become operational as soon as it
is connected to an operational controller. See the
following pages to change room setpoints or configure
a SimplyVAV controller with the sensor.
Maintenance
Remove dust as necessary from holes in top and
bottom. Clean the display with soft, damp cloth and
mild soap.
*NOTE: The home display shows time after a BACnet
time synchronization command is initiated using
hardware or software (e.g. a BAC-5051E router, KMC
Connect, KMC TotalControl, KMC Commander, etc.).
Turn clockwise to
remove from base.
Turn counterclockwise
until the screws engage
the case.
