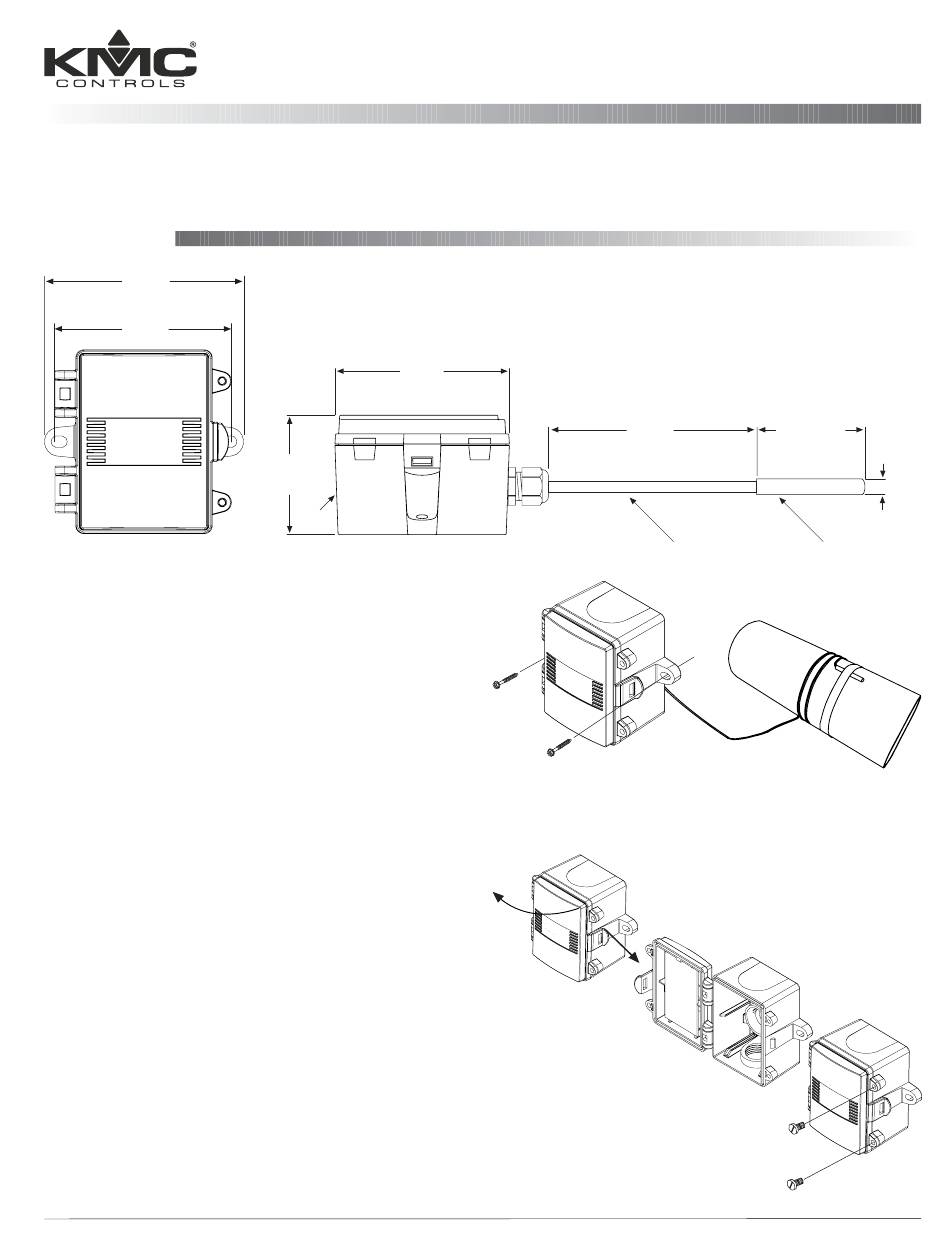

Mounting
82.5 mm
3.25"
69.8 mm
2.75"
These models are designed for monitoring fluid tem-
peratures in situations where an immersion sensor
cannot be used. Mount the probe in direct physical
contact with the pipe and under the pipe insulation.
1. From the probe area, remove any pipe insulation
and clean the exterior of the pipe to ensure good
contact and heat transfer.
NOTE: For best results, apply thermal conductive
compound (e.g., HMO-4532) to the pipe
underneath the sensor.
2. Place the sensor probe in direct contact with the
pipe and attach the probe to the pipe using a
metal worm gear strap or cable ties.
3. Wind any extra lead length around the pipe for
extra security.
4. Wrap or replace insulation around the sensor to
reduce the effect of ambient air temperature.
NOTE: The STE-1455 does not include an
enclosure.
5. For the STE-1454, open the cover by pulling
slightly on the latch on the right side of the
enclosure while pulling on the cover.
6. Feed the wire leads through the provided hole in
the enclosure and secure them.
7. Mount the enclosure in a suitable location close to
the probe.
STE-1454/1455
Installation Guide
76.2 mm
3.00"
52.0 mm
2.05"
0.5" NPT
Temperature Sensor, Strap-On
1.524 m
5.00'
1
STE-1454/1455
50.8 mm
2.00"
22 AWG, PVC Insulation 304 Series S/S Probe
Installation Guide
6.0mm
0.236"
