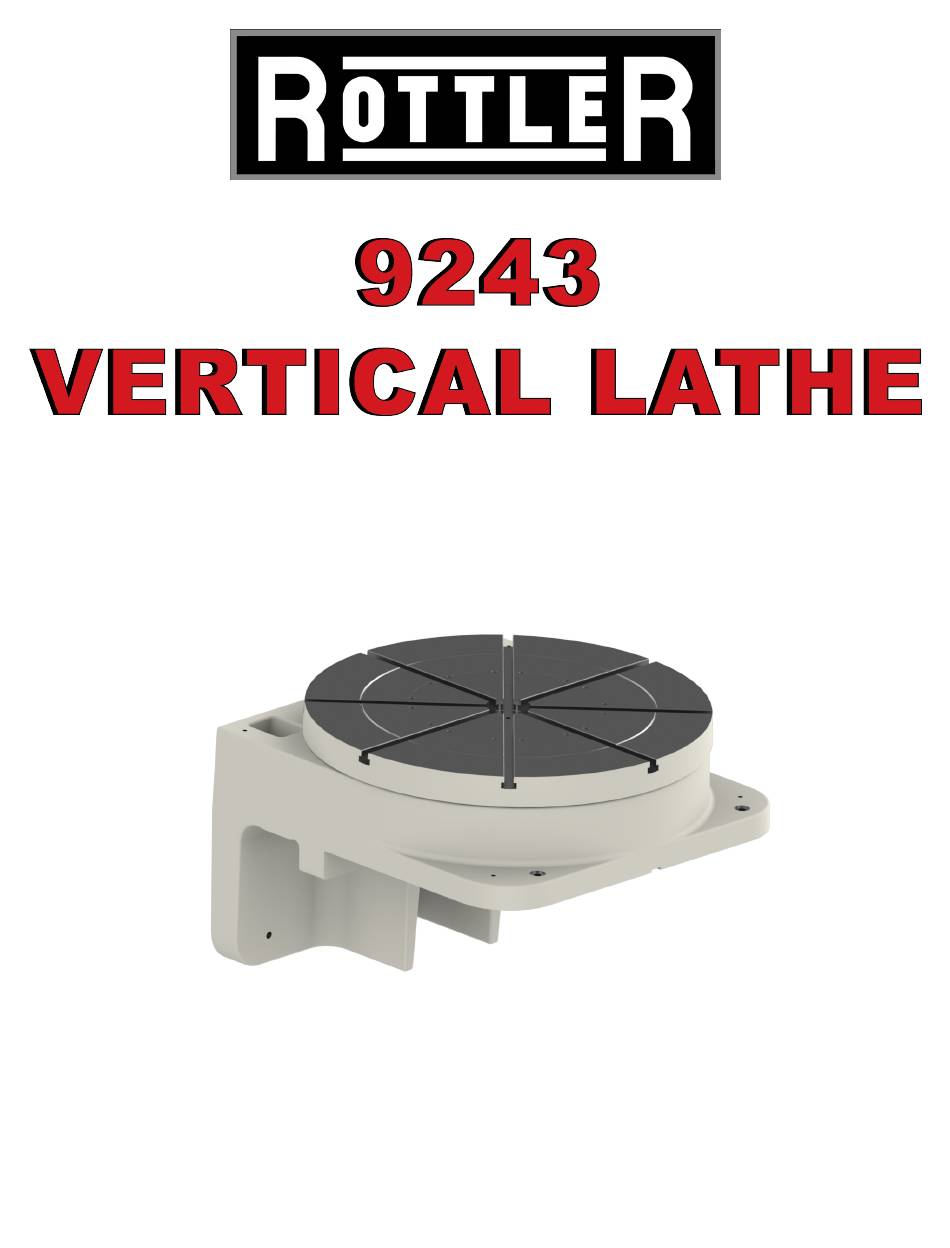

- Page 1 OPERATION AND MAINTENANCE MANUAL 8029 S 200th St. Kent, WA 98032 USA | www.rottlermfg.com | Ph: 253-872-7050 | Fax: 253-395-0230 21.10.2019...
-
Page 2: Safety Information
Section 1 Safety 9243 Vertical Lathe SAFETY Safety Information For Your Own Safety Read This Instruction Manual Before Operating This Machine. This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. - Page 3 DO NOT MODIFY OR ALTER THIS EQUIPMENT in any way. If modifications are deemed necessary, all such requests must be approved and/or handled by Rottler Manufacturing. Unauthorized modifications could cause injury and/or damage to machine and will void the warranty.
- Page 4 Section 1 Safety 9243 Vertical Lathe When boring the machine is capable of throwing metal chips over 10- feet from the cutting area. Always use the guards. Eye protection must be worn at all times by the operator and all other personnel in the area of the machine.
-
Page 5: Section 2 Operation
Section 2 Operation 9243 Vertical Lathe Operation of Vertical Lathe Basic machine controls Command lines You can either use it for a turning operation with live tooling or single point cutter. Or it can be used as an indexer for drill and tap holes or milling operation. The two command lines that you can use in the R-cam are Turn C and Rotate C. - Page 6 Section 2 Operation 9243 Vertical Lathe www.rottlermfg.com...
-
Page 7: Section 3 Maintenance
9243 Vertical Lathe 9243 Vertical Lathe Maintenance Guide Rottler recommends the bearing should be greased every three months in normal usage. The bearing manufacturer recommends that the greasing be carried out during rotation at slow speed. Slowly apply and complete a minimum of five rotations. - Page 8 Section 4 Parts 9243 Vertical Lathe www.rottlermfg.com...
