PARTS ORDERING https://www.rottlermfg.com/documentation.php For optional equipment catalogs, please visit For fastest service ordering parts or equipment, contact us via e-mail with the information below. For customers within the U.S., send emails to parts@rottlermfg.com, for customers outside of the U.S., use intlparts@rottlermfg.com Have the following information on hand to expedite the ordering process: 1.
“Installation Report” located in the Installation Chapter of this manual. We suggest that the new user of the F9A & F10A read the CONTROL DEFINITIONS to get an idea how the F9A & F10A operates.

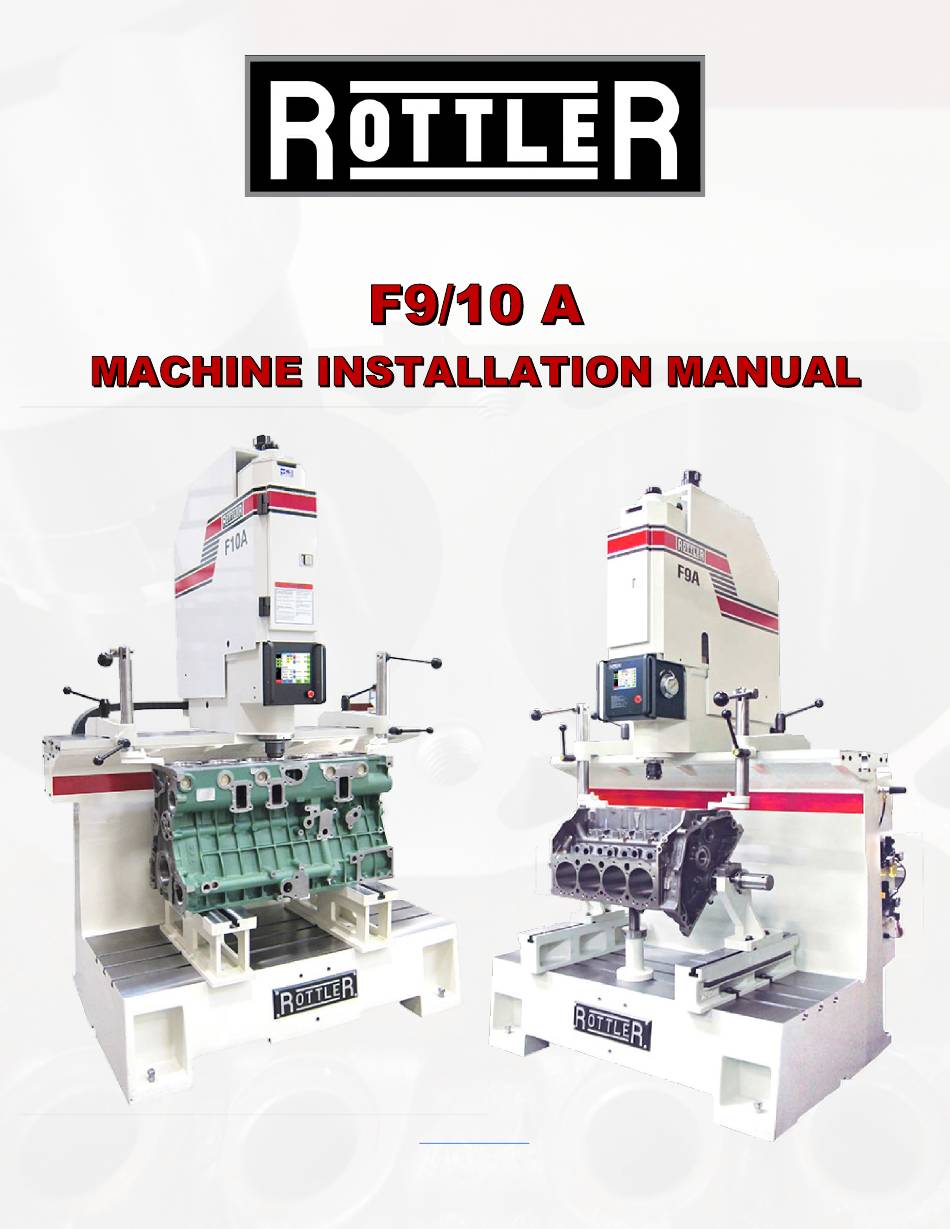

F9A & F10A Installation Manual Description The model F9A & F10A is a precision, single point high-speed boring unit. The F9A & F10A can be equipped with tooling and accessories for re-boring most American passenger car and truck engines, In-lines, as well as 90 and 60 degree V-types.
Should a product not be as warranted, Rottler sole obligation shall be, at its option, to repair, correct or replace the product or to refund the amounts paid for the Product upon its return to a location designated by Rottler.
F9A & F10A Installation Manual Online Documentation Access Online documentation for machines and optional equipment can be accessed at the Rottler website. To access documentation open your browser and navigate to https://www.rottlermfg.com. Scroll to the bottom of the page and under the Owner Resources title click the type of documentation you want to access.
Page 10
Section 1: Introduction F9A & F10A Installation Manual 8900 S 200 Street, Kent WA 98032 USA | www.rottlermfg.com | Ph: (253) 872-7050 | Fax: (253) 393-0230 Rev 010924...
Page 11
Section 2: Installation F9A & F10A Installation Manual INSTALLATION Contents INSTALLATION REPORT ....................2-2 Installation Procedure ....................2-8 Machine Installation ....................... 2-8 Location ............................2-8 Unpacking ............................2-8 Shipping and Hold Down ......................2-8 Leveling ............................2-8 Air Supply ..........................2-9 Power Supply ........................2-10 Grounding ..........................2-11 Transformer Connections……....................2-11...
Page 12
Section 2: Installation F9A & F10A Installation Manual ATTENTION OWNER/BUSINESS MANAGER To validate the warranty on your new Rottler machine, please be sure to sign the installation report after the installation technician has installed the machine and verified the machine is operating correctly and given the operators operation and maintenance training.
OFFICE USE ONLY Route to: Orders Notified _____ Eng Mgr_____ Srvc Mgr _____ Assem Mgr _____ Andy _____ Srvc Filing _____ Warranty Exp Date ________ ROTTLER MANUFACTURING MUST HAVE THIS REPORT RETURNED TO PROPERLY QUALIFY WARRANTY ON EQUIPMENT Customer:____________________________ Address:_______________________________________ City:_________________________________...
Page 14
Once the machine has been fully setup and is ready for operation create a Skype account for the machine following the instructions in the Installation Section of the manual. ______ Explain to the customer and the operator how the to log onto Skype and communicate with Rottler when needed. 8900 S 200 Street, Kent WA 98032 USA | www.rottlermfg.com...
Page 15
Explain machine parameters and error messages. It is very important that the customer does not change parameter settings without first checking with Rottler Manufacturing. If certain parameters are changed the machine may make uncontrolled move or not operate at all.
Page 16
Section 2: Installation F9A & F10A Installation Manual ______ Demonstrate and explain boring with the electronic hand wheel. ______ Fully demonstrate full and partial clamp force use. ______ Explain the correct Feed rates and speeds for carbide, R4, R2 coated tools and sleeve cuts.
Page 17
Any information regarding final dimensions and finishes that appears in any Rottler literature or that is expressed by anyone representing Rottler is to be regarded as general information to help with the demonstration of or for operator training of Rottler equipment.
Section 2: Installation F9A & F10A Installation Manual Installation Procedure Machine Installation Location The productivity of the F9/10A will depend a great deal on the proper initial installation. Pay particular attention to the means by which work pieces are lifted into and out of the machine as well as the material handling to and from other operations in your shop.
Section 2: Installation F9A & F10A Installation Manual Air Supply It is very important that the air source for the F9/10A be moisture free. Water and oil in the air lines will result in early cylinder and valve failure as well as introducing moisture into the Inner spindle bearings.
Section 2: Installation 2-10 F9A & F10A Installation Manual Power Supply This machine has the following power requirements: • 208 to 240 VAC • Single Phase Power • 50 or 60 Hz • 30 Amps • See illustration below for correct connection of incoming power. Measured power at the machine’s main breaker must be within the required range listed above.
Section 2: Installation 2-11 F9A & F10A Installation Manual Transformer Connections This machine has the following minimum transformer size requirement: • 10 kVA If a transformer is necessary for machine installation, please refer to the diagram below for connection information. Transformers must be sized to meet the minimum power requirements listed above.
Section 2: Installation 2-12 F9A & F10A Installation Manual Creating a Skype Account Click on create an account Click on: Use your email instead Click on: Get new email address 8900 S 200 Street, Kent WA 98032 USA | www.rottlermfg.com...
Page 23
Section 2: Installation 2-13 F9A & F10A Installation Manual Name the email account using the Rottler machine Model and Serial number. Ex: H85A111, EM69P001 Create a password that is easy to remember. Uncheck the box to receive emails from Microsoft.
Page 24
Section 2: Installation 2-14 F9A & F10A Installation Manual Type the code exactly as it appears. Click “Next” Click “Continue” If your headset and/or web camera are hooked up you can verify that they are working here. Otherwise, click “Continue”...
Page 25
Section 2: Installation 2-15 F9A & F10A Installation Manual Click “Add later” to skip this part. Your Skype account is set up and ready for use. 8900 S 200 Street, Kent WA 98032 USA | www.rottlermfg.com | Ph: (253) 872-7050 | Fax: (253) 393-0230...
