WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
•
Leave the building immediately.
•
Do not touch any electrical switch; do not use any
phone in your building.
•
Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
•
If you cannot reach your gas supplier, call the fire
department.
ISF24SB-SN ISF36SB-SN
ISF24SB-SP ISF36SB-SP
INSTALLER: Leave this manual with the appliance
CONSUMER: Retain this manual for future reference
Advertisement
Table of Contents
Related Manuals for EarthCore ISOFLAMES ISF24SB-SN
Summary of Contents for EarthCore ISOFLAMES ISF24SB-SN

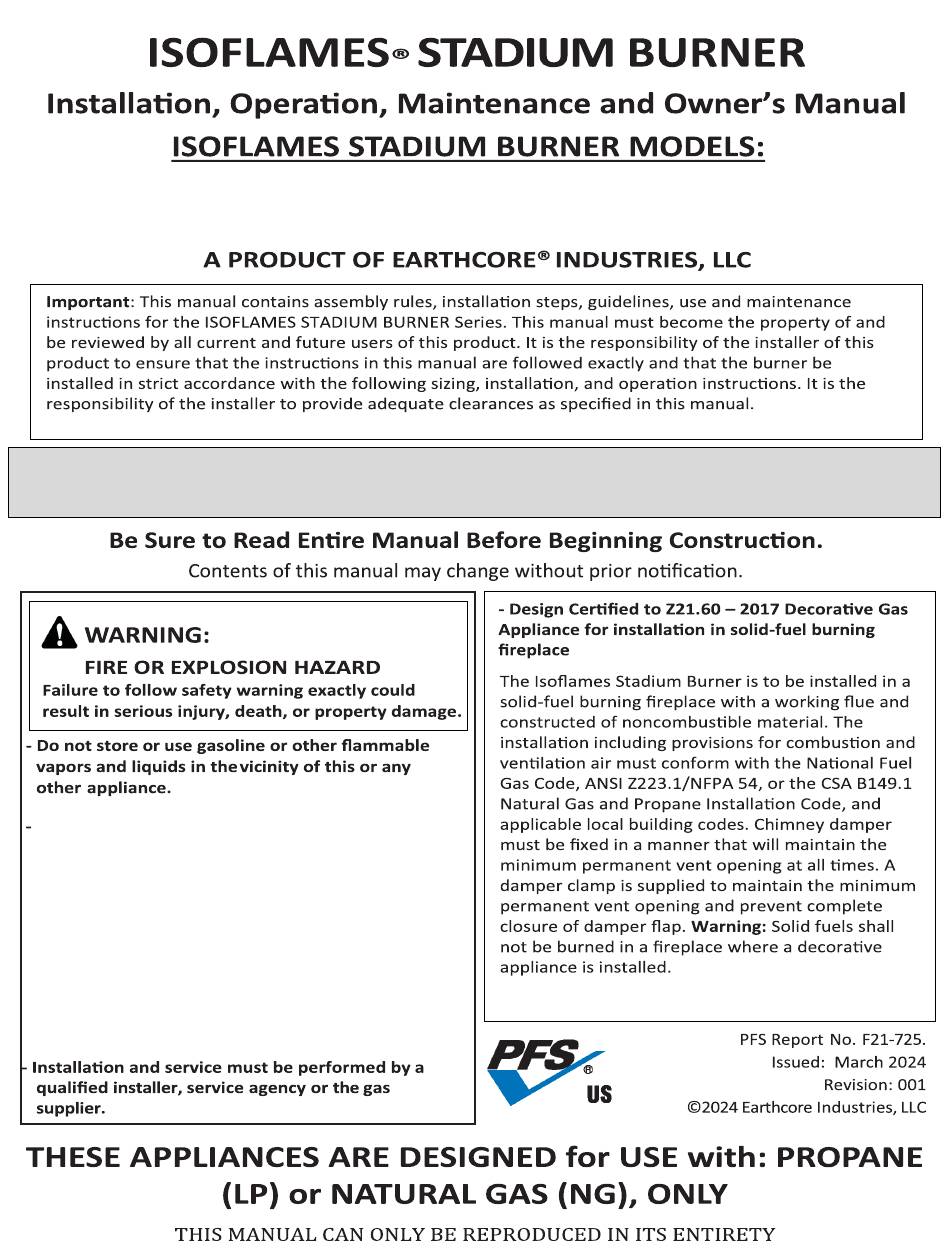

- Page 1 ISF24SB-SN ISF36SB-SN ISF24SB-SP ISF36SB-SP INSTALLER: Leave this manual with the appliance CONSUMER: Retain this manual for future reference WHAT TO DO IF YOU SMELL GAS • Do not try to light any appliance. • Leave the building immediately. • Do not touch any electrical switch; do not use any phone in your building.
-
Page 2: Table Of Contents
ISOFLAMES STADIUM BURNER MARCH 2024 Table of Contents Table of Contents ................................. 2 Isoflames Stadium Burner - Safety Instructions ........................ 3-5 Isoflames Stadium Burner – S Series Components List ......................6 Isoflames Stadium Burner - Specifications ........................... 7 Gas Line & Valve Box Installation ............................8 Valve Box &... -
Page 3: Isoflames Stadium Burner - Safety Instructions
MARCH 2024 ISOFLAMES STADIUM BURNER SAFETY INSTRUCTIONS WARNING!!!: This appliance assembly contains burner orifices specifically for the input gas specified on the burner and box, as well as the BTU rating specified in this manual. Modifying or failure to use the factory orifice may cause property damage, personal injury, or loss of life... - Page 4 ISOFLAMES STADIUM BURNER MARCH 2024 SAFETY INSTRUCTIONS...
- Page 5 These include pregnant women, people with heart or lung diseases or anemia, people at high altitude or under the influence of alcohol. Earthcore Industries strongly recommends the use of a carbon monoxide detector/alarm device wherever gas fired appliances are in use.
-
Page 6: Isoflames Stadium Burner - S Series Components List
ISOFLAMES STADIUM BURNER MARCH 2024 COMPONENT LIST Item No. Part Description Main Burner Assembly (natural gas) ISF24SB-SN, ISF36SB-SN Main Burner Assembly (propane) ISF24SB-SP, ISF36SB-SP Pilot Assembly (natural gas) ISF-E-PAN Pilot Assembly (propane) ISF-E-PAP Gas Valve (natural gas) ISF-E-GVN Gas Valve (propane) ISF-E-GVP Control module/remote receiver ISF-E-ICM... -
Page 7: Isoflames Stadium Burner - Specifications
MARCH 2024 ISOFLAMES STADIUM BURNER Isoflames Stadium Burner - Specifications Variable Flame Models Burner Specifications Minimum Fireplace Dimension (in) Width Nat. Gas L.P. Gas Burner Model Depth Height Front Rear High High ISF24SB ISF36SB... -
Page 8: Gas Line & Valve Box Installation
ISOFLAMES STADIUM BURNER MARCH 2024 GAS LINE & VALVE BOX INSTALLATION... -
Page 9: Valve Box & Burner Wiring Diagram
MARCH 2024 ISOFLAMES STADIUM BURNER VALVE BOX & BURNER WIRING DIAGRAM FIGURE 1 TABLE 1 INLET PRESSURE MANIFOLD PRESSURE FUEL TYPE HIGH DESIRED MINIMUM MAXIMUM FLAME FLAME NATURAL 7” WC 5” WC 10.5” WC 3.5” WC 1.6” WC LP GAS 11”... -
Page 10: Burner Installation
ISOFLAMES STADIUM BURNER MARCH 2024 BURNER INSTALLATION IMPORTANT: Prior to installation: Shut off main gas supply to fireplace. JUMP WIRE (step 9) screws PASS PILOT THROUGH KNOCKOUTS FROM UNDERSIDE OF THE BURNER FIGURE 5 FIGURE 6 FIGURE 8 FIGURE 7... -
Page 11: Remote Control System
MARCH 2024 ISOFLAMES STADIUM BURNER REMOTE CONTROL SYSTEM SYNCHRONIZE REMOTE TO CONTROL MODULE FOR THE FIRST TIME TURN ON THE APPLIANCE FIGURE 9 REMOTE FLAME CONTROL FIGURE 10... -
Page 12: Turn Off The Appliance
ISOFLAMES STADIUM BURNER MARCH 2024 REMOTE CONTROL SYSTEM TEMPERATURE INDICATOR DISPLAY FIGURE 11 TURN OFF THE APPLIANCE FLAME COLOR AND BEHAVIOR FIGURE 12 Continuous Pilot (CPI) & Intermittent Pilot (IPI) selection FIGURE 13... -
Page 13: Pre-Lighting Checklist
MARCH 2024 ISOFLAMES STADIUM BURNER BURNER LIGHTING INSTRUCTIONS PRE-LIGHTING CHECKLIST • • House is ventilated to clear initial paint curing odors. • • • • • • A. This appliance is equipped with an ignition device which automatically lights the pilot. Do NOT try to light the •... -
Page 14: Burner Media And Log Installation
ISOFLAMES STADIUM BURNER MARCH 2024 BURNER MEDIA AND LOG INSTALLATION Spread lava rock on the hearth floor of the fireplace around the front and sides of burner. DO NOT put lava rock directly on the burner OR behind it. Place embers along the pan section of the burner and spread evenly. Figure 15 It may be necessary to break large clumps into smaller pieces For LP models, vermiculite media must be used prior to using embers. - Page 15 MARCH 2024 ISOFLAMES STADIUM BURNER BURNER MEDIA AND LOG INSTALLATION 24” Weathered Oak Logs ① ② ③ ④ 36” Weathered Oak Logs ① ② ③ ④...
- Page 16 ISOFLAMES STADIUM BURNER MARCH 2024 BURNER MEDIA AND LOG INSTALLATION 24” Birch Logs ① ② ③...
- Page 17 MARCH 2024 ISOFLAMES STADIUM BURNER 36” Weathered Oak Logs ① ② ③ ④...
-
Page 18: Troubleshooting
ISOFLAMES STADIUM BURNER MARCH 2024 TROUBLESHOOTING Earthcore Industries Technical Support: 1-800-642-2920 Issue Probable Cause Possible Solution Verify power is ON No power Check wiring on ignition module and gas valve are correct No spark on pilot Verify ignitor not contacting pilot gas... -
Page 19: Registration Card
MARCH 2024 ISOFLAMES STADIUM BURNER REGISTRATION CARD Please tear out along line and send to: Earthcore Industries Attn: Technical Department 6899 Phillips Industrial Blvd Jacksonville, FL 32256 Dealer Date of Purchase: Date Of Installation: Address: City, State, Zip: Phone No.:... -
Page 20: Warranty
(3) address of installation; (4) name, address and phone number of the owner; and (5) a brief description of the defect. Earthcore, or any division thereof, is not responsible for any labor costs or indirect costs incurred for the replacement of defective components.
