2/2021

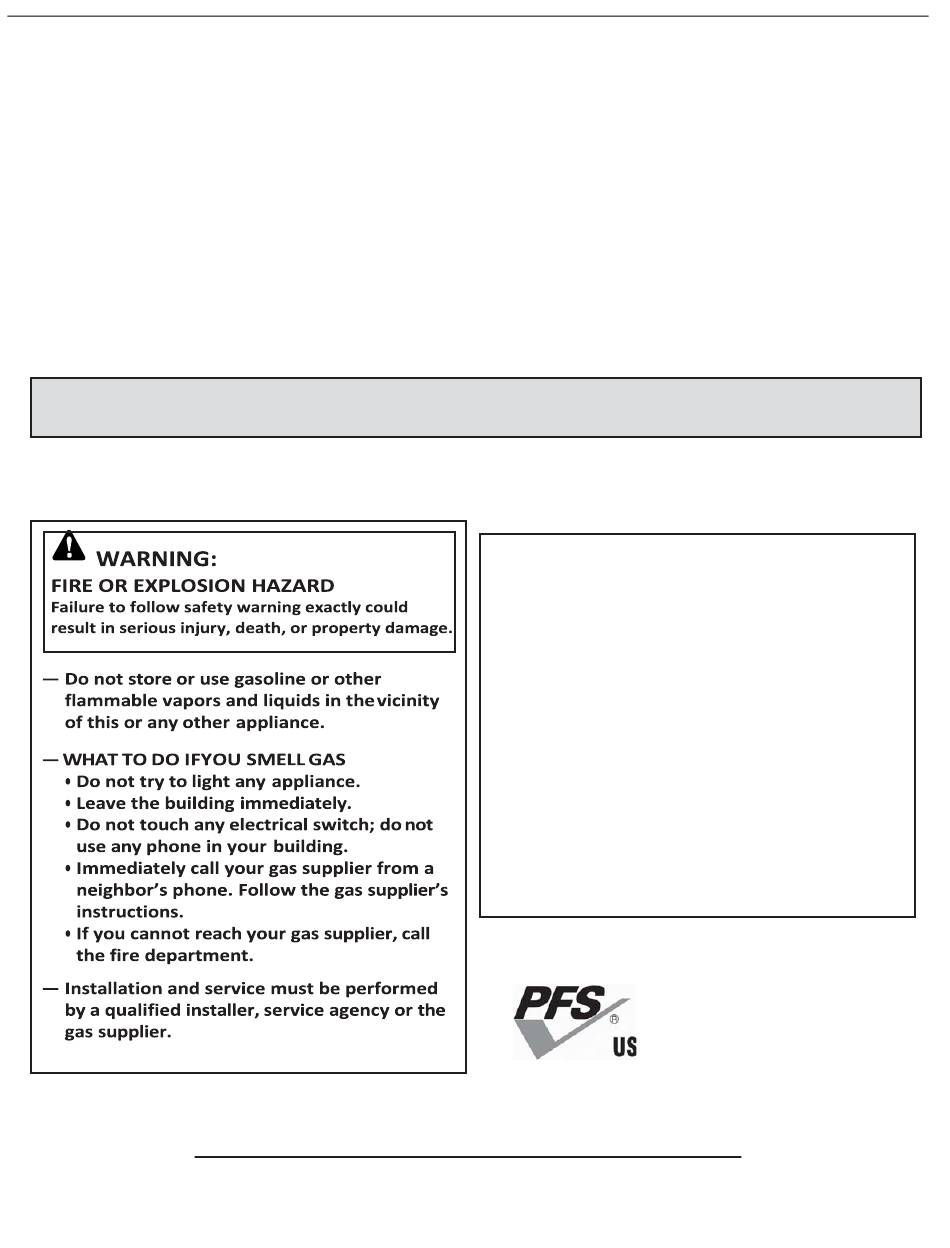

Important: This manual contains assembly rules, installation steps, guidelines, use and maintenance instructions for the
Isoflames Linear Burner Series. This manual must become the property of and be reviewed by all current and future users of
this product. It is the responsibility of the general contractor and the installer of this product to ensure that the instructions
in this manual are followed exactly and be installed in strict accordance with the following sizing, installation, and operation
instructions. It is the responsibility of the general contractor to provide adequate clearances from all firebox surfaces as
.
specified in this manual
Be Sure to Read Entire Manual Before Beginning Construction.
THESE FIREPLACES ARE DESIGNED FOR USE WITH:
ISOFLAMES® Linear Burner
Installation, Operation, Maintenance and Owner's Manual
Isokern Linear Burner Models:
ISF24LB - ISF36LB – ISF48LB
A PRODUCT OF EARTHCORE® INDUSTRIES, LLC
INSTALLER: Leave this manual with the appliance
CONSUMER: Retain this manual for future reference
Contents of this manual may change without prior notification.
PROPANE (LP) OR NATURAL GAS (NG), ONLY
THIS MANUAL CAN ONLY BE REPRODUCED IN ITS ENTIRETY
ISF60LB - ISF72LB - ISF96LB
Design Certified to Z21.60 - Decorative Gas
Appliance for installation in solid-fuel burning
fireplace
The Isoflames Linear Burner is to be installed in solid-
fuel burning fireplace with a working flue and
constructed of noncombustible material. The
installation including provisions for combustion and
ventilation air must conform with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, or the CSA B149.1
Natural Gas and Propane Installation Code, and
applicable local building codes. chimney damper
must be fixed in a manner that will maintain the
minimum permanent vent opening at all times. A
damper clamp is supplied to maintain the minimum
permanent vent opening and prevent complete
closure of damper flap. Warning: Solid fuels shall not
be burned in a fireplace where a decorative
appliance is installed.
1
ISOFLAMES LINEAR BURNER
PFS Report No. F19-161
Issued: February 2021
Revision: 000
©2020 Earthcore Industries, LLC
Advertisement
Table of Contents
Related Manuals for EarthCore ISOKERN ISOFLAME ISF24LB
Summary of Contents for EarthCore ISOKERN ISOFLAME ISF24LB
- Page 1 ISF24LB - ISF36LB – ISF48LB ISF60LB - ISF72LB - ISF96LB A PRODUCT OF EARTHCORE® INDUSTRIES, LLC Important: This manual contains assembly rules, installation steps, guidelines, use and maintenance instructions for the Isoflames Linear Burner Series. This manual must become the property of and be reviewed by all current and future users of this product.
-
Page 2: Table Of Contents
ISFOLAMES LINEAR BURNER 2/2021 Table of Contents Table of Contents ....................................2 Isoflames Linear Burner - Safety Instructions ............................5 Isoflames Linear Burner - Components List ............................6 Isoflames Linear Burner - Specifications ..............................7 Gas Line & Valve Box Installation................................8 Burner Installation .................................... - Page 3 2/2021 ISOFLAMES LINEAR BURNER Isoflames Linear Burner - Safety Instructions WARNING!!!: This appliance assembly contains burner orifices specifically for the input gas specified on the burner and box, as well as the BTU rating specified in this manual. Modifying or failure to use the factory orifice may cause property damage, personal injury, or loss of life.
- Page 4 ISFOLAMES LINEAR BURNER 2/2021 Isoflames Linear Burner - Safety Instructions 18) It is imperative that the unit’s control areas, burners and circulation air passages be kept clean. 19) Keep all combustible material, gasoline, and other flammable liquids at a safe distance from the fireplace. Do not use the appliance where these items are used or stored.
-
Page 5: Isoflames Linear Burner - Safety Instructions
These include pregnant women, people with heart or lung diseases or anemia, people at high altitude or under the influence of alcohol. Earthcore Industries strongly recommends the use of a carbon monoxide detector/alarm device wherever gas fired appliances are in use. -
Page 6: Isoflames Linear Burner - Components List
ISFOLAMES LINEAR BURNER 2/2021 Isoflames Linear Burner - Components List NOTE: model ISF LB shown ① ③ Top view ④ ⑤ ⑥ Bottom view ⑩ ⑦ ⑪ ⑧ TABLE 1 Item No. Description Part Main Burner Assembly (natural gas) ISF-E-36/60/72/96N Main Burner Assembly (propane) ISF-E-36/60/72/96P Pilot Assembly (natural gas) -
Page 7: Isoflames Linear Burner - Specifications
2/2021 ISOFLAMES LINEAR BURNER Isoflames Linear Burner - Specifications TABLE 2 Burner Specifications Minimum Fireplace Dimension (in) Width Nat. Gas L.P. Gas Burner Model Depth Height Front Rear High High ISF24LB 17.5 ISF36LB 17.5 ISF60LB 17.5 ISF72LB 17.5 108K ISF96LB 17.5 108K 105K... -
Page 8: Gas Line & Valve Box Installation
ISFOLAMES LINEAR BURNER 2/2021 Gas Line & Valve Box Installation This appliance must be connected to the gas line in accordance with local codes and/or the National Fuel Gas Code, ANSI Z223.1. After connecting the gas line, all joints in the line and connections at the valve should be checked for leaks before final positioning of the unit. - Page 9 California to cause cancer, birth defects or other reproductive harm. For a copy of the homeowner’s care and operation manual, go to www.earthcore.com or call 1-800-642-2920. FIGURE 2...
-
Page 10: Burner Installation
ISFOLAMES LINEAR BURNER 2/2021 Burner Installation IMPORTANT: Prior to installation: Shut off main gas supply to fireplace. The ISOFLAMES Linear Burner system shall be installed by qualified professional service technician. To ensure proper • performance of the appliance the owner’s installation manual must be followed carefully. The ISOFLAMES Linear Burner is designed to be recessed into the 2 1/2”... -
Page 11: Burner Installation
2/2021 ISOFLAMES LINEAR BURNER Burner Installation 1. Connect all burner segments according to burner model diagram Page 11 - 15. Make sure all connections are tightly secured. 2. Place burner assembly in center of fireplace floor/cavity. 3. Rotate the burner to position the gas inlet flared fitting to be on same side as the gas-supply stub coming from the gas valve. (Not necessary for models ISF72/96LB) 4. -
Page 12: Burner Assembly Connection
ISFOLAMES LINEAR BURNER 2/2021 Burner Assembly Connection 24” Burner Connection - ISF36LB 36” Burner Connection - ISF36LB ISF36LB Box No. Part No. Qty. E-18BP4 E-12BP1... - Page 13 2/2021 ISOFLAMES LINEAR BURNER 48” Burner Connection – ISF48LB 60” Burner Connection – ISF60LB ISF60LB Box No. Part No. Qty. E-18BP1 E-18BP4 E-18BP6...
- Page 14 ISFOLAMES LINEAR BURNER 2/2021 72” Burner Connection – ISF72LB ISF72LB Box No. Part No. Qty. E-18BP4 E-18BP5 E-12BP2 E-12BP3 E-BPC...
- Page 15 2/2021 ISOFLAMES LINEAR BURNER 96” Burner Connection – ISF96LB ISF96LB Box No. Part No. Qty. E-18BP2 E-18BP3 E-12BP2 E-12BP3 E-12BP4 E-12BP5 E-BPC...
-
Page 16: Burner Lighting Instructions
ISFOLAMES LINEAR BURNER 2/2021 Burner Lighting Instructions INSTALLER INSTRUCTIONS It is required that the set of safety instruction labels that have been supplied with the appliance be affixed to the operation and control points of the appliance. It is the installers responsibility to ensure these warnings are properly affixed during installation. -
Page 17: Remote Control System
2/2021 ISOFLAMES LINEAR BURNER Remote Control System The Remote allows you to command the functions of your appliance from the comfort of your chair and is configured to control the On/Off primary burner operation, its flame height through six (6) levels, and provides On/Off control of the appliance. - Page 18 ISFOLAMES LINEAR BURNER 2/2021 Remote Control System TEMPERATURE INDICATOR DISPLAY With the system in the “OFF” position, press the Thermostat Key and the Mode Key at the same time (Figure 10). Look at the LCD screen on the Remote to verify that a C or F is visible to the right of the Room Temperature display (Figure 11).
-
Page 19: Troubleshooting
2/2021 ISOFLAMES LINEAR BURNER Troubleshooting Earthcore Industries Technical Support: 1-800-642-2920 Probable Issue Possible Solution Cause Verify power is ON Check wiring on ignition module and gas valve are No power correct No spark on pilot Ignitor misalignment Verify ignitor not contacting pilot gas hood... -
Page 20: Glass Media Options
ISFOLAMES LINEAR BURNER 2/2021 Glass Media Options Component Part# Description RFG-10-PB 1/2” REFLECTIVE POSEIDON BLUE FIRE GLASS (10 LB JAR) RFG-10-TC 1/2” REFLECTIVE TERRA COPPER FIRE GLASS (10 LB JAR) RFG-10-VB 1/2” REFLECTIVE VESPER BLACK FIRE GLASS (10 LB JAR) RFG-10-KD 1/2”... -
Page 21: Optional Log Sets
2/2021 ISOFLAMES LINEAR BURNER Optional Log Sets Optional Log Sets can be purchased as an upgrade for the Isokern Maximus Linear Fireplace. Western Driftwood - Cast Concrete ISF-L-36LGC Western Driftwood - 36” Set For the 82L48 Fireplace Western Driftwood - 60” Set ISF-L-60LGC For the 82L72 Fireplace Western Driftwood - 72”... - Page 22 ISFOLAMES LINEAR BURNER 2/2021...
- Page 23 2/2021 ISOFLAMES LINEAR BURNER Warranty & Disclaimer ISOFLAMES LINEAR BURNER ISOKERN offers a Lifetime Warranty for all Isokern components, to be free from defects in materials that negatively affect system performance from the date of purchase, subject to the terms and conditions of this limited warranty.
