- Page 1 V4400 SERIES OWNER’S MANUAL V4412 V4415...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Welcome ..............3 PEEK Performance . -
Page 3: Welcome

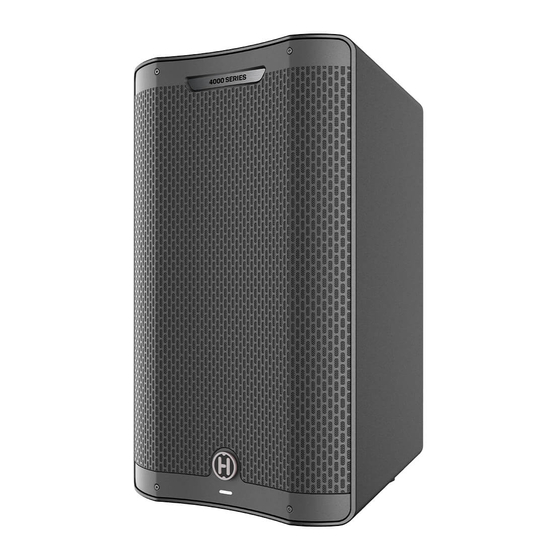

WELCOME These advanced powered speakers feature 130dB of max volume and PEEK Performance audio components to deliver high volume, high-fidelity sound, combined with extensive digital mixing, effects processing, sound customization and app control capabilities. V4412 12” 2-way Powered Speaker - 12-inch XR low-frequency driver, plus high-precision PEEK high-frequency compression driver - Bluetooth audio input, dual mic/instrument inputs, dedicated stereo line input and Aux input–all available simultaneously - Visually controlled DSP providing selectable Voicings, customizable Presets, adjustable Sub Cut, and direct-access Bass and Treble controls, as well as a transparent and dynamic limiter, and high-precision crossover for extremely accurate, high-fidelity sound... -
Page 4: Quick Start Guide: Single V4412/V4415
QUICK START GUIDE: SINGLE V4412/V4415 SET UP • Position your VARI in the desired location and ensure it is stable • Make sure the Power Switch is off • Turn Channel 1, 2, and 3 knobs to minimum MAKE CONNECTIONS •... -
Page 5: Smart Stereo With Pair Of V4412/V4415 Speakers
SMART STEREO WITH PAIR OF V4412/V4415 SPEAKERS A pair of VARI V4412 or V4415 speakers can operate together as a Smart Connect all inputs and make all sound settings on the first (left) unit only. Stereo system, giving you control of the sound and volume of both speakers from the first master speaker, and optimally distributing all audio inputs to both The second (right) unit’s inputs and controls are all speakers for rich stereo sound. -
Page 6: Smart Stereo With Subwoofer
SMART STEREO WITH SUBWOOFER Left/Master Speaker SUBWOOFER Additional subwoofers can be connected to the output from this subwoofer when needed. Right/Link In Speaker These routing options can be set from the first speaker. “Stereo Master” determines left/right audio allocation between the two speakers (see page 13 for details) •... -
Page 7: Smart Stereo With Multiple V4412/V4415 Pairs
SMART STEREO WITH MULTIPLE V4412/V4415 PAIRS Left/Master Speaker 1 Right/Link In Speaker 1 IMPORTANT: Set master speaker above to Alt Link. Mix/Sub Out will now output audio that is appropriate for the VARI that is shown below. Right/Link In Speaker 2 These routing options can also be set from the first speaker. -
Page 8: V4412/V4415 Back Panel
V4412/V4415 BACK PANEL MIC/GUITAR/LINE SWITCHES Set these to match the type of source connected to the input below them. • Mic: For microphones, or line-level sources with low output volumes • Guitar: For acoustic guitar or guitar pedalboard • Line: For line-level sources BLUETOOTH Press On/Pair to enable Bluetooth audio input, and initiate pairing. -
Page 9: Eq, Fx & Mix/Sub Out
1-30ms: Delays the Mix/Sub Out. This delay allows the same capability • Turn Master Volume to adjust the value that is highlighted in blue as the Time Aligning Delay on the Harbinger VS12 and VS18 subwoofer. • Press Master Volume to select a different value to adjust When feeding a subwoofer, send audio with strong low frequencies to •... -
Page 10: Dsp Display Features
DSP DISPLAY FEATURES: HOME PAGE VOLUME METER VOICING Displays the current audio output level. Name of currently active Voicing is shown. • Standard is the normal tuning of the VARI (see page 1 1 for more details). CLIP INDICATORS BASS Red indicates clipping: turn down Master Volume. - Page 11 MAIN MENU VOICINGS These Main Menu pages are available: Voicings tune your VARI for common uses. As you select a voicing on the Select Voicing page, the curve indicates how that voicing effects the VARI 4400 frequency response. While Home is highlighted, as in left and right images above, you can press the MASTER VOLUME knob to return to the Home Page.
-
Page 12: Input Levels
APP CONTROL ENABLE/DISABLE From the Enable App Control page, you can enable VARI control for the VARI Series App. • You can then turn MASTER VOLUME knob to select a different input, or select Reset or Exit • Reset will reset all inputs to 0 (no boost or reduction of digital level) •... -
Page 13: System Delay
SYSTEM DELAY SAVE PRESET From the Save Preset page, you can save the current VARI settings to one of the 6 preset memories in the VARI. From the System Delay page, you can delay the signal sent to the amplifier and all outputs •... -
Page 14: Led Options
LED OPTIONS RESET From the LED Options page, you can configure VARI’s front panel LED. From the Reset page, you can restore your VARI to its factory standard state. • Press the MASTER VOLUME knob while “Reset Unit” is selected, to begin the reset •... -
Page 15: Specifications
SPECIFICATIONS HARBINGER VARI Series V4412 V4415 Display-accessible parameters and BASS and TREBLE knobs Display-accessible parameters and BASS and TREBLE knobs all control the internal DSP to customize the sound all control the internal DSP to customize the sound Transparent, dynamic DSP limiter for ideal sound quality and... - Page 16 SPECIFICATIONS CONTINUED HARBINGER VARI Series V4412 V4415 Type 12” 2-way ported design 15” 2-way ported design Frequency Response 35Hz–22kHz 35Hz–22kHz Max SPL@1M 130dB 131dB HF Driver PEEK (Polyetheretherketone), Compression Driver, 8 ohm PEEK (Polyetheretherketone), Compression Driver, 8 ohm LF Driver 12”...
-
Page 17: Suspension
V4412 V4415 VARI V4400 Series speakers include 3 x M10 Suspension Points: • Two points on the cabinet top allow the speaker to be suspended • If only these two top suspension points are used, the speakers will hang at the angles shown above •... -
Page 18: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please keep this instruction manual for future reference and for the duration of 14. Refer all servicing to qualified service personnel. Servicing is required owning the VARI powered loudspeaker. Please carefully read and understand when the apparatus has been damaged in any way, such as power supply the instructions inside this owner’s manual before attempting to operate your cord or plug is damaged, liquid has been spilled or objects have fallen into new powered loudspeaker. -
Page 19: Fcc Statements
Harbinger VARI Series powered loudspeakers are capable of producing extremely loud volume levels that can cause permanent hearing damage to performers, production crews or the audience. Hearing protection is... -
Page 20: Warranty/Customer Support
For warranty support, please visit our website at www.HarbingerProAudio. or reproducing any program or data stored in equipment that is used with com, or contact our Support Team at 888-286-1809 for assistance. Harbinger Harbinger products. This guarantee gives you specific legal rights; you may will repair or replace the unit at Harbinger’s discretion.
