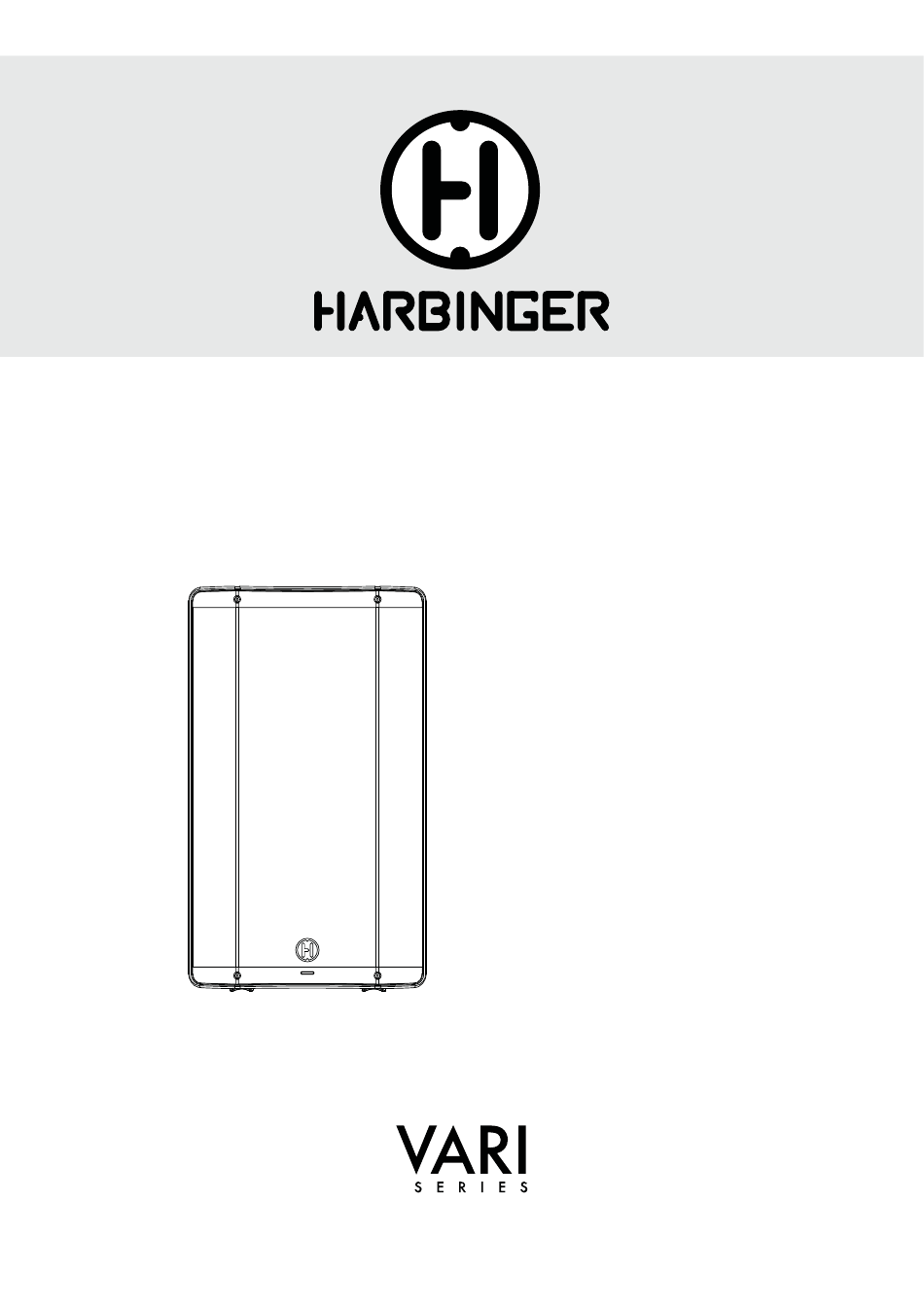

V4412 SERIES
OWNER'S MANUAL
V4412

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V4412 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Harbinger V4412 Series

Summary of Contents for Harbinger V4412 Series

  • Page 1 V4412 SERIES OWNER’S MANUAL V4412...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Welcome ..............3 XR Transducer Technology .

  • Page 3: Welcome

    WELCOME The Harbinger VARI 4400 Series Powered Speakers each combine 2500 watts of peak power with visually controlled DSP, and our exclusive XR Transducer Technology. Combined with versatile inputs, outputs and controls, these capabilities deliver premium sound reproduction with great flexibility.

  • Page 4: Quick Star T Guide: Sin Gle V4412

    QUICK STAR T GUIDE: SIN GLE V4412 SETTING UP / HELPFUL TIPS • Position your VARI in the desired location, and ensure it is stable. • Make sure the Power Switch is off. • Turn Channel 1, 2, and 3 knobs to minimum. MAKING THE CONNECTIONS •...

  • Page 5: Smart Stereo With Pair Of V4412 Speakers

    SMART STEREO WITH PAIR OF V4412 SPEAKERS A pair of VARI V4412 or V4415 speakers can operate together as a Smart Connect all inputs and make all sound settings on the first (left) unit only. Stereo system, giving you control of the sound and volume of both speakers from the first master speaker, and optimally distributing all audio inputs to both The second (right) unit’s inputs and controls are all speakers for rich stereo sound.

  • Page 6: Smart Stereo With Independent Subwoofer

    SMART STEREO WITH INDEPENDENT SUBWOOFER In this configuration, signal to subwoofer is pre-EQ and pre-Master Volume, so audio sent to subwoofer is not effected by VARI’s Master Volume or any of VARI’s DSP processing SUBWOOFER Set DI for Stereo to Mono V4400 SERIES OWNER’S MANUAL...

  • Page 7: Smart Stereo With Controlled Subwoofer(S)

    SMART STEREO WITH CONTROLLED SUBWOOFER(S) In this configuration, signal to subwoofer is post-EQ and post-Master Volume, so audio sent to subwoofer is effected by VARI’s Master Volume and VARI’s DSP processing. You can use two subwoofers or substitute a single subwoofer with dual inputs. LEFT SUBWOOFER RIGHT SUBWOOFER Set DI for Stereo to Alt-Link...

  • Page 8: Smart Stereo With Multiple V4412 Pairs

    SMART STEREO WITH MULTIPLE V4412 PAIRS In this configuration, signal to subwoofer is post-EQ and post-Master Volume, so audio sent to subwoofer is effected by VARI’s Master Volume and DSP processing. Set DI for Stereo to Alt-Link Set Sub Cut filter to OFF TO RIGHT SUBWOOFER TO LEFT...

  • Page 9: V4412 Back Panel

    V4412 BACK PANEL BLUETOOTH Press On/Pair to enable Bluetooth audio input, and initiate pairing. - To pair, look for V4412 from your Bluetooth audio source device. - LED is lit solid when currently paired, blinking when available for pairing, and off if Bluetooth has been disabled by a press of the Bluetooth Off button.

  • Page 10: Dsp Display Features

    DSP DISPLAY FEATURES: HOME PAGE VOLUME METER VOICING Displays the current audio output level. Name of currently active Voicing is shown. • Standard is the normal tuning of the VARI. CLIP INDICATORS Red indicates clipping: turn down MASTER VOLUME, or CHANNEL BASS knobs for active inputs.
  • Page 11 MAIN MENU VOICINGS Voicings tune your VARI for common uses. As you select a voicing on the Select Voicing page, the curve indicates how that voicing effects the VARI 4000 frequency response. While Home is highlighted, as it is above, you can press the Master Volume / DSP knob to return to the Home Page.
  • Page 12 LOCATION SUB CUT From the Location page, choose the location that matches your physical The Sub Cut filter blocks low frequencies, and is most often used when placement of the VARI. operating along with separate subwoofer speakers. From the Location page, choose the setting of the Sub Cut filter. •...

  • Page 13: Led Options

    STEREO MASTER APP CONTROL ENABLE/DISABLE From the Stereo Master page, choose whether this speaker will act as a From the Enable App Control page, you can enable VARI control for the left or right speaker if operating as Stereo Master. VARI Series App.

  • Page 14: Specifications

    Treble knob setting o Stereo Master (Is Left or Is Right) SPECIFICATIONS V4412 HARBINGER VARI Series Display-accessible parameters and Bass and Treble knobs all control the internal DSP to customize the sound Transparent, dynamic DSP limiter for ideal sound quality...
  • Page 15 SPECIFICATIONS CONTINUED HARBINGER VARI Series V4412 Stereo Line: Left/mono and right 1/4-inch TRS balanced/unbalanced compatible audio line inputs Input 3 Aux: 1/8-inch mini TRS unbalanced input (-10dB) Bluetooth Audio: with On/Pair and Off buttons plus LED Link In XLR balanced +4dBv audio input...

  • Page 16: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 14. Refer all servicing to qualified service personnel. Servicing is required Please keep this instruction manual for future reference and for the duration of owning the VARI powered loudspeaker. Please carefully read and understand when the apparatus has been damaged in any way, such as power-supply the instructions inside this owner’s manual before attempting to operate your cord or plug is damaged, liquid has been spilled or objects have fallen new powered loudspeaker.

  • Page 18: Warranty/Customer Support

    Retailer and manufacturer shall not be liable for damages based upon inconvenience, loss of use of product, loss of time, interrupted operation or Harbinger provides, to the original purchaser, a two (2) year limited warranty commercial loss or any other incidental or consequential damages including...
  • Page 19 1908-18332004...
