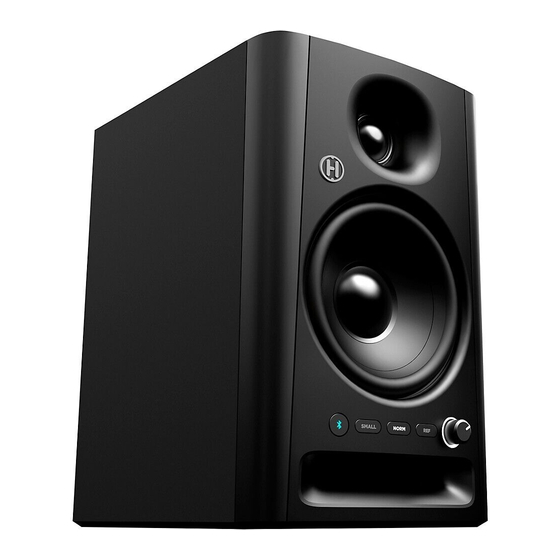

Summary of Contents for Harbinger VARI SM505

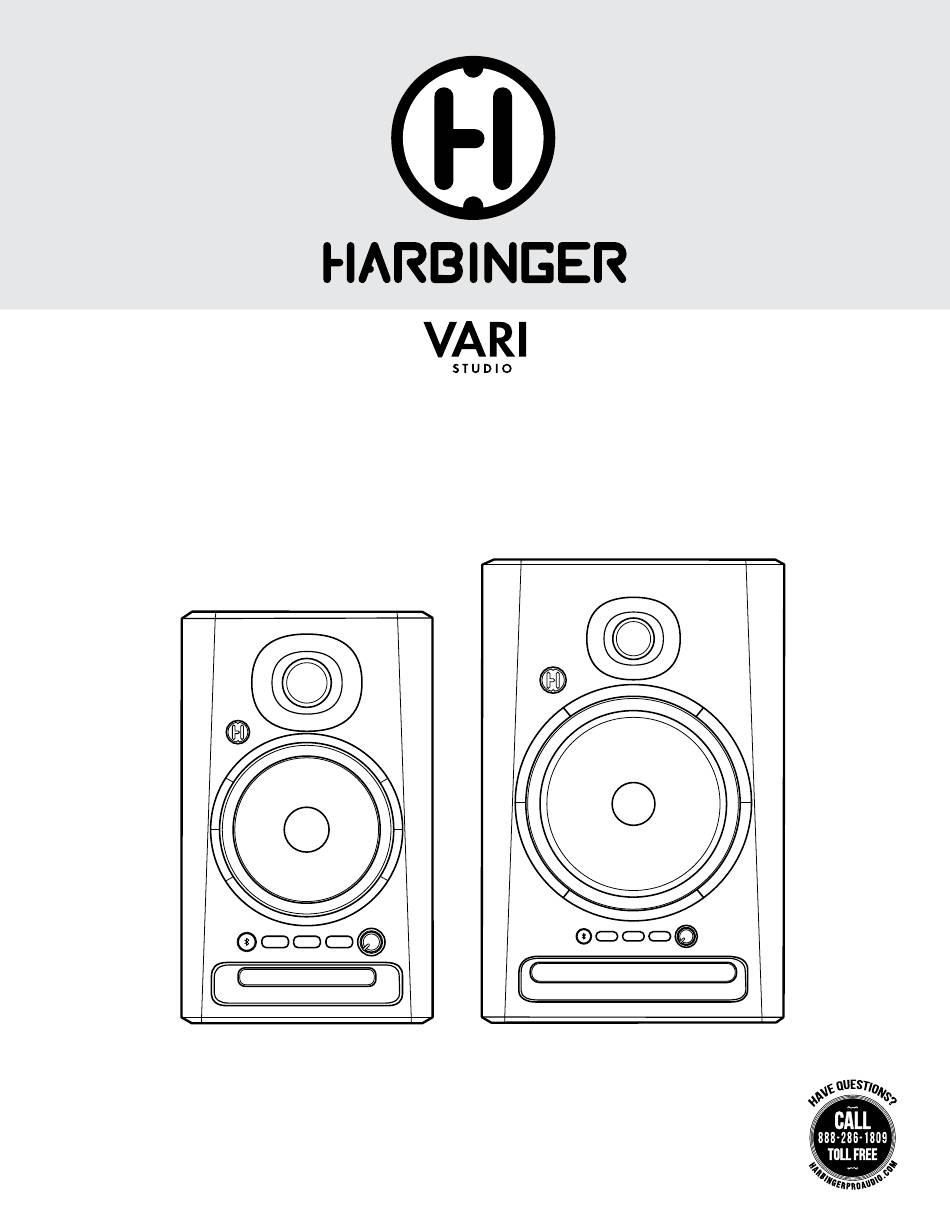

- Page 1 SM505, SM508 OWNER’S MANUAL SMALL NORM SMALL NORM SM505 SM508...
-
Page 2: Table Of Contents
Quick Start Guide: VARI SM505 & SM508 ........ -
Page 3: Quick Start Guide: Vari Sm505 & Sm508
QUICK START GUIDE: VARI SM505 & SM508 VOICING SETTING UP / HELPFUL TIPS • SMALL: Use this simulation of small speakers and devices to check • Position VARI speaker in desired location, and ensure it is stable. to make sure your mix will translate well to smaller speaker systems, •... -
Page 4: Controls & Connections
CONTROLS & CONNECTIONS SMALL NORM FRONT PANEL LEVEL KNOB BLUETOOTH BUTTON •Turn down the knob to reduce the output volume •To enable Bluetooth pairing, hold button until it starts to flash blue. •Ring lights to indicate when power is on •When paired, hold button to disable Bluetooth. - Page 5 CONTROLS & CONNECTIONS SPECIAL CONTROLS CONNECTING TO AN AUDIO INTERFACE CONFIGURE STANDARD MODE: You can connect an audio interface’s outputs directly to the desired input The product can operate in two different modes: Demo mode, and connectors. Normally you’ll connect to the LINE OUT 1 and 2, although Standard mode.
- Page 6 CONNECTIONS CONNECTING TO A MIXER CONNECTING TO A SYNTHESIZER OR Check your mixer’s owner’s manual for information on its output levels. OTHER ELECTRONIC MUSICAL INSTRUMENT A +4dBu balanced mixer output should be connected to the top input jack on Most instruments have unbalanced outputs, and should be connected to the an SM505 or SM508, using a balanced (TRS) cable, or XLR cable.
- Page 7 SETTING UP YOUR LISTENING ENVIRONMENT A number of points should be observed when laying out a monitor speaker system. POINT 1 POINT 5 The left and right speakers should be positioned as symmetrically as possible in Be aware of your room’s physical properties to ensure the best positioning relation to the room.
-
Page 8: Sm505 Specifications
SM505 SPECIFICATIONS Active Monitor Speaker Frequency Response 47Hz - 20kHz Tweeter: 20W RMS (35W Peak) Power Output Woofer: 40W RMS (60W Peak) Amplifier Class Class D Sensitivity 93dB -10dBV@1kHz - 1M Amplifier Maximum SPL 102dB 6.1dBV@1kHz - 1M Signal-Noise Ratio 85.2dB (A-Weighted) Total Harmonic Distortion 0.62% 1W @1kHz... -
Page 9: Sm508 Specifications
SM508 SPECIFICATIONS Active Monitor Speaker Frequency Response 36Hz - 20kHz Tweeter: 30W RMS (65W Peak) Power Output Woofer: 70W RMS (100W Peak) Amplifier Class Class D Sensitivity 101dB -10dBV@ 1kHz - 1M Amplifier Maximum SPL 110dB 6.1dBV@ 1kHz - 1M Signal-Noise Ratio 86.6dB (A-Weight) Total Harmonic Distortion... -
Page 10: Safety
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED PERSONAL IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. -
Page 11: Troubleshooting
If the monitor is still not responding, it should be returned to the dealer on the rear of the monitor. that you purchased it from, or to Harbinger, for servicing. • Check the connections between the signal source and the monitor. -
Page 12: Warranty/Customer Support
Retailer and manufacturer shall not be liable for damages based upon inconvenience, loss of use of product, loss of time, interrupted operation or Harbinger provides, to the original purchaser, a two (2) year limited warranty commercial loss or any other incidental or consequential damages including...
