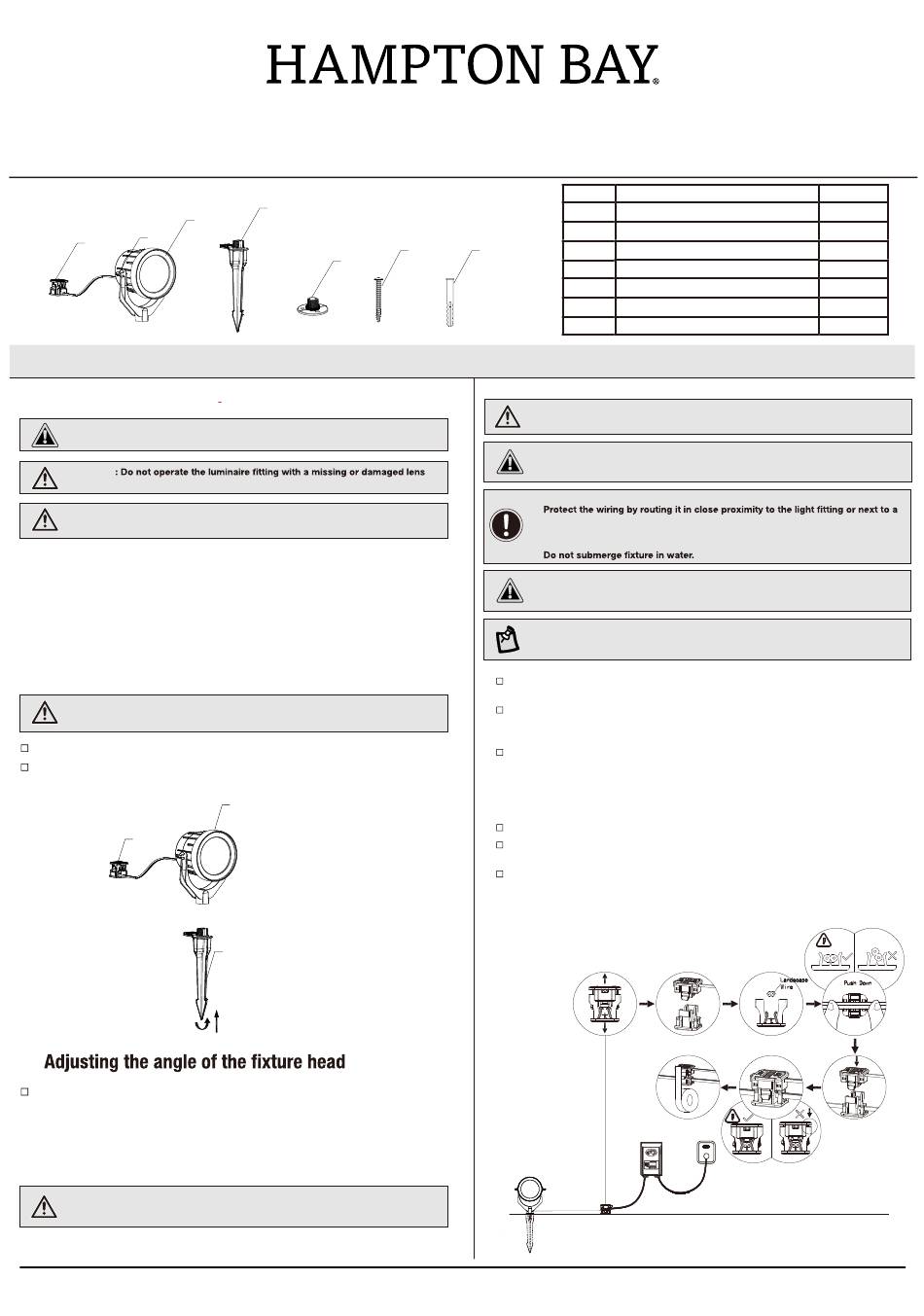

HAMPTON BAY L08157 Use And Care Manual

Please read and save these instructions
PACKAGE CONTENTS
G
F
Assembly and Installation
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: Safe for outdoor operation.
WARNING
or bulb protector.
WARNING: Install in accordance with all local codes and ordinances.
Only for use with low voltage power units with a maximum output rating of 12V,
3 0 0 W p r e s e c o n d r a . y
For landscape lighting systems only. Outdoor use only. The device is accepted
as a component of a landscape lighting system where the suitability of the
combination shall be determined by CSA or local inspection authorities
having jurisdiction.
ETL listed under model # L08157.
1
Attaching and installing the light
WARNING: Never push the fixture into the ground by the light (A) or use a
hammer to insert the spike (B) into the ground.
Carefully remove the fixture from its protective packaging.
Attach spike (B) and light (A) together by turning them
F
2
Loosen the adjustment screw(G) by turning it conterclockwise.
Adjust the head to the desired angle. Re-tighten the adjustment
screw (G) when finished.
3
Connecting the wires
WARNING: The wire connector (F) contacts have sharp edges for piercing the
main low-voltage cable. To avoid injury, do not touch the metal contacts.
Use and Care Guide
LV LED SMART FLOOD LIGHT
B
A
C
counterclockwise.
A
B
Part
D E
WARNING: Risk of Electric Shock. Install all luminaires 10 ft. (3.05 m) or more
from a pool, spa or fountain.
CAUTION: The wire from the low-voltage power unit shall be 12-18 AWG type
underground low energy circuit cable or SPT2W.
IMPORTANT:
•
building structure such as a house or deck.
• The landscape wire and connector can also be hidden under stone or buried
u n d r e g a r
•
CAUTION: Be careful ! The wire stabs are very sharp!
Note: If you want to install this with your existing low-voltage lighting system,
plug the lights into your existing 18AWG to 12AWG SPT-2W wiring.
Align the low-voltage wire and fit it into the connector bottom half as sh-
own below.
Press the top half of the connector into the bottom half until it clicks into
place and is secure. This will pierce the low voltage wire and connect
the light to the transformer.
Test the connection by plugging in the transformer to see if the light tu-
rns on. If it does, unplug the transformer and continue the installation. If
it does not, unplug the transformer and check the connection between
the transformer and low-voltage wire, reinstall the connector, and ensure
power is available to the outlet you are using.
Once the connection is secure, repeat the process for the remaining lights.
Once all lights are connected, it is recommended to wrap each connector
with electrical tape for additional protection.
After all fixtures are installed, turn on the transformer by plugging it into
an outlet.
1
Item #1007 891 726
Model #L08157
Description
A Light
B
Spike
C Steel Support
Screws
D
E
Expands
F Connectors
G Adjustment screw
s s t a a m a i x m u m d e p h t f o 6 i . n 1 ( 5 2 . 4 c
Quantity
1
1
1
3
3
1
2
m . )
