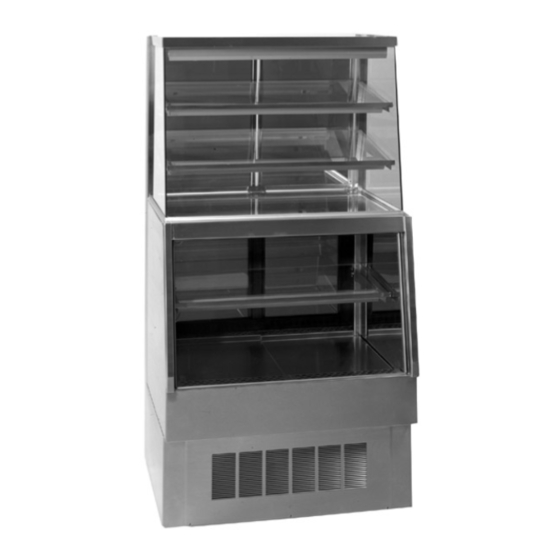

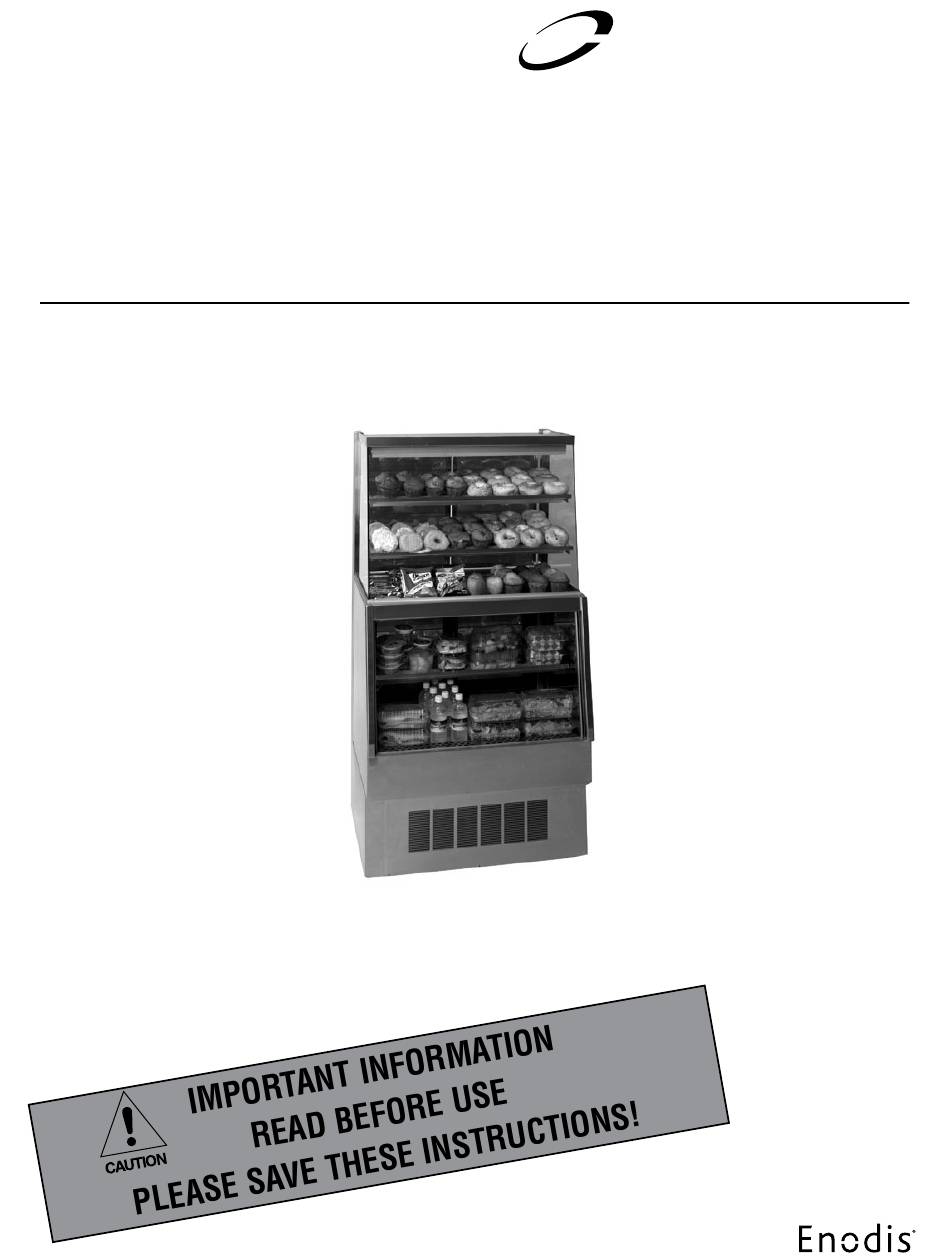

536-SR68 & 536-SRR68 Dual View Display Case
Service, Installation and Care Manual
Please read this manual completely before attempting to install or operate this equipment! Notify carrier
of damage! Inspect all components immediately. See page 2.
536-SR68
Effective Date June 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 536-SR68 and is the answer not in the manual?

Questions and answers

Summary of Contents for Delfield 536-SR68

  • Page 1 Delfield ™ ® 536-SR68 & 536-SRR68 Dual View Display Case Service, Installation and Care Manual Please read this manual completely before attempting to install or operate this equipment! Notify carrier of damage! Inspect all components immediately. See page 2. 536-SR68...
  • Page 2: Table Of Contents

    21.8ft 3 536-SR68 36” 28” 68” 1286 12.0 5-15P 600lbs/272kg (91.4cm) (71.1cm) (172.7cm) 19.9ft 2 21.8ft 3 536-SRR68 36” 28” 68” 1286 575lbs/261kg (91.4cm) (71.1cm) (172.7cm) Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfield.com...
  • Page 3: Installation

    Please call your Delfield service or sales representative if you *** All glass shelving is .25” thick safety glass.*** have any questions on glass replacement. Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfield.com...
  • Page 4: Maintenance

    Be sure to clean the stainless steel surfaces of ALL food products. Common items include, tomatoes, peppers and other vegetables. Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfield.com...
  • Page 5: Pressure Control Settings

    24 hours to equilibrate after the adjustment is made. Wiring Diagram 536-SR68 CONDENSING UNIT COOLING FANS Remote Units Only CONDENSATE EVAPORATOR BALLAST BALLAST BALLAST FLUORESCENT LIGHTS Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfield.com...
  • Page 6: Replacement Parts Lists

    *Pike door and frame assy. 3234299 *Pike door dry hinged set 3234300 Plastic drain 3234242 Rocker switch 2190154 Screw #8 9321137 *Special order item. Allow for longer delivery time. Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfield.com...
  • Page 7: Standard Warranties

    Dual View Series Service and Installation Manual Standard Labor Guidelines To Repair Or Replace Parts On Delfield Equipment Advice and recommendations given by Delfield Service Technicians do not constitute or guarantee any special coverage. • A maximum of 1-hour is allowed to diagnose a defective component.
  • Page 8 Original Purchaser or, if the Original Purchaser returns the warranty card completely filled out including the date of installation within thirty Delfield shall not be liable in any manner for any default or delay in (30) days of receipt of the Unit, ninety (90) days from the date of performance hereunder caused by or resulting from any contingency installation Delfield will pay all related labor costs.
  • Page 9 General Conditions Delfield shall not be liable in any manner for any default or delay in performance hereunder caused by or resulting from any contingency beyond Delfield’s control, including, but not limited to, war,...
  • Page 10 Dual View Series Service and Installation Manual Notes: Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfield.com...
  • Page 11 Dual View Series Service and Installation Manual Notes: Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfield.com...
  • Page 12 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (989) 773-7981 or (800) 733-8829 • Fax (989) 773-3210 • www.delfield.com Delfield reserves the right to make changes in design or specifications without prior notice. ©2008 The Delfield Company. All rights reserved. Printed in the U.S.A.
