TEKNIX THSBS1791PLUX Instruction Manual

2 door side by side fridge freezer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
2 DOOR SIDE BY SIDE
THSBS1791PLUX
THSBS1791PLUBIX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THSBS1791PLUX and is the answer not in the manual?

Questions and answers

Related Manuals for TEKNIX THSBS1791PLUX

Summary of Contents for TEKNIX THSBS1791PLUX

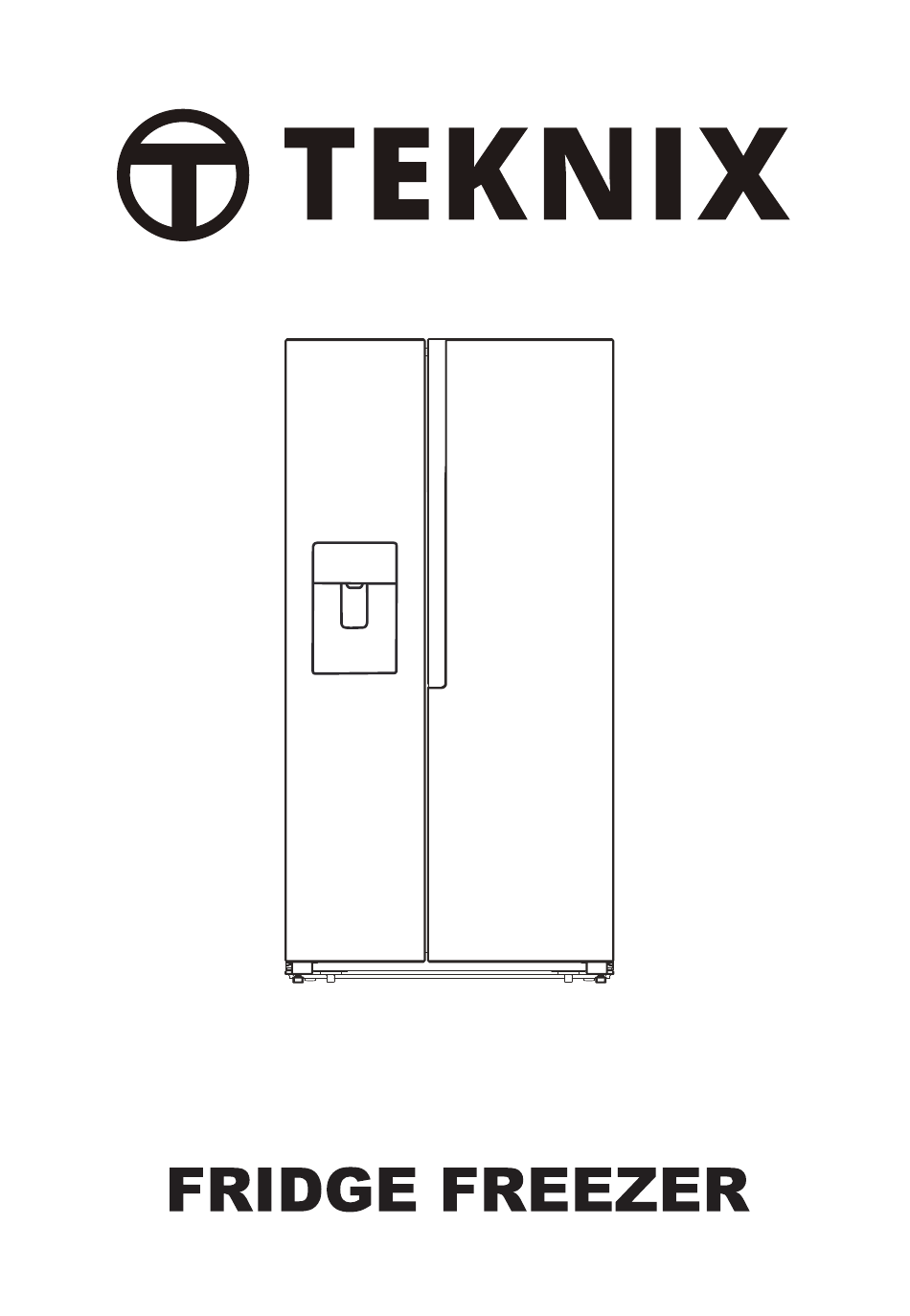

  • Page 1 INSTRUCTION MANUAL 2 DOOR SIDE BY SIDE THSBS1791PLUX THSBS1791PLUBIX...
  • Page 2 We thank you for the confidence you have shown by purchasing our appliance which is designed to simplify your life. To make the use of the product easier, we have supplied detailed instructions for use. The instructions should allow you to learn about your new appliance as quickly as possible. We wish you find a lot of pleasure in its use.

  • Page 3: Table Of Contents

    CONTENTS IMPORTANT NOTES AND PRECAUTIONS INSTALLING YOUR NEW APPLIANCE APPLIANCE DESCRIPTION OPERATING THE APPLIANCE USING YOUR APPLIANCE HELPFUL HINTS AND TIPS CLEANING AND CARE TROUBLESHOOTING DISPOSAL OF THE APPLIANCE...

  • Page 4: Important Notes And Precautions

    IMPORTANT NOTES AND PRECAUTIONS SAFETY AND WARNING INFORMATION For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features.
  • Page 5 According to IEC standard This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •...
  • Page 6 • WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. •...
  • Page 7 flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable. • WARNING — Refrigerators contain refrigerant andgases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition.
  • Page 8 • You must not operate the appliance without the interior lighting lamp cover. • The fridge is only applied with power supply of single phase alternating current of 220~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C.
  • Page 9 • Keep buring candles,lamps and other items with naked flames away from the appliance so that do not set the appliance on fire. • The appliance is intended for keeping food stuff and/ or beverages in normal household as explained in this instruction booklet The appliance is heavy.Care should be taken when moving it.
  • Page 10 Installation Important! • For electrical connection carefully, follow the instructions given in this manual. • Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it.

  • Page 11: Installing Your New Appliance

    INSTALLING YOUR NEW APPLIANCE • Before using the appliance for the first time, you should review the following tips. Ventilation of appliance necessary to maintain good ventilation around the appliance for the dissipation refrigerator. Suggest: It is advisable for there to be 75mm of space from the back to the wall, at least 100mm from its top, at least 100mm from its side to the wall and a clear space upfront to allow the freezer door to open 130°and refrigerator door to open 135°.
  • Page 12 Class Temperature SN (subnormal) from +10 °C to +32 °C N (normal) from +16 °C to +32 °C ST (subtropical) from +16 °C to +38 °C T (tropical) from +16 °C to +43 °C • Stand you appliance in a dry place to avoid damage moisure. •...
  • Page 13 Warning! For proper installation, this refrigerator must be placed on a level surface of hard material that is the same height as the rest of the flooring. This surface should be strong enough to support a fully loaded refrigerator. The rollers, which are not castors, should be only used for forward or backward movement.
  • Page 14 Installing the water lines and filter Installing the water filter To fit the water filter, follow the installing steps below. First, take out the water filter and water lines from the fridge room. Second, determine the location to mount the external filter. (Note: The water filter should be mount on the wall where it is convenient to be replaced, and do not mount on the wall behind the refrigerator.) Third, determine the distance between the filter and the tap, and the distance...
  • Page 15 Note! • The water lines must be fully inserted into the filter to prevent water leaking. • The line length should be less than 5m. If the water line is too long(>5m), the • Cut the water line as required length and avoid overbending the water lines. •...
  • Page 16 Connecting the filter inlet line to the water supplier The connector and the check valve is provided as one part. You should use the new connector incidentally but not the old one you have. Screw the adaptor onto a suitable 3/4” BSP connector water outlet, and use the spanner to tighten it.
  • Page 17 Connect lter outlet line to the fridge The outlet line of the water filter should be connected with the inlet line of the refrigerator by a Two-Way Connector. The water lines must be fully inserted into the center of the connector to prevent water leaking.

  • Page 18: Appliance Description

    APPLIANCE DESCRIPTION 1. Freezer zone LED light 10. Fridge zone LED light 2. Ice-Maker Front Cover Assembly 11. Fridge door Rack 3. Ice Bucket Assembly 12. Wind channel cover in fridge 4. Wind channel cover in freezer 13. Fresh shelf 5.

  • Page 19: Operating The Appliance

    OPERATING THE APPLIANCE Use your appliance according to the following control guidelines, your product has a control panel as shown in the diagram below. Optional: Alarm Holiday Child Lock (3’’) Fridge Freezer Filter Reset (3’’) Fast Freeze (3’’) Fast Cool (3’’) Crushed Cubed Water...
  • Page 20 “Child Lock and Door Alarm” This button serves two purposes: 1.Child Lock Press and hold “Alarm” for 3 seconds to lock the all the Control Panel including dispenser function. If Control panel is locked, the icon “ ” will be illuminated, and none of the buttons on the Control panel work.
  • Page 21 “Holiday” If you are going to be away for a long period of time such as a long holiday or business trip, you can activate this function by touching the “Holiday” button, and the icon “ ” will be illuminated. When the holiday function is activated, the temperature of the fridge is automatically switched to 15°C and the freezer to -18°C to minimize the energy consumption.
  • Page 22 “Freezer temperature control” You can touch the “Freezer” button to activate the mode to control the freezer temperature. When you press the button continuously, the temperature will be set in the following sequence. Press and hold the “Freezer” button for 3 seconds, the icon “ ”will be illuminated, the freezer temperature setting displays -24°C.
  • Page 23 “Changing the Water Filter” In general, you should change the water filter every 6 months to ensure the highest possible water quality. After the refrigerator has dispensed about 1000 gallons of water(used the water filter for about 6 months), the filter icon “ ”...

  • Page 24: Using Your Appliance

    USING YOUR APPLIANCE This section tells you how to use most of the useful features. We recommend that you read through them carefully besfore using the appliance. 1. Adjust the door When you find the doors are not at the same level, you can use the screwdriver to adjust the door.
  • Page 25 Glass shelves and Door racks The refrigerator compartment is provided with 4 glass shelves and several according to your need. Befor you lift up the door shelf vertically, please take the food out. Note: All the door racks and shelves can be taken out to be cleaned. •...
  • Page 26 Drawers These are suitable for storage of fruits and vegetable. And it can be taken out to be cleaned. 3. Using your freezer compartment The freezer compartment is suitable for storage of foods required to be frozen, such as meat, fish, ice cream and other perishable items. Caution! Ensure that bottles are not left in the freezer for longer than needed as freezing may cause the bootles to break.
  • Page 27 5. Using the Ice Bucket If you want to remove the Ice Bucket: Please hold the handle as shown in the figure below. Then lift up and pull the Ice Bucket out slowly to prevent damage. Removing Steps: 1. Lift up the Ice Bucket 2.
  • Page 28 Note! • When the ice maker dumps ice into the bucket, any sounds you hear are part of normal operation. • If you do not dispense ice for a long periods of time, Ice may clump in the Ice Bucket. If this occurs, please remove all the ice and empty the bucket. •...
  • Page 29 The storage box is optional (non fixed). If the product has this accessory, please refer to the following instructions. Warning! • Do not put your fingers, hands, or any other unsuitable objects in the ice chute or ice bucket. This can cause personal injury or material damage. •...
  • Page 30 Order Compartments Target storage Appropriate food TYPE temp.[°C] +2 ≤ +8 Fridge Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, Drinks and other foods which are not suitable for freezing. ≤ –18 (***)* – Seafood (fish, shrimp, shellfish), Freezer freshwater aquatic products and meat products (recommended...
  • Page 31 –2 ≤ +3 Chill Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc. (7 days below 0 °C and above 0 °C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0 °C) 0 ≤...

  • Page 32: Helpful Hints And Tips

    HELPFUL HINTS AND TIPS Energy saving tips We recommend that you follow the tips below to save energy. • Try to avoid keeping the door open for long periods. • Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc.) •...

  • Page 33: Cleaning And Care

    CLEANING AND CARE For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly (at least every two months). Warning! The appliance must not be connected to the mains during cleaning. Danger of from the mains socket. Exterior cleaning To maintain good appearance of your appliance, you should clean it regularly.
  • Page 34 sponge or cloth. Wipe completely dry before replacing the shelves and baskets. Thoroughly dry all surfaces and removable parts before putting them back into place. Although this appliance automatically defrosts, a layer of frost may occur on the freezer compartment’s interior walls if the freezer door is opened frequently or kept open too long.

  • Page 35: Troubleshooting

    TROUBLESHOOTING If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. You can carry out some easy checks according to this section before calling for service. Warning! Don't try to repair the appliance yourself.
  • Page 36 Problem: Possible cause & Solution It is normal to frequently hear the sound of the motor, it will need to run more during following circumstances: • Temperature setting is set colder than necessary. The motor runs • Large quantity of warm food has recently been continuously stored within the appliance.
  • Page 37 Problem: Possible cause & Solution • The LED light may be damaged. Refer to replace LED lights in cleaning and care chapter. The light is not • The control system has disabled the lights due working to the door being kept open too long, close and reopen the door to reactivate the lights.

  • Page 38: Disposal Of The Appliance

    DISPOSAL OF THE APPLIANCE It is prohibited to dispose of this appliance as household waste. Packaging materials Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it. Before disposal of the appliance 1.
  • Page 39 Odours from the • The interior may need to be cleaned. compartments • Some food, containers or wrapping cause odours. The sounds below are quite normal: sponge or cloth. Wipe completely dry before replacing the shelves and baskets. • Compressor running noises. Thoroughly dry all surfaces and removable parts before putting them back into •...
  • Page 40 Problem: Possible cause & Solution It is normal to frequently hear the sound of the motor, it will need to run more during following circumstances: • Temperature setting is set colder than necessary. The motor runs • Large quantity of warm food has recently been continuously stored within the appliance.
