TEKNIX T55F2W Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
T55F2W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T55F2W and is the answer not in the manual?

Questions and answers

Related Manuals for TEKNIX T55F2W

Summary of Contents for TEKNIX T55F2W

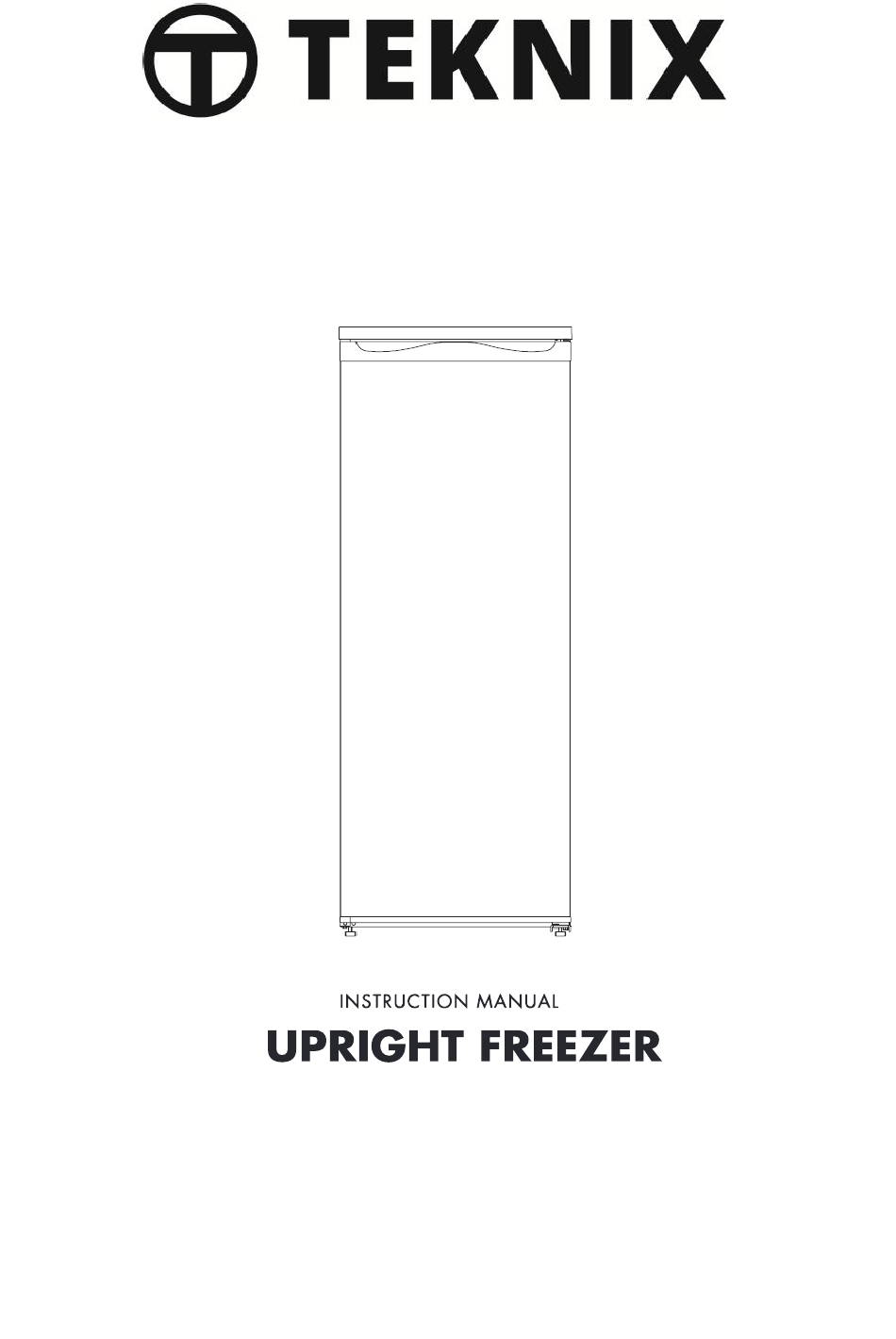

  • Page 1 T55F2W...

  • Page 2: Safety Instructions

    I. SAFETY INSTRUCTIONS WARNING: It is hazardous for anyone other than authorised service personnel to carry out servicing or repairs which involves the removal of covers. To avoid the risk of an electric shock, do not attempt to repair this appliance yourself. WARNING: Risk of fire / flammable materials.
  • Page 3 unless they are recommended by the manufacturer. • Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

  • Page 4: Electrical Supply Connection

    Electrical Supply Connection • Connect the appliance to the electrical supply (220-240 V ~ 50 Hz) with the plug and lead, which are fitted. • Connections to the mains supply should be in accordance with local regulations. • DO NOT use plug adapter. •...

  • Page 5: Climate Range

    Climate Range The information about the climate range of the appliance is provided on the rated plate. It indicates at which ambient temperature (that is, the room temperature in which the appliance is working) the operation of the appliance is optimal (proper). Climate range Permissible ambient temperature from +10°C to +32°C...
  • Page 6 II. Introduction Upright Freezer Diagram Note: Due to technological innovation, the product descriptions in this manual may not be completely consistent with your refrigerator. Details are in accordance with the real product. If you require any technical guidance or find that the product is not operating as intended, please see the Troubleshooting section of this manual...

  • Page 8: Preparations For Use

    III. Preparations for use Installation location: 1. Ventilation condition When installing your freezer ensure it is in a well ventilated location. Do not install the freezer near any heat source such as a cooker. Avoid locating the freezer in direct sunlight, this will ensure you reduce the energy consumption of the appliance.
  • Page 9 3. Level ground Place the freezer on a solid and flat ground (floor) to keep it stable, or else it will give rise to vibration and noise. Unobstructed ventilation shall be maintained around the appliance or in an embedded structure. Preparations for use 1.
  • Page 10 IV. Functions The temperature thermostat knob needs to be turned by a coin. This is located near the top of the inside of the unit. Temperature Selection • Turning the thermostat knob adjusts the temperature of the freezer. • The marks on the knob represent different settings. Setting “1” is the warmest and setting “4”...
  • Page 11 V. Instructions for food storage Precautions for use • The appliance might not operate consistently (if there is a possibility of defrosting or temperature becoming too warm in the frozen food compartment) when running for an extended period of time below the cold limit of the temperature range for which the refrigerating appliance is designed •...
  • Page 12 Categorised storage of foods Foods should be stored by category, with the foods you eat every day placed in front of the shelf, so that the door open duration can be shortened and food spoilage due to expiration can be avoided Energy-saving tips: Allow hot food to cool down to the room temperature before putting it in the freezer.
  • Page 13 Moving your Larder/Fridge/Freezer • Location Do not place your freezer near a heat source, e.g. cooker, boiler or radiator. Avoid it from direct sunlight in out-buildings or sun lounges. • Leveling Make sure to level your freezer using the front leveling feet. If not level, the larder door gasket and sealing performance will be affected, or it may lead to the operating failure of your freezer.

  • Page 14: Maintenance And Cleaning

    VI. Maintenance and cleaning Before cleaning, turn off power first then unplug the appliance from the wall socket. Do not plug in or pull plug out with wet hands, because there is a risk of electric shock and injury. Do not spill water directly on the freezer, to avoid rust, electricity leakage and accidents.
  • Page 15 Defrosting When the freezer operates for a long period of time,the surface of the evaporator and the drawers may become covered with a layer of white frost. This frost will reduce the energy efficiency of the unit, and make the freezer less effective. When this frost forms, it should be promptly removed.

  • Page 16: Troubleshooting

    VII. Trouble Shooting With regard to the following small faults, not every failure needs to be fixed by the technical service personnel, you can try to solve the problem by referring to the below. Power cut: If the internal temperature of the Freezer compartment is -18℃ or less when the power returns, your food is safe.
  • Page 17 Note: If the trouble shooting advice does not resolve your problem, do not attempt to dissemble or repair this appliance. Repairs carried out by an inexperienced person may cause injury or serious malfunctioning. Contact your after sales service provider. This product should be serviced by an authorised engineer with only genuine spare parts.
  • Page 18 VIII. Certifications Electrical information This electrical appliance must be grounded. This product is equipped with a plug, which is suitable for all houses equipped with sockets meeting the current specifications. If the fitted plug is not suitable for your socket outlets, it should be cut off and carefully disposed of by a qualified electrician.

  • Page 19: Product Support

    IX. Product Support Declaration of conformance to product standards This appliance conforms to all relavant standards applicable to domestic appliances sold in the UK Disposal This appliance/fitting is marked A according to the European directive 2012/19/ EU on Waste Electrical - and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
  • Page 20 Guarantee We, Teknix, undertake that if within 24 months of the date of purchase this appliance or any part thereof is proven to be defective by reason of mechanical or electrical failure we will at our discretion repair or replace the same free of any charge for labour, materials or carriage on condition that: •...
