TEKNIX THSBS1791INX Instruction Manual

2 door side by side fridge freezer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

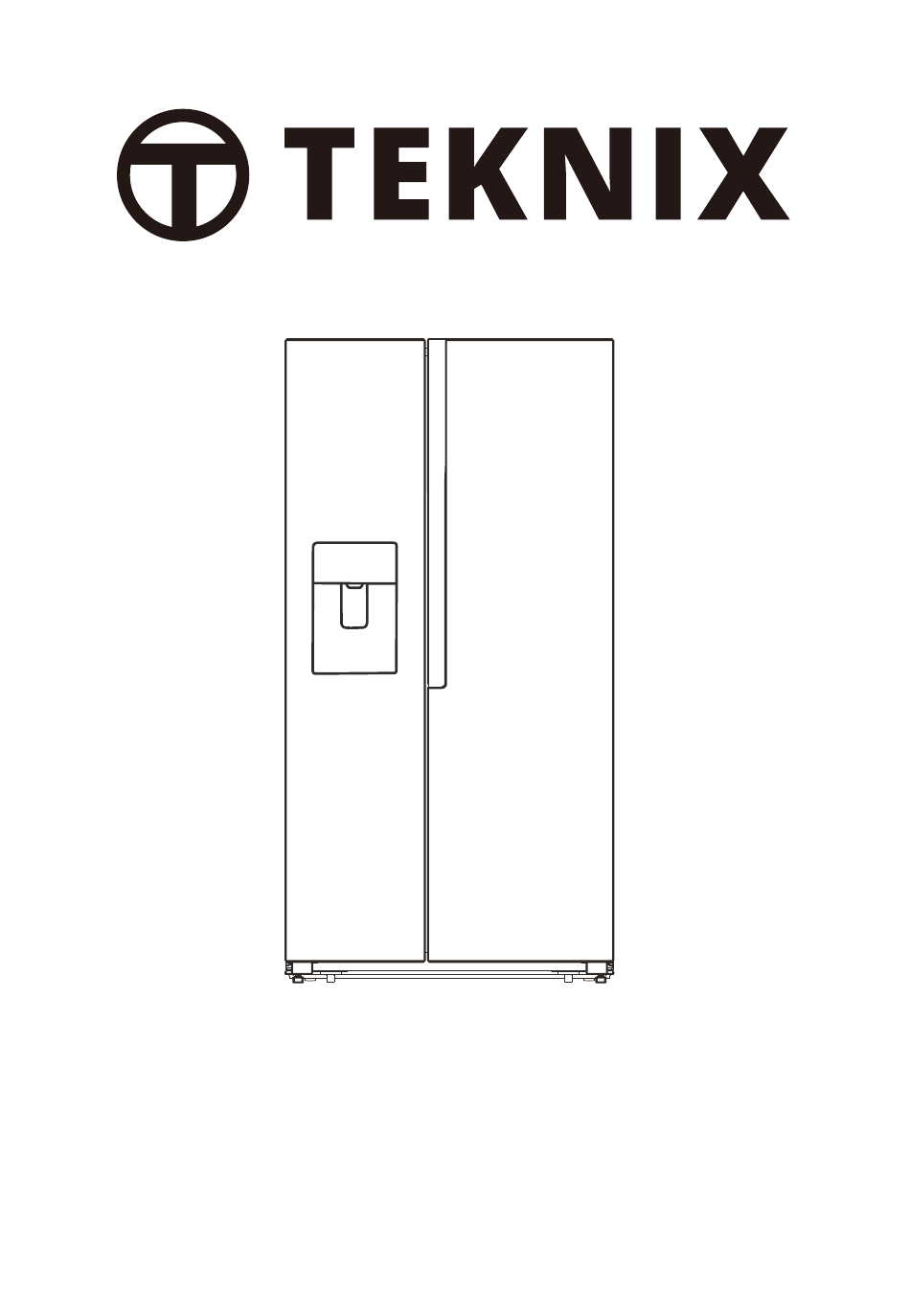

INSTRUCTION MANUAL
2 DOOR SIDE BY SIDE
FRIDGE FREEZER
THSBS1791INX
THSBS1791INBIX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THSBS1791INX and is the answer not in the manual?

Questions and answers

Related Manuals for TEKNIX THSBS1791INX

Summary of Contents for TEKNIX THSBS1791INX

  • Page 1 INSTRUCTION MANUAL 2 DOOR SIDE BY SIDE FRIDGE FREEZER THSBS1791INX THSBS1791INBIX...
  • Page 2 We thank you for the confidence you have shown by purchasing our appliance which is designed to simplify your life. To make the use of the product easier, we have supplied detailed instructions for use. The instructions should allow you to learn about your new appliance as quickly as possible. We wish you find a lot of pleasure in its use.

  • Page 3: Table Of Contents

    CONTENTS 4 IMPORTANT NOTES AND PRECAUTIONS 11 INSTALLING YOUR NEW APPLIANCE 14 APPLIANCE DESCRIPTION 15 OPERATING THE APPLIANCE 20 USING YOUR APPLIANCE 27 HELPFUL HINTS AND TIPS 28 CLEANING AND CARE 30 TROUBLESHOOTING 33 DISPOSAL OF THE APPLIANCE...

  • Page 4: Important Notes And Precautions

    IMPORTANT NOTES AND PRECAUTIONS SAFETY AND WARNING INFORMATION For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features.
  • Page 5 According to IEC standard This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •...
  • Page 6 • WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. •...
  • Page 7 flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable. • WARNING — Refrigerators contain refrigerant andgases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition.
  • Page 8 • You must not operate the appliance without the interior lighting lamp cover. • The fridge is only applied with power supply of single phase alternating current of 220~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C.
  • Page 9 • Keep buring candles,lamps and other items with naked flames away from the appliance so that do not set the appliance on fire. • The appliance is intended for keeping food stuff and/ or beverages in normal household as explained in this instruction booklet The appliance is heavy.Care should be taken when moving it.
  • Page 10 Installation Important! • For electrical connection carefully, follow the instructions given in this manual. • Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it.

  • Page 11: Installing Your New Appliance

    INSTALLING YOUR NEW APPLIANCE • Before using the appliance for the first time, you should review the following tips. Ventilation of appliance In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat.
  • Page 12 Class Temperature SN (subnormal) from +10 °C to +32 °C N (normal) from +16 °C to +32 °C ST (subtropical) from +16 °C to +38 °C T (tropical) from +16 °C to +43 °C • Stand you appliance in a dry place to avoid damage moisure. •...
  • Page 13 Warning! For proper installation, this refrigerator must be placed on a level surface of hard material that is the same height as the rest of the flooring. This surface should be strong enough to support a fully loaded refrigerator. The rollers, which are not castors, should be only used for forward or backward movement.

  • Page 14: Appliance Description

    APPLIANCE DESCRIPTION 1. Freezer zone LED light 10. Fridge zone LED light 2. Ice-Maker Front Cover Assembly 11. Fridge door Rack 3. Ice Bucket Assembly 12. Wind channel cover in fridge 4. Wind channel cover in freezer 13. Fresh shelf 5.

  • Page 15: Operating The Appliance

    OPERATING THE APPLIANCE Use your appliance according to the following control guidelines, your product has a control panel as shown in the diagram below. When the appliance is powered on for the first time, the backlighting of the icons on the display panel starts working. If no buttons have been touched and the doors are closed, the backlighting will turn off after 60 seconds.
  • Page 16 “Child Lock and Door Alarm” This button serves two purposes: 1.Child Lock Press and hold “Alarm” for 3 seconds to lock the all the Control Panel including dispenser function. If Control panel is locked, the icon “ ” will be illuminated, and none of the buttons on the Control panel work.
  • Page 17 “Holiday” If you are going to be away for a long period of time such as a long holiday or business trip, you can activate this function by touching the “Holiday” button, and the icon “ ” will be illuminated. When the holiday function is activated, the temperature of the fridge is automatically switched to 15°C and the freezer to -18°C to minimize the energy consumption.
  • Page 18 “Freezer temperature control” You can touch the “Freezer” button to activate the mode to control the freezer temperature. When you press the button continuously, the temperature will be set in the following sequence. Press and hold the “Freezer” button for 3 seconds, the icon “ ”will be illuminated, the freezer temperature setting displays -24°C.
  • Page 19 “Water storage box Alarm” If the water storage box part is not correctly installed or not installed, the water storage box alarm will come on for reminding users. You can clear the alarm by holding "Eco" button for 3 seconds. “Energy Save”...

  • Page 20: Using Your Appliance

    USING YOUR APPLIANCE This section tells you how to use most of the useful features. We recommend that you read through them carefully besfore using the appliance. 1. Adjust the door When you find the doors are not at the same level, you can use the screwdriver to adjust the door.
  • Page 21 Glass shelves and Door racks The refrigerator compartment is provided with 4 glass shelves and several different door racks, which are suitable for the storage of eggs, canned liguid, bottled drinks and packed food... They can be placed at different heights according to your need.
  • Page 22 Water storage box It is for providing water for ice maker and water dispenser. You can inpouring water into the water storage box by following steps: 1. Pull out the water storage box 2. Lift the front small cover,and then inpouring directly 3.
  • Page 23 Drawers These are suitable for storage of fruits and vegetable. And it can be taken out to be cleaned. 3. Using your freezer compartment The freezer compartment is suitable for storage of foods required to be frozen, such as meat, fish, ice cream and other perishable items. Caution! Ensure that bottles are not left in the freezer for longer than needed as freezing may cause the bootles to break.
  • Page 24 5. Using the Ice Bucket If you want to remove the Ice Bucket: Please hold the handle as shown in the figure below. Then lift up and pull the Ice Bucket out slowly to prevent damage. Removing Steps: 1. Lift up the Ice Bucket 2.
  • Page 25 Note! • When the ice maker dumps ice into the bucket, any sounds you hear are part of normal operation. • If you do not dispense ice for a long periods of time, Ice may clump in the Ice Bucket. If this occurs, please remove all the ice and empty the bucket. •...
  • Page 26 The storage box is optional (non fixed). If the product has this accessory, please refer to the following instructions. Warning! • Do not put your fingers, hands, or any other unsuitable objects in the ice chute or ice bucket. This can cause personal injury or material damage. •...

  • Page 27: Helpful Hints And Tips

    HELPFUL HINTS AND TIPS Energy saving tips We recommend that you follow the tips below to save energy. • Try to avoid keeping the door open for long periods. • Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc.) •...

  • Page 28: Cleaning And Care

    CLEANING AND CARE For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly (at least every two months). Warning! The appliance must not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket.
  • Page 29 sponge or cloth. Wipe completely dry before replacing the shelves and baskets. Thoroughly dry all surfaces and removable parts before putting them back into place. Although this appliance automatically defrosts, a layer of frost may occur on the freezer compartment’s interior walls if the freezer door is opened frequently or kept open too long.

  • Page 30: Troubleshooting

    TROUBLESHOOTING If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. You can carry out some easy checks according to this section before calling for service. Warning! Don't try to repair the appliance yourself.
  • Page 31 Problem: Possible cause & Solution It is normal to frequently hear the sound of the motor, it will need to run more during following circumstances: • Temperature setting is set colder than necessary. The motor runs • Large quantity of warm food has recently been continuously stored within the appliance.
  • Page 32 Problem: Possible cause & Solution • The LED light may be damaged. Refer to replace LED lights in cleaning and care chapter. The light is not • The control system has disabled the lights due working to the door being kept open too long, close and reopen the door to reactivate the lights.

  • Page 33: Disposal Of The Appliance

    DISPOSAL OF THE APPLIANCE It is prohibited to dispose of this appliance as household waste. Packaging materials Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it. Before disposal of the appliance 1.
  • Page 34 We, Teknix, undertake that if within 24 months of the date of purchase this appliance or any part thereof is proven to be defective by reason of mechanical or electrical failure we will at our discretion repair or replace the same free of any charge for labour, materials or carriage on condition that: ·...
  • Page 36 Your Teknix appliance comes with a 2 year parts and labour guarantee Please REGISTER your appliance on line at www.teknixwarranty.co.uk You also have the option to EXTEND YOUR WARRANTY To 5 years parts and labour To register your appliance or extend your warranty...
