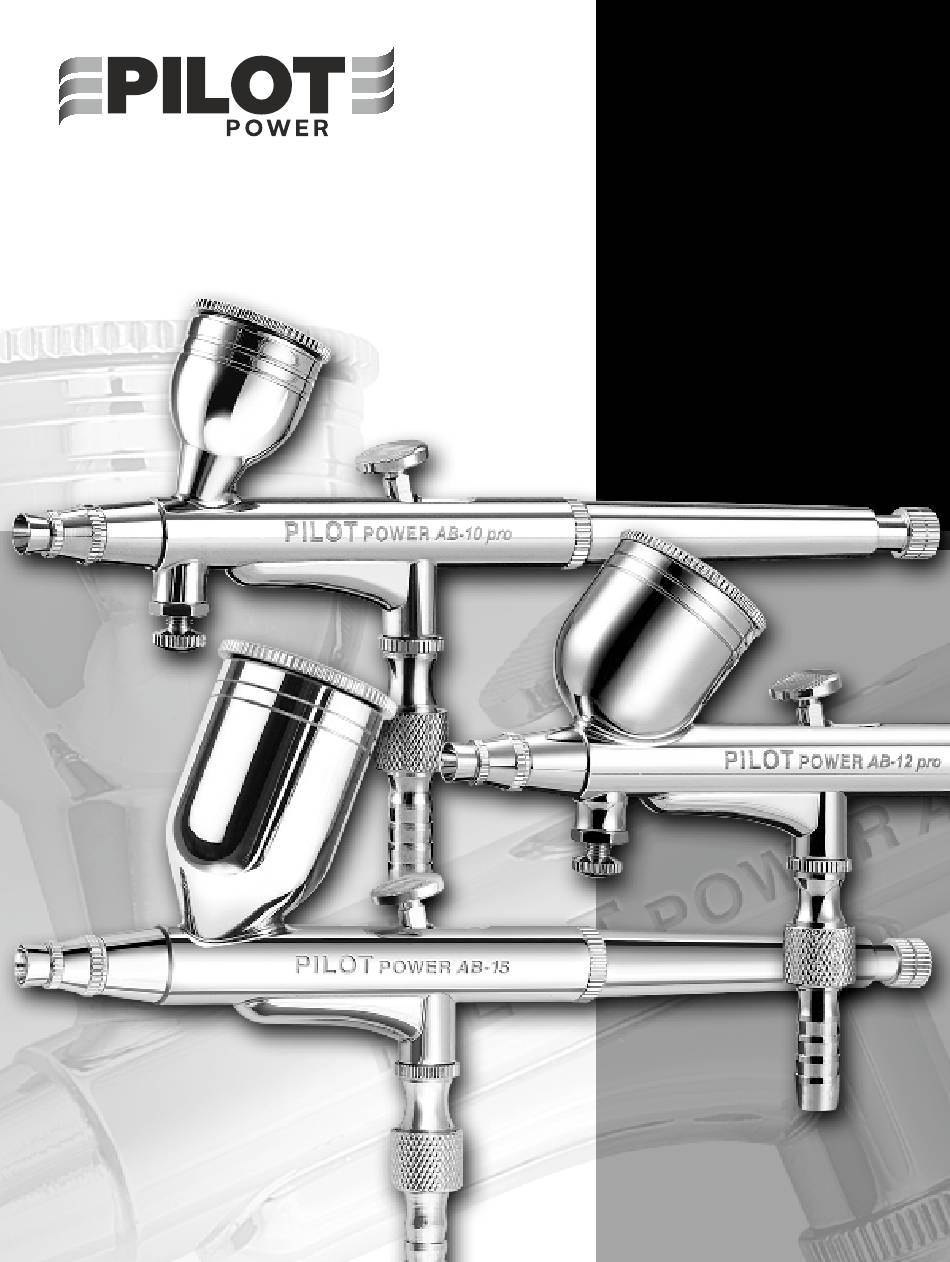

- Page 1 AB-10 AB-12 AB-15 AB-10 pro AB-12 pro AB-15 pro A I R B R U S H P I LO T P O W E R S P R AY G U N S Service Sheet & List of Spare Parts...
-
Page 2: How To Use
How to Use Dear Customer, It is important to eliminate dust accumulated in Thank you for purchasing the hose. You can easily do it by connecting the hose PILOT Power AIRBRUSH. to the air receiver at a working pressure of Every PILOT product (1.5 to 4 kgs / cm2). -
Page 3: Technical Specifications
AB 10017B Air Brush AB - 15 PRO with 15ml cup AB 15000P 22 "O" Ring For Valve Pin AB 10017C Air Brush AB-10 with 5ml cup AB 10000 23 Valve Pin AB 10017D Air Brush AB-12 with 10ml cup... - Page 4 Disassembly of the Airbrush In each of these steps please refer to the diagram. Remove each part by turning or pulling in the direction indicated by the arrows. Step 1. Pull air hose off the hose connector. Step 2. Remove back cover complete(13) Step 3.
-
Page 5: Cleaning And Lubrication
Cleaning & Lubrication Submerge all parts of the airbrush except the needle in a solvent in a glass or metal pan for a few minutes. Then scrub the parts with a small soft paint brush until all liquid has been removed. Clean the cup thoroughly. Make sure there is a good liquid flow from where the nozzle connects. - Page 6 Periodic Airbrush Maintenance On the inside page you will find the diagrammatic representation of the airbrush with instructions for airbrush maintenance. Please study the diagram for parts recognition and to understand how to disassemble and assemble the airbrush. For Long Lasting Use ! Do not allow remaining liquid to dry up in the cup.
