Type 68 Spray Gun
List of Spare Parts Type 68
Sr. No. Description Part No.
Spray Gun Type - 68 with
S.S. Top Feed Cup 0.14 Litre 68000S
Spray Gun Type-68 with
Plastic Top Feed Cup 0.14 Litre 68000N
1 Air Cap 68001
2 M.S. Nozzle 68002
3 S.S. Nozzle 68003
4 Packing Bush Set 68005
5 Needle Packing Nut 68006
6 Needle Valve 68007
7 Needle Spring Box 68008
8 Needle Spring 68009
9 Needle Adjusting Screw 68010
10 Air Valve Pin 68011
11 Air Valve Spring 68012
12 Air Valve Packing Box 68013
13 Air Valve Packing Box Washer 68014
14 Air Valve Washer 68015
Manufactured by :
Manik Machinery Manufacturers Pvt. Ltd.
21/23, Sona Udyog, P. P. Road, Andheri (East), Mumbai 400 069. MH. INDIA
Tel.: +91 22 660 47 000 • E-mail: info@pilotindia.com • www.pilotindia.com

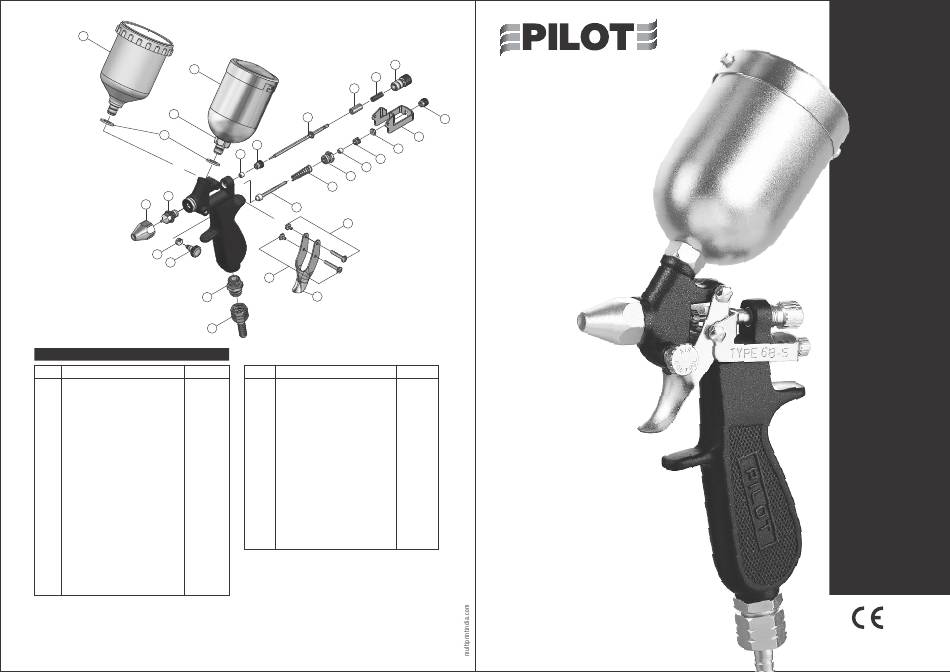

Spare Parts for Type - 68 Spray Gun
9
8
7
6
5
14
4
13
4
12
11
10
17
18
19
Sr. No. Description
15 Link
16 Air Valve Locking Nut
17 Fulcrum Screw
18 Trigger & Link Screw
19 Trigger
20 Air Control Spring
21 Air Control Valve
23 Cup Bottom Part
24 S.S. Top Feed Cup 0.14 Litre
25 Plastic Top Feed Cup 0.14litre
26 Air Intake Connector
27 Hose Coupling
28 M.S Repair Kit #*
29 S.S Repair Kit #*
# Accessories
* This set contains an air cap, nozzle, needle, air valve pin
and packing.
@ Please mention nozzle size while ordering spare parts.
16
15
Part No.
68016
68017
68018
68019
68020
68021
68022
68023B
68023
68024
68025
68026
68080M
68080S
P I L O T S P R A Y G U N
Service Sheet & List of Spare Parts
Type
68
Conformity to
European Standards
