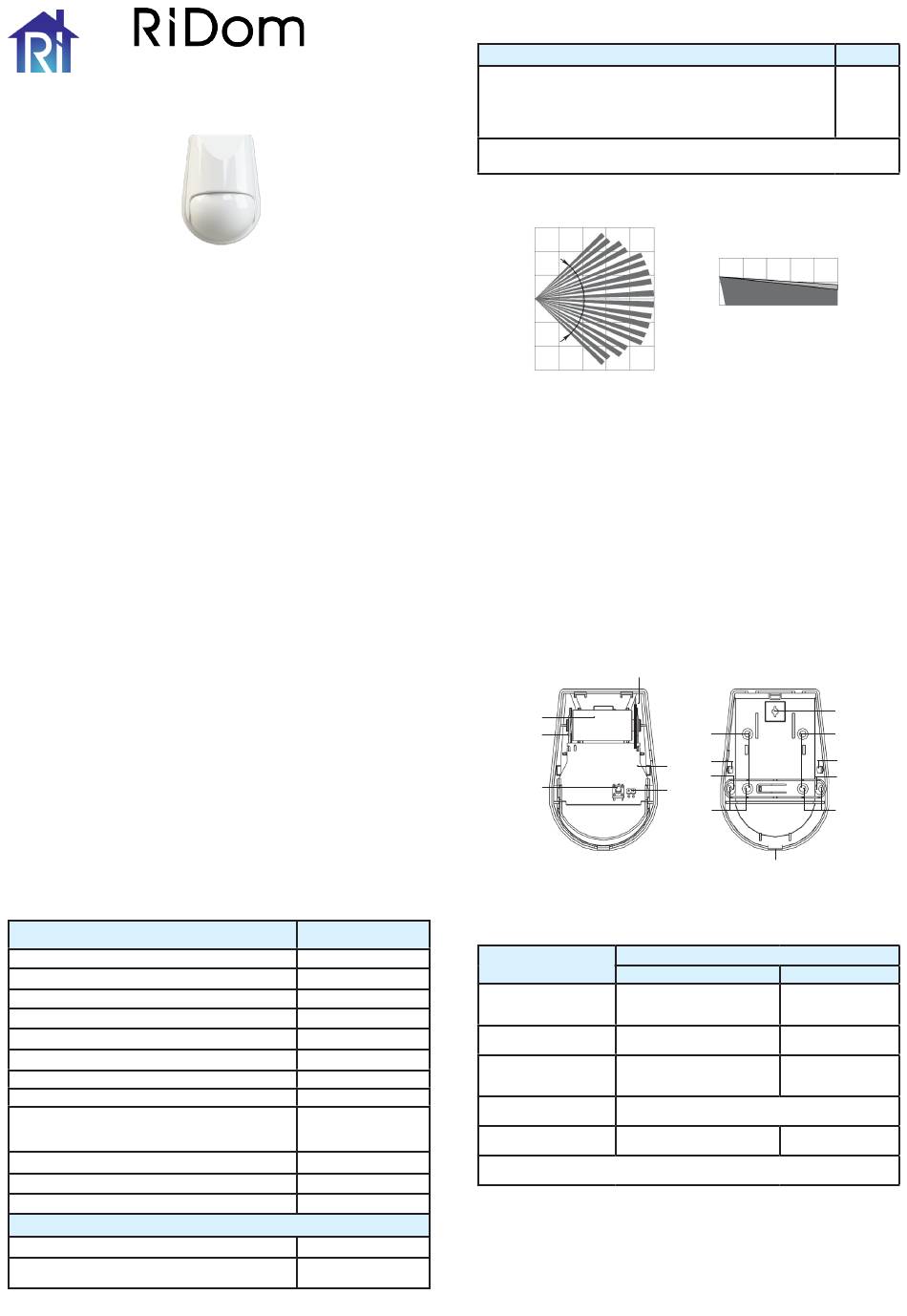

RiDom Ri-MD-1 Installation Manual

Motion detector «Ri-MD-1»
Installation guide
1 GENERAL INFORMATION
1.1 The motion detector «Ri-MD-1» (hereinafter referred to as the
Detector) detects movement in the secured area of an enclosed space
and transmits notifications via a two-ways radio channel in accordance
with the «Ri-Contact-R» protocol.
1.2 The Detector works as part of the RiDom smart home protection
system, communicating with the «Ri-HUB-1» control center (hereinafter
referred to as the Hub), which supports the «Ri-Contact-R» radio channel
exchange protocol.
1.3 The Detector does not require permission and registration as the
RF device.
1.4 The Detector has a two-color (red and green) LED indicator for
monitoring of the performance. The LED can be turned off.
1.5 The Detector has RESET contacts that allow to switch the Detector
to the «Linking» mode.
1.6 The Detector generates and provides radio transmission of seven
types of notifications:
- the normal status;
- the alarm;
- the opening the case or removal from the place of installation;
- the battery discharge;
- the working in the «Linking» mode;
- the working in the «Identification» mode;
- the quality of communication.
1.7 The radio exchange is initiated by the Detector with a period of
10 s, 15 s, 30 s, 60 s, 2 min, 5 min, 10 min. The frequency of radio sessions
is set when configuring the Detector. Alarms and case opening
notifications are transmitted immediately.
1.8 The Detector is designed for continuous round-the-clock operation.
1.9 The pet immunity of the Detector ensures the absence of false
alarms triggered by moving cats and dogs with weight up to 40 kg.
1.10 The Detector is resistant to electromagnetic interference.
2 MIAN FEATURES
The Detector provides:
- Lack of distortion in the detection zone and noise immunity to pets.
- Protection against penetration of insects inside the case.
- Possibility of switching of pets' immunity by radio protocol.
- Thermal compensation of detecting ability.
- Automatic transition to a backup frequency under difficult connection
conditions.
3 SPECIFICATIONS
Table 1
Parameter
Frequency range
Radiation power, no more
Detection zone
Maximum detection range
Recommended installation height
Standby mean time to failure
Protection class
Battery type
The duration of the sensor operation from one
battery under normal climate conditions and with
an communication period of at least 60 s
Dimensions
Weight
Average service life
Operational conditions
Operating temperature range
Permissible air humidity at a temperature
of +25 °C, without moisture condensation
3 SCOPE OF SUPPLY
Table 2
Motion detector «Ri-MD-1»
Mounting bracket
Lithium battery СR123A
Installation guide for the «Ri-MD-1».
* Supplied by request
** Included
4 DETECTION ZONE DIAGRAM
5 VIEW AND DESIGN
The Detector consists of a case cover (1) with a printed circuit board (2)
and a case base.
The following elements are located on the printed circuit board:
3 - RESET contacts;
4 - opening sensor (tamper);
5 - battery holder;
6 - lithium battery CR123A with an insulator.
The following elements are located on the base of the case:
7 - hole for attaching the base to the bracket;
8 - holes for wall mounting;
9 - clamps of the sensor board;
10 - holes for mounting the Detector in the corner;
11 - openings of the latch of the removal sensor;
12 - hole for the cover lock.
6 INDICATION
Table 2
Value
868,7...869,2 MHz
25 mW
Volumetric
12 m
2,3 ± 0,1 m
60 000 hrs
IP41
CR123A, 1 pc.
«Connection quality»
8 years
Completing the linking
88х60х47 mm
* The alarm indication turns off 15 minutes after the sensor cover is closed
and turns on when it is opened or at the command of the hub.
0,1 kg
8 years
7 CHOOSING THE PLACE OF INSTALLATION
The Detector should be installed indoors only. When choosing a place
for installation of the Detector, consider the presence of obstacles that
-20... +55 С
о
can weaken the transmission of the radio signal.
The sensor can be installed in areas with long-haired pets weighing
Up to 98 %
up to 40 kg (20 kg).
Name
Top view
90
о
0
10 m
Picture 1 – Detection zone diagram
а) case cover with PCB
1
6
5
_
+
2
4
RESET
3
Picture 2
LED status
«Linking» intermittent green LED
turning on the red LED for
«Alarm»*
alternating switching of red
«Identification» and green LEDs
with a frequency of 1 Hz
«Assessing the quality of connection»
turning on the red LED
process
1 pc
1 pc*
1 pc**
1 copy.
Side view
2,3 m
10 m
b) case base
7
8
8
9
9
10 10
11
11
12
Indication
Action Condition
if indication is
0.5 s enabled
on command from
the hub
see the section
for 2 s
Qty.
