xStack DGS-3400 Series Layer 2 Gigabit Ethernet Managed Switch
Commander Switch Icon
The following options may appear for the user to configure:
•
Collapse - to collapse the group that will be represented by a single icon.
•
Expand - to expand the SIM group, in detail.
•
Property - to pop up a window to display the group information.
Member Switch Icon
The following options may appear for the user to configure:
•
Collapse - to collapse the group that will be represented by a single icon.
•
Expand - to expand the SIM group, in detail.
•
Remove from group - remove a member from a group.
•
Configure - launch the web management to configure the Switch.
•
Property - to pop up a window to display the device information.
Candidate Switch Icon
The following options may appear for the user to configure:
•
Collapse - to collapse the group that will be represented by a single icon.

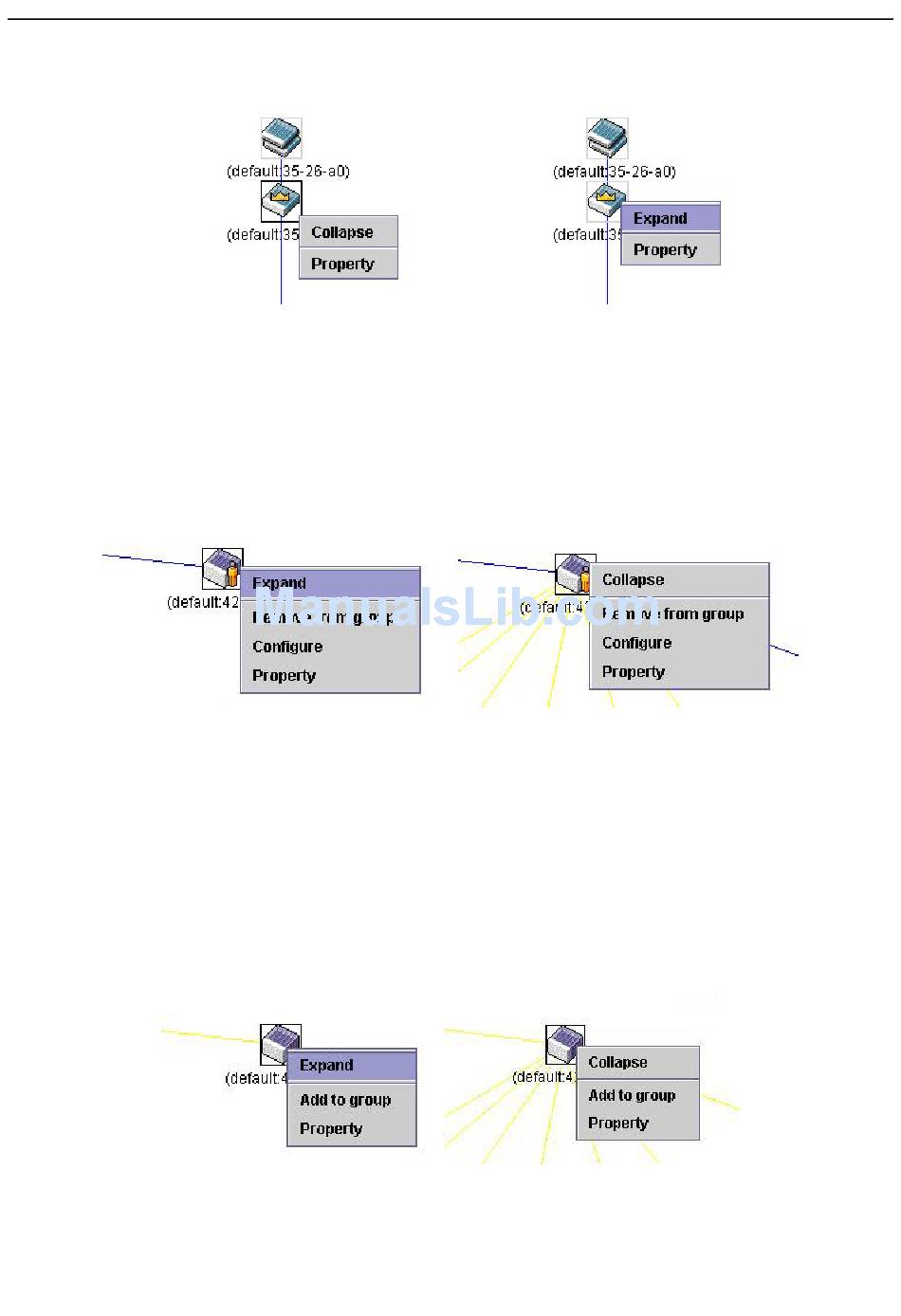

Figure 6- 79. Right Clicking a Commander Icon
Figure 6- 80. Right Clicking a Member icon
Figure 6- 81. Right Clicking a Candidate icon
105
