Summary of Contents for LG LSC5633W

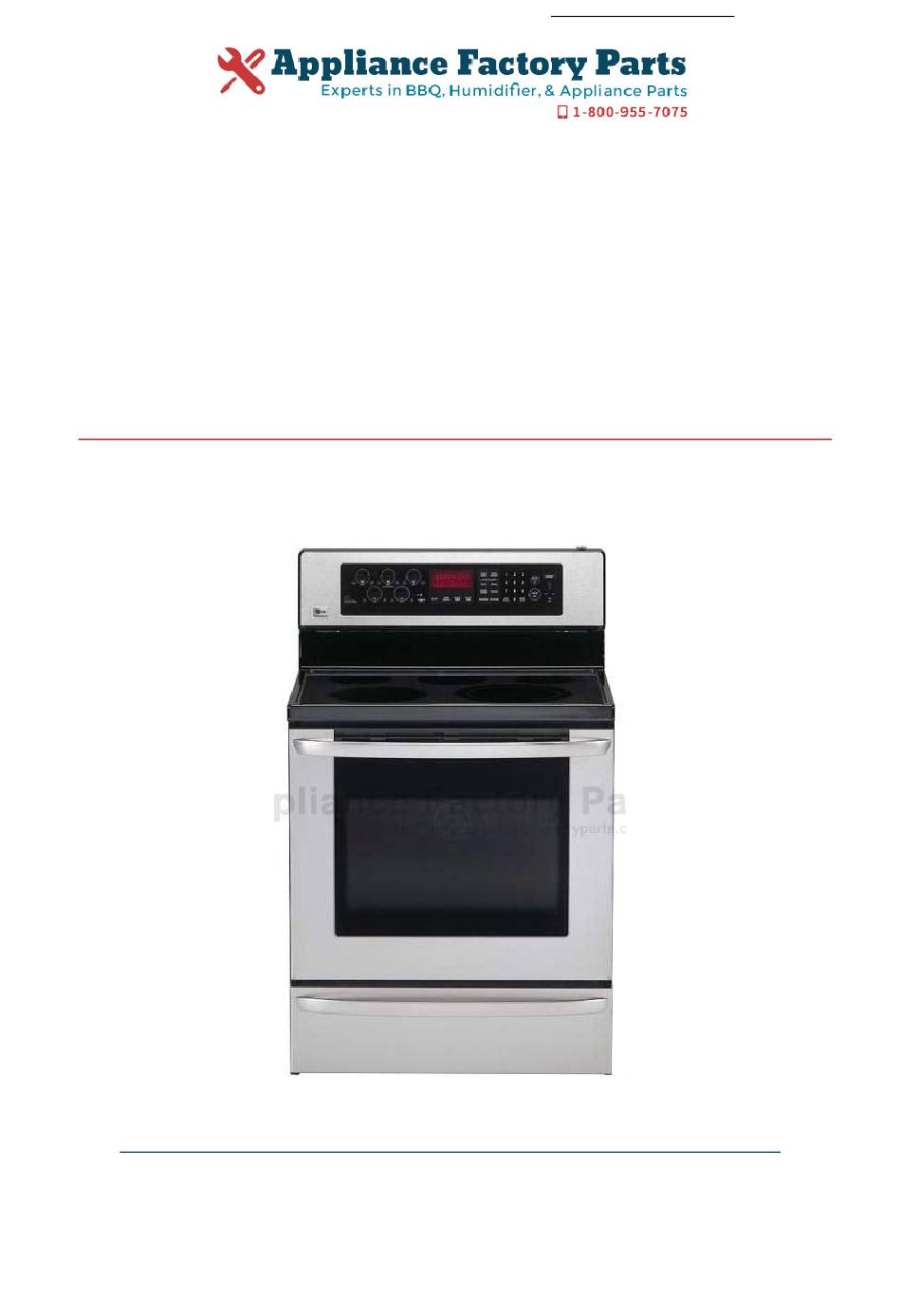

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. LG LSC5683WS Owner's Manual Shop genuine replacement parts for LG LSC5683WS Find Your LG Electric Range Parts - Select From 91 Models -------- Manual continues below --------...
  • Page 2 Website:http://ca.lge.com Installation Manual Electric Range LSC5622W / LSB5611S / LST5601S / LSC5633W LSC5674W / LSC5683W / LSB5682S / LST5651S Please read these instructions thoroughly before installing and operating the range. P/No.: MFL38379501...

  • Page 3: Before You Begin

    Part 1 SAFETY BEFORE YOU BEGIN Remove all tape and packing materials before using the range. Dispose all plastic bags after unpacking the range. Never allow children to play with packing materials. IMPORTANT SAFETY INSTRUCTIONS Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, injury to person, or damage when using the range.

  • Page 4: Tools Needed

    Part 1 SAFETY PREPARE TO INSTALL THE RANGE WARNING TOOLS NEEDED • The information in this manual should be followed exactly. - A fire or electrical shock may result causing property damage, perasonal injury or death. WARNING • DO NOT step or sit on the door.

  • Page 5: Prepare To Install The Range

    Part 2 PREPARE TO INSTALL THE RANGE INSTALLATION DRAWINGS SAVE FOR THE USE OF THE LOCAL ELECTRICAL INSPECTOR. CLEARANCES AND DIMENSIONS (FIG. 1) To install range refer to the following FIG. 1. For installation in CANADA, a Free-standing range is not to be installed closer than 12mm from any adjacent surface.

  • Page 6: Install The Range

    Part 3 INSTALL THE RANGE ELECTRICAL CONNECTION REQUIREMENTS The range must be installed in accordance with Local and Canadian Electrical Codes (latest edition). See rating plate for total connected Amp rating. This model was shipped direct from the factory with Service cord attached.
  • Page 7 MEMO...
