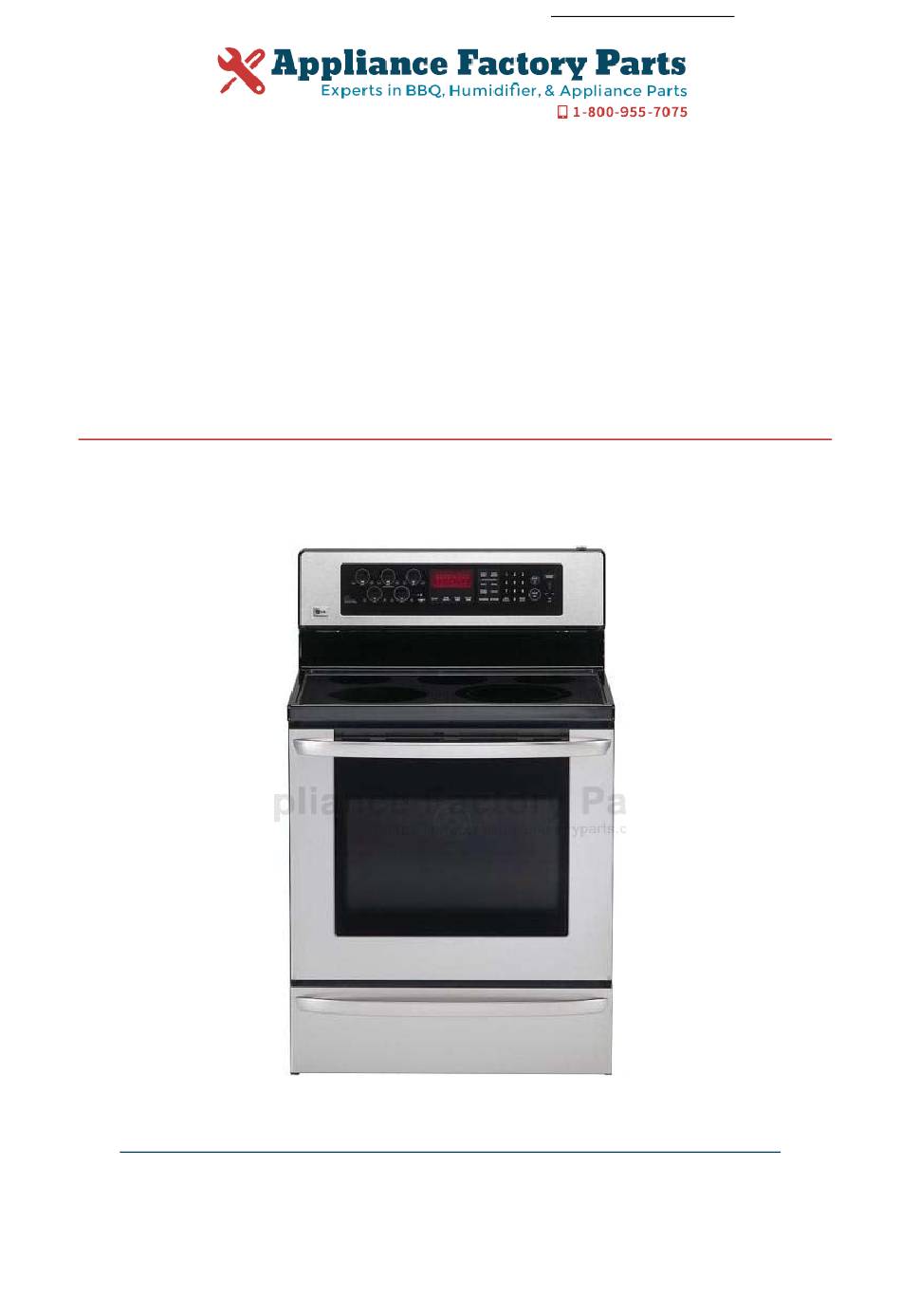

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. LG LSC5683WS Owner's Manual Shop genuine replacement parts for LG LSC5683WS Find Your LG Electric Range Parts - Select From 91 Models -------- Manual continues below --------...
  • Page 2 삼 흥 정 판 Internal Use Only Website http://biz.lgservice.com 30” Freestanding Electric Range SERVICE MANUAL MODEL: LSC5683WW LSC5683WB LSC5683WS CAUTION BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. April, 2008 Printed in Korea P/NO : MFL38379704...

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS • Repairs of the appliance should be carried out by a licensed technician only. Wrong repairs may result in considerable danger. If you need repairs, contact an LG Service Center or your dealer. • If the supply cord is defective, it must be replaced by a special cord or assembly available from manufacturer or substance or its service agent.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS GENERAL- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-1 ~ 1-4 •...
  • Page 5 (Page) COMPONENT TEST - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-1 ~ 4-8 •...

  • Page 6: General

    GENERAL IMPOR ANT SAFETY INSTRUCTIONS IMPOR ANT SAFETY INSTRUCTIONS Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, injury to person, or damage when using the range. This guide don’t cover all possible conditions that may occur. For further assistance contact your service agent or manufacturer.
  • Page 7 GENERAL IMPOR ANT SAFETY INSTRUCTIONS IMPOR ANT SAFETY INSTRUCTIONS • Be sure your appliance is properly installed and grounded by a WARNING qualified technician. • Do not repair or replace any part of the appliance unless • DO NOT touch heating elements or specifically recommended in the manual.
  • Page 8 GENERAL IMPOR ANT SAFETY INSTRUCTIONS IMPOR ANT SAFETY INSTRUCTIONS • Do Not Leave Children Alone - Children should not be left alone or SELF-CLEAN OVENS unattended in area where appliance is in use. They should never be • Do Not Clean Door Gasket – The door gasket is essential for a allowed to sit or stand on any part of the appliance.

  • Page 9: Model & Serial Number Label And Tech Sheet Locations

    GENERAL MODEL & SERIAL NUMBER LABEL MODEL & SERIAL NUMBER LABEL AND TECH SHEET LOCA TIONS AND TECH SHEET LOCA TIONS The Model/Serial Number label and Tech Sheet locations are shown below. Model & Serial Number Location Tech Sheet Location (On Low Rear Cover)
  • Page 10 GENERAL SPECIFICA TIONS SPECIFICA TIONS Model Number LSC5683WW / LSC5683WB / LSC5683WS Category Convection Overall Width 30" Installation type Freestanding Color availability WH, BK, STS Control Oven Keypad Cooktop Keypad Display Scroll VFD Electronic clock & timer Control lock capability...

  • Page 11: Theory Of Operation

    THEORY OF OPERATION GENERAL INFORMA TION GENERAL INFORMA TION Rating Label Convection Bake / Roast Mode Upper element, lower element, Rear element(some Model numbers are recorded on the rating label. model) and fan operate during convection bake. Rating label is located on the lower front left corner Convection bake should be used for cooking of the oven frame.

  • Page 12: Control Panel Features

    THEORY OF OPERATION CONTROL P ANEL FEA TURES CONTROL P ANEL FEA TURES single single Warming zone Left Rear element Right Rear element 11 12 13 14 15 16 single Dual Left Front element Right Front Dual element 1. BAKE PAD: Press to select the bake function. 12.

  • Page 13: To Turn On A Dual Surface Unit (Right Front)

    THEORY OF OPERATION To turn on a single surface unit 4. TIMER ON/OFF (Right Rear, Left Rear, Left Front) TIMER Desired TIMER 1. Press ON/OFF pad for the desired element. ON/OFF time ON/OFF 2. Press ( ) pad to choose the desired setting. To cancel timer at any time, touch TIMER ON/OFF pad.

  • Page 14: Bake, Timed Bake, Delayed Timed Bake

    THEORY OF OPERATION 5) BEEPER VOLUME 8. CONVECTION BAKE 1. Press OPTIONS pad 5 times CONV. Desired START 2. Press “1” pad for loud level, BAKE Temp. “2” pad for normal level, “3” pad for low level, 9. CONVECTION ROAST “4”...

  • Page 15: Warming Drawer

    THEORY OF OPERATION ARMING DRA ARMING DRA The rack can be used in 2 ways: To set the warming drawer control 1. Press the ON/OFF pad at the • In the upright position to allow low profile food WARMING DRAWER items to be placed both under and on top of the position.

  • Page 16: Component Access

    COMPONENT ACCESS This section instructs you on how to service each component inside the range. The components and their locations are shown below. COMPONENT LOCA TIONS COMPONENT LOCA TIONS Circuit Breaker Main PCB Cook Top Appliance Outlet Display PCB Cook Top Relay PCB Door Locking Motor &...

  • Page 17: Removing The Back, Control Cover And Key Membrane, Support Assembly

    COMPONENT ACCESS REMOVING THE BACK, CONTROL COVER REMOVING THE BACK, CONTROL COVER AND KEY MEMBRANE, SUPPOR T ASSEMBL AND KEY MEMBRANE, SUPPOR T ASSEMBL 6. Remove 7 screws of KEY Membrane assembly and WARNING separate PCB assembly. • DISCONNET power supply cord from the outlet before servicing.

  • Page 18: Removeing The Control Power Swpply And Power Control Board (Pcb)

    COMPONENT ACCESS REMOVING THE CONTROL POWER SUPPL REMOVING THE CONTROL POWER SUPPL AND POWER CONTROL BOARD (PCB) AND POWER CONTROL BOARD (PCB) 4. There is 3 PCB (power control board). When you WARNING check PCB, check the proper pcb of default mode and check main pcb.
  • Page 19 COMPONENT ACCESS REMOVING THE SURF ACE ELEMENTS REMOVING THE SURF ACE ELEMENTS AND THE CERAMIC GLASS COOKT AND THE CERAMIC GLASS COOKT Step. 5 WARNING Turn over the cook-top • DISCONNET power supply cord assembly from the outlet before servicing. •...
  • Page 20 COMPONENT ACCESS REMOVING THE DOOR LA TCH & DOOR SWITCH REMOVING THE DOOR LA TCH & DOOR SWITCH b) Remove the door latch from the burner box WARNING and unhook the actuating rod. • DISCONNET power supply cord from the outlet before servicing. •...

  • Page 21: Removing The Broil Element

    COMPONENT ACCESS REMOVING THE BROIL ELEMENT REMOVING THE BROIL ELEMENT b) Pull the element forward so that you can WARNING access the terminals and disconnect the wires. • DISCONNET power supply cord Terminals from the outlet before servicing. • Replace all panels and parts before operating.

  • Page 22: Removing The Bake Element

    COMPONENT ACCESS REMOVING THE HIDDEN BAKE ELEMENT REMOVING THE HIDDEN BAKE ELEMENT 1. Unplug range of disconnect power. 7. Bend the insulation glass fiber up. 2. Pull the range out of its mounting location so that ou can access the rear of the unit. 3.

  • Page 23: Removing The Convection Element, Fan Blade And Fan Motor

    COMPONENT ACCESS REMOVING THE CONVECTION ELEMENT AN BLADE AND F AN MOT REMOVING THE CONVECTION ELEMENT AN BLADE AND F AN MOT 1. Disconnect power and remove oven racks. 7. To remove Fan blade, remove Nut by screwing clockwise. Fan blade can be replaced from inside 2.

  • Page 24: Removing The Oven Light & Socket Assembly

    COMPONENT ACCESS REMOVING THE OVEN LIGHT & SOCKET ASSEMBL REMOVING THE OVEN LIGHT & SOCKET ASSEMBL CAUTION WARNING • DISCONNET power supply cord • Be careful not to scratch or chip the from the outlet before servicing. oven liner paint when you remove •...

  • Page 25: Removing The Latch Drive Assembly

    COMPONENT ACCESS REMOVING THE LA TCH DRIVE ASSEMBL REMOVING THE LA TCH DRIVE ASSEMBL DOOR LOCKING MECHANISM WARNING The door lock assembly is located at the back side • DISCONNET power supply cord of range. from the outlet before servicing. The structural elements are as below.

  • Page 26: Removing The Oven Temperature Sensor

    COMPONENT ACCESS REMOVING THE OVEN TEMPERA TURE SENSORS REMOVING THE OVEN TEMPERA TURE SENSORS 5. To remove an oven temperature sensor, WARNING disconnect the connector from the main harness and remove the two mounting screws in oven • DISCONNET power supply cord cavity.

  • Page 27: Removing The Warming Dra Wer Element & Tempera Ture Sensor

    COMPONENT ACCESS REMOVING THE W ARMING DRA WER ELEMENT REMOVING THE W ARMING DRA WER ELEMENT & TEMPERA TURE SENSOR & TEMPERA TURE SENSOR To remove the warming drawer element: WARNING 1. Remove the two bottom bracket screws • DISCONNET power supply cord from the outlet before servicing.

  • Page 28: Removing & Replacing The Lift-Off Oven Door

    COMPONENT ACCESS REMOVING & REPLACING THE LIFT -OFF OVEN DOOR REMOVING & REPLACING THE LIFT -OFF OVEN DOOR To replace the door: CAUTION Step. 1 • Be careful when removing and Firmly grasp both lifting the door. sides of the door •...

  • Page 29: Removing The Oven Door Handle & Glass

    COMPONENT ACCESS REMOVING THE OVEN DOOR HANDLE & GLASS REMOVING THE OVEN DOOR HANDLE & GLASS 5. Lift the liner assembly off the front glass and set WARNING it aside. 6. To remove the door handle & trim (for stainless model) •...
  • Page 30 COMPONENT ACCESS 7. To remove a hinge hanger assembly: d) Lift the inner oven door glass and bracket a) Remove the 2 top liner screws assembly out of the door liner. (See step 3 on page 3-14) b) Place the door liner assembly on a padded work surface with the hinge hangers over the edge.

  • Page 31: Removing The Oven Door Gasket

    COMPONENT ACCESS REMOVING THE OVEN DOOR GASKET REMOVING THE OVEN DOOR GASKET 3. Pull the ends of the gasket out of the liner holes. WARNING Liner Hole • DISCONNET power supply cord from the outlet before servicing. • Replace all panels and parts before operating.

  • Page 32: Removing A Side Panel

    COMPONENT ACCESS REMOVING A SIDE P ANEL REMOVING A SIDE P ANEL 7. Remove the two screws from the left or right side WARNING panel. • DISCONNET power supply cord from the outlet before servicing. • Replace all panels and parts before operating.

  • Page 33: Component Test

    COMPONENT TEST Before testing any of components, perform the following checks: NOTE: 1. The most common cause for control failure is corrosion on connectors. Therefore, disconnecting and reconnecting wires will be necessary throughout test procedures 2. ALL units in the first few days of use should be checked for mis-wiring or loose connections 1.

  • Page 34: Door Locking Motor

    Components Test procedures Results Normal: Approximately Door locking Motor 1. Refer to page 3-10 for the servicing procedure 2.6 kΩ ± 10% 2. Measure the resistance If not replace (Multiple meter scale: R x 1000) Abnormal: Infinite(open) below 5Ω (shorted) Door latch Door latch Micro Switch...

  • Page 35: Oven Sensor

    Components Test procedures Results Normal: Approximately Oven Sensor 1. Refer to page 3-11 for the servicing procedure 1.09 kΩ ± 10% 2. Measure the resistance after cooling down If not replace (Multiple meter scale: R x 1000) NOTE: Ω Value was tested at room temperature (77F/25˚C) NOTE: Oven sensor is so sensitive to temperature...

  • Page 36: Broil Heater

    Components Test procedures Results Normal: Approximately Broil heater 1. Refer to page 3-6 for the servicing procedure 14 Ω ± 10% 2. Measure the resistance after cooling down If not replace (Multiple meter scale: R x1) NOTE: Ω Value was tested at room temperature (77F/25˚C) Be careful the element is so...

  • Page 37: Appliance Outlet

    Components Test procedures Results Normal: Approximately 120V Appliance outlet 1. Test for voltage 2. If no voltage is present at outlet, Press the switch of located on the control console NOTE: The circuit breaker for the appliance outlet is rated for 15A, That may trip if the appliance plugged into it exceeds 15amps.

  • Page 38: Single Surface Unit(Lf, Lr, Rr)

    Components Test procedures Results Single surface units: 1. Refer to page 3-4 for the servicing procedure Left Front (LF), 2. Set the Multiple meter scale to the R x 1 Left Rear (LR) 3. Disconnect wires from cook-top elements 4. Touch the ohmmeter test leads to the element Right Rear(RR) terminal and 1A.

  • Page 39: Warming Zone

    Components Test procedures Results Center Rear(CR) 1. Refer to page 3-4 for the servicing procedure Element 2. Set the Multiple meter scale to the R x 1 ;Warming Zone 3. Disconnect wires from CR elements 4. Touch the ohmmeter test leads to the element terminal and 1A.
  • Page 40 Components Test procedures Results Dual surface element 1. Refer to page 3-4 for the servicing procedure : Right Front(RF) 2. Set the Multiple meter scale to the R x1 3. Disconnect wires from cook-top elements 4. Touch the ohmmeter test leads to the (E1 & 1A) and (E2 &...

  • Page 41: Composition Of Control

    COMPOSITION OF CONTROL Main PCB ( P/N : 6871W1N009F) Front Front Back Back Cook top display PCB ( P/N : 6871W1N010E) Controller assembly Front Back Cook top relay PCB ( P/N : 6871W1N011D) Key pad assembly Front Front Back Oven relay PCB ( P/N : 6871W1N012A) Back Front Back...

  • Page 42: Main Pcb

    COMPOSITION OF CONTROL Main PCB Main PCB P/N :6871W1N009F Main function ▶ Supply a DC power source (GND, -5V, -12V(Vry(oven heater switching)), -30V) ▶ Oven heater control (DLB / Broil / Bake / Warming drawer / convection) ▶ Oven display control ▶...

  • Page 43: Cook-Top Display Pcb

    COMPOSITION OF CONTROL Cook-top display PCB Cook-top display PCB P/N :6871W1N010E Main function ▶ Single radiant surface elements -Right Rear, Left Rear, Left Front- power level indication ▶ Dual radiant surface elements -Right Front inner, outer- power level indication ▶ Dual radiant surface element size indication -Right Front inner, outer ▶...

  • Page 44: Cook-Top Relay Pcb

    COMPOSITION OF CONTROL Cook-top relay PCB Cook-top relay PCB P/N :6871W1N011D Main function ▶ Supply a DC power source (GND, -12V (Vry(cooktop heater switching voltage)) ▶ Single Radiant Surface Elements -Right Rear, Left Rear, Left Front - on/off, power level relay switching ▶...

  • Page 45: Checking Flow Chart By Failure Mode

    CHECKING FLOW CHART BY FAILURE MODE No display (No power) Blank display Enter key input Some beep sound? Check AC input voltage of Main PCB Cook-top display -Main PCB CN2 (pin 1 and 3) blank? Check voltage – Main PCB(009F) CN14 (Pin 10 and 12) CN14(Pin 10 and 12) The voltage should be (-)4.5V ~ (-)5.5V...
  • Page 46 CHECKING FLOW CHART BY FAILURE MODE No display (No power) Blank display Enter key input Some beep sound? Check AC input voltage of Main PCB Warming drawer display blank? -Main PCB CN2 (pin 1 and 3) Check voltage – Main PCB(009F) CN16 (Pin 11) and CN9(Pin1) CN16(Pin11) Voltage should be (-)4.5V ~ (-)5.5V...
  • Page 47 CHECKING FLOW CHART BY FAILURE MODE No display (No power) Blank display Enter key input Some beep sound? Check AC input voltage of Main PCB Oven display blank? -Main PCB CN2 (pin 1 and 3) Replace the main PCB(009F)
  • Page 48 CHECKING FLOW CHART BY FAILURE MODE No display (No power) Check the harness of between L1~N Is it 120V AC? Normal? Disconnect power Replace the defective harness Check the power transformer (Refer to the below) Primary S3 S2 S1 Secondary Fig.1 Side Lead Color...

  • Page 49: Oven Does Not Heat

    CHECKING FLOW CHART BY FAILURE MODE Oven does not heat Code Error mode Operation Times/sampling No heating If current oven temperature does not exceed 150˚F and During cook less equal than start temperature over 5 minutes on preheating, where door is closed. (except proof and cook &...
  • Page 50 CHECKING FLOW CHART BY FAILURE MODE Oven does not heat Normal? Replace the bake heater Check the broil heater (measure the resistance after cooling down) Normal: approximately 14Ω Normal? Replace the broil heater Check the convection heater (measure the resistance after cooling down) Normal: approximately 17Ω...
  • Page 51 CHECKING FLOW CHART BY FAILURE MODE Oven does not heat Check the loose oven sensor connector Normal? Reconnect Check the oven sensor (measure the resistance after cooling down) Normal: approximately 1.09kΩ Normal? Replace the oven sensor Replace the oven relay PCB (012A) Normal? Replace the main PCB(009F) For further check of main PCB...

  • Page 52: Cook-Top Does Not Heat

    CHECKING FLOW CHART BY FAILURE MODE Cook-top does not heat No heating (All or a part of cook-top heaters) Disconnect power Check the loose connector board(011D PCB) to cook-top heaters and harness defective or not Normal? Reconnect. If defective harness, replace or fix Check the loose connector (main PCB(009F) CN9 and CN16) Continued on the next page...
  • Page 53 CHECKING FLOW CHART BY FAILURE MODE Cook-top does not heat Normal? Reconnect. Remove the cook-top relay PCB(011D) harness and pull the cook-top relay PCB(011D) forward from the PCB case Inspect the cook-top relay PCB(011D) Wide pattern(Live part) blown out pin to pin short or connector harness damaged Repairable Normal? by yourself?

  • Page 54: Oven Lamp Does Not Operate

    CHECKING FLOW CHART BY FAILURE MODE Oven lamp does not operate Oven lamp does not operate Disconnect power Check the loose of oven lamp terminal and harness Normal? Reconnect Check the loose connector (main PCB CN1) If defective harness, replace or fix Normal? Reconnect Check the oven lamp (measure the resistance)

  • Page 55: No Key Input

    CHECKING FLOW CHART BY FAILURE MODE No key input Key does not input Reconnect the main PCB connector CN11 and CN20 more than two times Normal? Some keys or All keys? Some Replace the main PCB(009F) Replace the main PCB Normal? Replace the keypad assembly 6-11...

  • Page 56: Failure Codes

    FAILURE CODES DISPLAY CAUSE CORRECTIVE ACTION WARNING SHOWS Warming A. Perform step 1 through 2 above • DISCONNET power supply cord from drawer B. Open the back panel and check continuity Sensor of the sensor and Control (PCB) the outlet before servicing. shorted C.

  • Page 57: Checking Flow Chart By F-Code

    CHECKING FLOW CHART BY F-CODE Key short error F-1 error Code Error mode Operation Times/sampling Key shorted When some key is continuously short for 60 seconds. Key short error (F-1) Plugged out and in the power, remove keypad-tail and check F-1 error recur or not, after one minute recur? Disconnect power...

  • Page 58: Door Lock System Error

    CHECKING FLOW CHART BY F-CODE Door lock system error F-2 error Code Error mode Operation Times/sampling Door Lock Fail In case of Door Lock Failure → Just after self-clean start, the door lock motor starts to rotate. During that time if the door lock switch does not operate properly after rotating twice, then supervising circuit detects a Door Lock failure and the F-2 error code appears.
  • Page 59 CHECKING FLOW CHART BY F-CODE Door lock system error F-2 error Normal? Replace the micro switch Check the door locking motor (measure the resistance) normal: approximately 2.6kΩ abnormal: infinite or below 5 Ω Normal? Replace the door locking motor Check the loose connector (Front) (main PCB CN4) Front Normal? Reconnect...

  • Page 60: Error

    CHECKING FLOW CHART BY F-CODE Door lock system error F-2 error Inspect connector pin solder of CN4 (Back) (main PCB CN4) Back ※ If pin solder is cracked, repair and re-use Cracked? Replace Repair and fix...

  • Page 61: Error

    CHECKING FLOW CHART BY F-CODE Main oven sensing error F-3, F-4 error Code Error mode Operation Times/sampling Opened Sensor Oven Thermistor remains open for over During cook 1 min, after cook starts Shorted Sensor Oven Thermistor is short for over 1 min During cook after cook starts Main oven sensing failed...
  • Page 62 CHECKING FLOW CHART BY F-CODE Main oven sensing error F-3, F-4 error Checking the loose connector (Front) (main PCB CN6) Check the loose connector (main PCB CN6) and look for harness terminals damaged or not Reconnect and Normal? replace the bad harness Remove the main PCB (009F) harness and pull the PCB (009F) forward from the PCB case Inspect connector pin solder of CN6 (Back) (main PCB CN6)
  • Page 63 CHECKING FLOW CHART BY F-CODE Warming drawer sensing error F-5, F-6 error Code Error mode Operation Times/sampling Shorted Sensor Warm Drawer Thermistor short Over 1 min after warm During operate drawer operates Warm Drawer Thermistor open Over 1 min after warm During operate Opened Sensor drawer operates...
  • Page 64 CHECKING FLOW CHART BY F-CODE Warming drawer sensing error F-5, F-6 error Checking the loose connector (Front) (main PCB CN5) Check the loose connector (main PCB CN5) and look for harness terminals damaged or not Normal? Reconnect and replace the bad harness Remove the main PCB(009F) harness and pull the PCB(009F) forward from the PCB case...
  • Page 65 CHECKING FLOW CHART BY F-CODE Oven too hot error F-9 error Code Error mode Operation Times/sampling Oven hot Oven temperature is over 650˚F During cook continuously during 2 minutes on cooking. (Not self clean mode) Oven is too hot (F-9) Disconnect power / Remove the oven relay PCB (012A) harness and pull the oven relay PCB (012A) forward from case...
  • Page 66 CHECKING FLOW CHART BY F-CODE Oven too hot error F-9 error Check the broil relay welded or not. (measure the resistance) Welded Normal Continuity Infinite Normal? Replace the oven relay PCB(012A) Replace the main relay PCB(009F) 7-10...

  • Page 67: Trouble Shooting

    TROUBLE SHOOTING PROBLEMS POSSIBLE CAUSES & FAULTS SOLUTIONS Oven not operating. • Bad power control board (PCB) • Test and/or replace PCB ➞ Refer to the page 6-1~6-4 • Power outage • Verify power is present at unit. • Verify that the circuit breaker is not tripped •...
  • Page 68 TROUBLE SHOOTING PROBLEMS POSSIBLE CAUSES & FAULTS SOLUTIONS Electronic timer will not • Failed main power control board • Replace power control board(PCB) accept Programming. Electronic timer will not • Failed main power control board • Replace power control board(PCB) accept Programming.
  • Page 69 TROUBLE SHOOTING PROBLEMS POSSIBLE CAUSES & FAULTS SOLUTIONS Oven door sagging on one • Hinge loose or out of position to • Adjust hinges or replace hinges side oven liner Door does not close • Broken or misadjusted door spring •...

  • Page 70: Schematic Diagram

    SCHEMATIC DIAGRAM NOTE:Schematic diagram shows door WARNING switch In the cook position with the oven POWER MUST BE door open and elements off. DISCONNECTED BEFORE SERVICING THE APPLIANCE WIRE COLORS SYMBOL COLOR WHITE BLACK YELLOW PINK BLUE BROWN GREEN GRAY...

  • Page 71: Strip Circuits

    STRIP CIRCUITS STRIP CIRCUITS Complete the following steps before checking electric oven circuit : 1.Check the line voltage, household fuse or circuit breaker. 2.Check for loose wiring or mis-wiring within electric range. NOTE: The following individual circuits are for use in diagnosis, and are shown in the ON position. BAKE / COOK &...

  • Page 72: Self-Cleaning

    WARMNING DRAWER SELF CLEANING...
  • Page 73 CLOCK DISPLAY ON CONV. BAKE / CONV. ROAST CR (Warming Zone)
  • Page 74 RR Cook-top Element LR Cook-top Element LF Cook-top Element RF Cook-top Element...

  • Page 75: Exploded View

    #EV# EXPLODED VIEW INTRODUCTION (I) CONTROLLER PARTS COOKTOP PARTS DOOR PARTS CAVITY PARTS DRAWER PARTS -10-1-...
  • Page 76 #EV# DOOR PARTS (I) 1023 W243 W225 1000 1402 1401 1024 1703 W149 W222 1018 1038 1410 W149 W101 W109 W238 W108 W108 W238 W149 1015 1410 W109 1403 1704 W149 W149 1704 1024 1020 1028 1009 -10-3-...

  • Page 77: Controller Parts

    #EV# CONTROLLER PARTS 2048 2044 W105 2006 2402 2404 W105 2018 2009 W105 2403 2030 2385 W108 2040 2039 3006 2038 2015 2033 W108 3006 2037 W108 2042 2034 2041 2036 W215 W108 -10-5-...
  • Page 78 #EV# COOKTOP PARTS 3014 3016 3056 W144 3303 3057 3302 9000 3301 3022 3303 3058 W105 W105 3058 3402 W105 W144 3402 3401 W144 3059 3401 W172 -10-6-...
  • Page 79 #EV# DRAWER PARTS (I) W144 8388 8513 W149 8514 8501 W109 W118 W228 8513 8507 W232 W144 W144 W118 W109 W144 8522 8519 W144 W144 W107 W149 8506 8517 W144 W144 W105 W105 W144 W144 8515 8503 W144 W172 W144 8504 8505 8512...
  • Page 80 #EV# CAVITY PARTS 5063 3063 5019 3013 5501 5510 5502 W231 3006 5504 W234 5517 5409 5404 5509 W146 W233 5506 5037 5407 5070 5514 5503 W231 W230 W241 W231 5511 W235 5507 W172 5516 W172 5516 5010 5508 4002 5505 W236 5518...
