GENERAL
This Instruction Supplement covers important information for
the use/adaptation of Model DT Direct Vent for pellet fired
appliance venting applications. In this application Model DT
provides necessary outside combustion air directly to the
appliance. It also covers information regarding
adaptation to Model UPP Vent. It is this adaptation which
makes it possible for Model DT to be utilized as a pellet stove
venting system.
Listing
In addition to being Listed as a direct vent system for gas fired
direct vent appliances, Model DT Direct Vent has been tested
and listed by Underwriters Laboratories, Inc. in accordance
with UL641, the Standard for Low Temperature Gas Venting
Systems and to CAN/ULC-S609 for Low Temperature Vents
Type PL for pellet stoves in which flue gas temperatures does
not exceed 570° F (300°C).
NOTE: Refer to the main Model DT Direct Temp installation
Instructions for further details on the use of this product.
(Flashings, Supports, Offsets, Adjustables ...Etc.) Read the
appliance installation instructions for any further installation
or layout restrictions.
Selkirk Model DT has a 4" inner liner and a 6-5/8" outer
jacket. It is permissible to adapt the Model DT to both a 3"
and a 4" pellet stove outlet collar. Model DT can be adapted
to Pellet Stoves with specially designed Adapters used in
conjunction with one or more components (Tee, Short Length
...etc.) of Model UPP Vent for Pellet Stoves. The installation
of Model UPP shall facilitate cleanout and removal of parts for
examination, repair and maintenance.

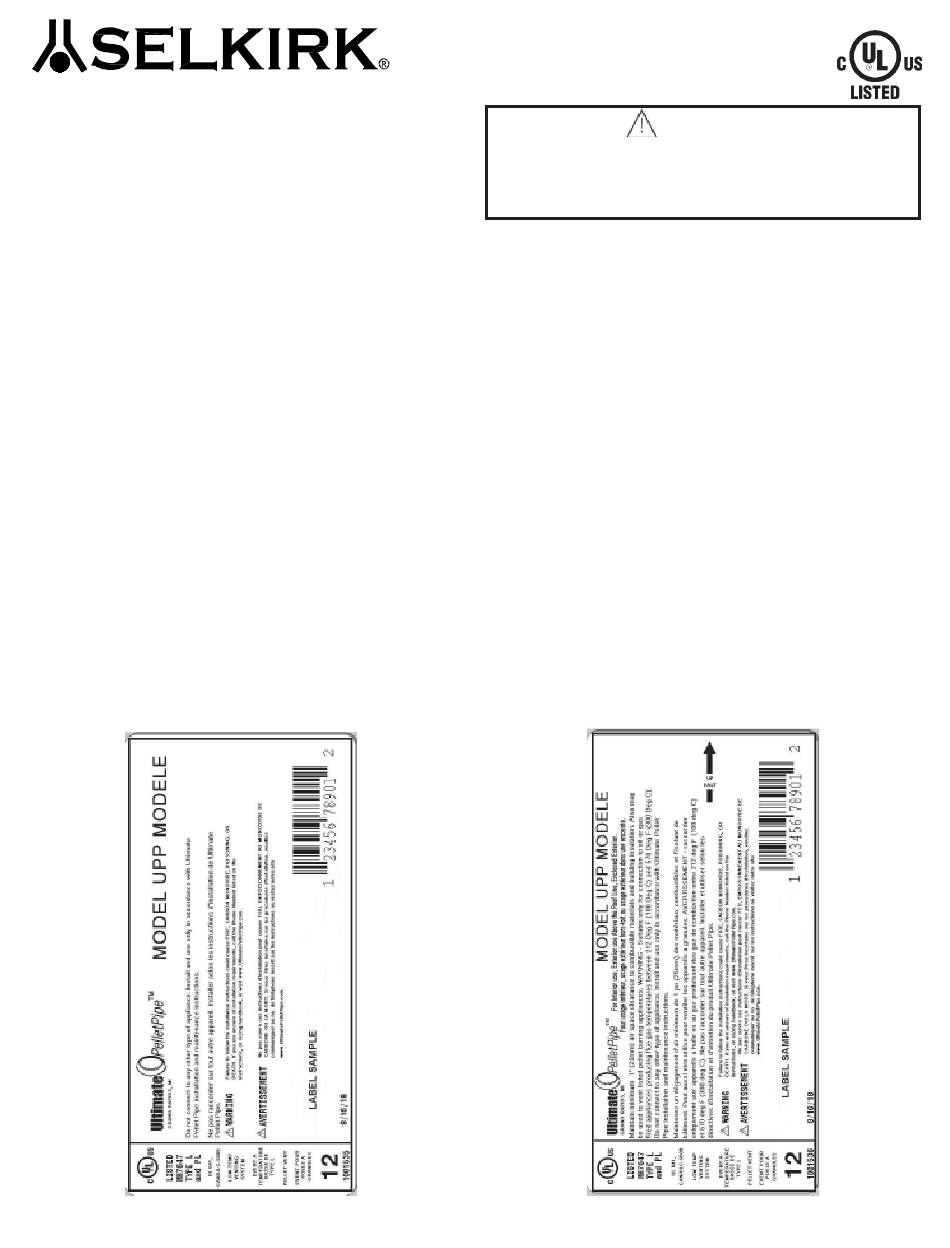

Certification Labels
INSTRUCTION SUPPLEMENT
3" & 4" MODEL UPP TO DT DIRECT VENT
FOR PELLET STOVE INSTALLATION
Failure to follow the installation instructions could cause
FIRE, CARBON MONOXIDE POISONING, OR DEATH. If you
are unsure of installation requirements, call the telephone
Model DT's
number listed on these instructions, or visit our website
www.selkirkcorp.com.
Minimum Clearance and Framing
Model DT has a 1" minimum airspace clearance to
combustibles requirement when used as L Vent. This applies
whether DT is being used to bring outside air to the pellet
appliance or not. Do not fill this space with insulation or any
other material. The airspace is required for the safe operation
of the vent. Model UPP has a clearance to combustibles
requirement of 1".
"Combustibles" include framing lumber, drywall, plaster,
plywood, paneling and other building materials.
For penetrating walls, ceiling joists or roof joists the required
framing dimensions for Model DT are 8-5/8" x 8-5/8". This
will provide a 1" clearance for a properly centered vent. A
Wall Thimble is available with framing dimensions of 8-3/4".
NOTE: While these instructions focus on proper installation
of DT when outside air is being drawn to appliance, if other
sources of combustion air are provided, DT may be used
with the combustion air passageway blocked, still at 1"
airspace clearance.
Planning and Layout
•
Refer to the appliance installation instructions for proper
layout requirements and restrictions.
