Marantz UD7007/N1SG Service Manual

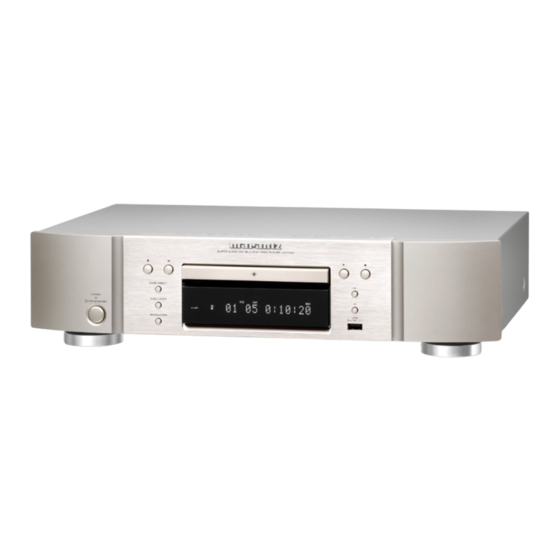

Super audio cd/ blu-ray disc player
Hide thumbs

Advertisement

Quick Links

Download this manual
Service
Manual
• For purposes of improvement, specifications and design are subject to change without notice.
• Please use this service manual with referring to the operating instructions without fail.
• Some illustrations using in this service manual are slightly different from the actual set.
S0674-1V05DM/DG1304
UD7007
Copyright 2013 D&M Holdings Inc. All rights reserved.
WARNING: Violators will be prosecuted to the maximum extent possible.
UD7007 /
SUPER AUDIO CD/
BLU-RAY DISC PLAYER
N1SG/N1B
U1B/K1B/S1B
Ver. 5
Please refer to the
MODIFICATION NOTICE.

Advertisement

loading
Need help?

Need help?

Do you have a question about the UD7007/N1SG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marantz UD7007/N1SG

Summary of Contents for Marantz UD7007/N1SG

  • Page 1 Service UD7007 / N1SG/N1B U1B/K1B/S1B Manual SUPER AUDIO CD/ BLU-RAY DISC PLAYER • For purposes of improvement, specifications and design are subject to change without notice. • Please use this service manual with referring to the operating instructions without fail. •...

  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS ............4 TROUBLE SHOOTING ............39 1. Power (Power Board) ............39 NOTE FOR SCHEMATIC DIAGRAM .........5 2. LED blinking ................40 NOTE FOR PARTS LIST ............5 3. Power board ................40 WARNING AND LASER SAFETY INSTRUCTIONS ....6 4. DISPLAY (Display Board) ............41 INSTRUCTIONS FOR HANDLING SEMI-CONDUCTORS 5.

  • Page 3: Note On Safety

    MARANTZ DESIGN AND SERVICE marantz Using superior design and selected high grade components, company has created the ultimate in stereo sound. marantz marantz Only original parts can insure that your product will continue to perform to the specifications for which it is famous.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS The following items should be checked for continued protection of the customer and the service technician. LEAKAGE CURRENT CHECK Before returning the set to the customer, be sure to carry out either (1) a leakage current check or (2) a line to chassis resistance check.

  • Page 5: Note For Schematic Diagram

    NOTE FOR SCHEMATIC DIAGRAM WARNING: Parts marked with this symbol z have critical characteristics. Use ONLY replacement parts recommended by the manufacturer. CAUTION: Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the unit is defective.

  • Page 6: Warning And Laser Safety Instructions

    WARNING AND LASER SAFETY INSTRUCTIONS WARNING WAARSCHUWING Alle IC’s en vele andere halfgeleiders zijn gevoelig All ICs and many other semi-conductors are voor elektrostatische ontladingen (ESD). susceptible to electrostatic discharges (ESD). Onzorgvuldig behandelen tijdens reparatie kan de Careless handling during repair can reduce life levensduur drastisch doen verminderen.

  • Page 7: Instructions For Handling Semi-Conductors And Optical Unit

    INSTRUCTIONS FOR HANDLING SEMI-CONDUCTORS AND OPTICAL UNIT Electrostatic breakdown of the semi-conductors or optical pickup may occur due to a potential difference caused by electrostatic charge during unpacking or repair work. 1. Ground for Human Body Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body. 2.

  • Page 8: Technical Specifications

    TECHNICAL SPECIFICATIONS n Performance Audio output characteristics : (1) Frequency response Signal format : NTSC, PAL Applicable discs /memory device : q BD (Linear PCM) : 2Hz ~ 22kHz (48kHz sampling) (1) BD-Video disc : : 2Hz ~ 44kHz (96kHz sampling) : 2Hz ~ 88kHz (192kHz sampling) 12 cm, 1 side, 1 layer;...

  • Page 9: Cautions In Servicing

    Refer to "MEASURING METHOD AND WAVEFORMS". When you repair the BD MECHA UNIT, you can use the following JIG. Please order to Marantz Official Service Distributor in your region if necessary. Do not supply it : 232C (TTL) – USB conversion jig (Model: DUT-06635 by GeeeTech) : 1 Set Part No.

  • Page 10: Disassembly

    DISASSEMBLY • Disassemble in order of the arrow in the following figure. • In the case of the re-assembling, assemble it in order of the reverse of the following flow. • In the case of the re-assembling, observe "attention of assembling". •...
  • Page 11 About the photos used for "descriptions of the DISASSEMBLY" section • The shooting direction of each photograph used herein is indicated on the left side of the respective photograph as "Shooting direction: ***". • Refer to the diagram below about the shooting direction of each photograph. •...

  • Page 12: Front Panel Assy

    1. FRONT PANEL ASSY → LOADER PANEL → AUDIO PCB Bracket Proceeding : TOP COVER FRONT PANEL ASSY (1) Detach the LOADER PANEL. Shooting direction: B Pressed in metal rod having a mechanism for emergency open, stretched out like a small hole on the left side of the clip to. (2) R emove the screw on the top of Front Panel.
  • Page 13 Lift up to unhook the claw and move in the direction of arrow to gradually pull out the assembly. Top side ×4, Side ×2 (Left and right), Bottom ×3 Top side Shooting direction: D Side Bottom side Disconnect connector wire and FFC. Remove the screw (x1)
  • Page 14 Remove the screw. (x8) BALANCED OUT/AUDIO OUT are long screw. Remove the PCB Bracket. As shown in the figure raised to PCB Bracket, disconnect the FFC. Then, remove in one piece, the board and the bracket. Disconnect the connector wire and FFC. Cut the wire clamp.

  • Page 15: Bd Mecha Unit Assy

    2. BD MECHA UNIT ASSY Proceeding : TOP COVER MECHA COVER → AUDIO PCB Bracket → BD MECHA UNIT ASSY ※ Please ensure ESD protection prior to handling the BD MECHA. (1) Remove the screws. Screw of Mecha cover ×2, Right/Left (Each x2) (2) Peeling off the sponge.
  • Page 16 (3) Remove the screw. (x4) (4) Disconnect the connector wire and FFC cable. 45P-FFC【J2】, 9P-FFC【J4】 From the left side of the BD's Mecha.

  • Page 17: Main Pcb Unit Assy

    3. MAIN PCB UNIT ASSY Proceeding : TOP COVER → AUDIO PCB ASSY MAIN PCB UNIT ASSY → (1) R emove the screws. Remove the screws from REAR PANEL ×3 Remove the screws from TOP ×4 (2) Disconnect the connector wire and FFC. Disconnect 13P-FFC【XP8】, 12P-PH【XP1】 Remove all connectors.

  • Page 18: Power Pcb Unit Assy

    4. POWER PCB UNIT ASSY Proceeding : TOP COVER POWER PCB UNIT ASSY → (1) Remove the screws. Remove the screws from TOP ×5 (2) Disconnect the connector wire and FFC. Disconnect 12P-PH【CN502/503】 , 3P-VH【CN501】...

  • Page 19: Ir Pcb Unit Assy

    5. IR PCB UNIT ASSY Proceeding : TOP COVER IR PCB UNIT ASSY → (1) R emove the screws. Remove the screws from REAR PANEL ×3 (2) Disconnect the connector wire and FFC. Disconnect 13P-FFC【XP8】 【XP8】...

  • Page 20: Removing Discs

    REMOVING DISCS (1) Remove the Top Cover. (2) Open the CD tray. Pressed in metal rod having a mechanism for emergency open, stretched out like a small hole on the left side of the clip to. Shooting direction: D...

  • Page 21: Diagnostics Of Optical Pickup

    DIAGNOSTICS OF OPTICAL PICKUP Make failure diagnostics of the Optical Pickup as follows. q If the laser drive current (Iop) becomes more than BD : ± 6 [mA], DVD or CD : ±12 [mA] of the initial value, the Optical Pickup should be replaced.

  • Page 22: Iop Checked Method

    1. Iop checked Method Select the laser ON/OFF(CD/DVD/BD)mode of the test mode, and check the Iop value of CD laser, DVD laser or BD laser. (Refer to "6. Test mode") FL Display (The display part of 13 digits) L a s e r O n O f f Laser current check Press the "...

  • Page 23: How To Replace The Main Pcb & Bd Mecha Or Bd Mecha

    HOW TO REPLACE THE MAIN PCB & BD MECHA OR BD MECHA NOTE: The optical pick-up laser diode (LD) is instantly degraded or damaged by static electricity or a power surge. When handling the BD MECHA UNIT, always be sure to earth yourself, and use an earth mat on the workbench and floor for grounding.
  • Page 24 [Connection] (1) Remove the Audio PCB bracket. (2) Connect the 232C (TTL) side 4P PH connector of the USB - 232C (TTL) conversion jig to the MAIN PCB of the set. (3) Connect the USB side of the USB - 232C (TTL) conversion jig to the PC. 4P RE-PH CONN CORD (1000mm) USB - 232C(TTL) conversion jig MAIN PCB...
  • Page 25 [Writing new optical pick-up data ] • Barcode position of optical pick-up unit View from the top 1Dimensional Bar Code BD MECHA for replacement (1) Switch on the power on of the set before the BD MECHA is replaced. (2) Decompress the 5.12.71(8550+KES470)_1Dscan.zip folder and start the "Rpower.exe". (3) A pop-up is displayed.
  • Page 26 On the screen below, select "ComPort XX". Select the USB - 232C (TTL) conversion jig port. Enter the Bar Code BOX 32-digit hexadecimal number listed at the bottom of one-dimensional bar code replacement for the BD MECHA. One dimension of bar code data can stick to reading, Bar Code BOX in bar code leaders and can input. NOTE: The bar code data of the optical pickup, please do not enter the wrong data.
  • Page 27 Click Write(F2). When “Pass” changes to green, writing to the Flash ROM of the MAIN PCB is complete. Switch off the set unit power, and remove the 232C (TTL) side 4P PH connector of the USB - 232C (TTL) conversion jig from the MAIN PCB (CON1).
  • Page 28 2.4. Replace the BD MECHA UNIT ASSY (1) Remove the MECHA COVER. MECHA COVER (2) Move the optical pickup to the outer circumference, remove the FFC, and remove the screws. J1 45P-FFC XP8 9P-FFC 5P-PH CORD BD MECHA (3) Attach the BD MECHA for replacement to the set unit. (When assembling the unit, perform the steps in reverse order.) (4) Check that the 45P-FFC, 9P-FFC and 5P-PH connector cords have been connected.

  • Page 29: How To Replace The Main Pcb Unit Assy

    HOW TO REPLACE THE MAIN PCB UNIT ASSY ・Service Part for the MAIN PCB UNIT ASSY MAIN PCB: (Part No. :9196391D) 1.1. Devices Used (1) PC (2) USB - 232C (TTL) conversion jig (Model: DUT-06635 by GeeeTech) (Do not supply) (3) 4P RE-PH CONN CORD (1000mm) (Part No.

  • Page 30: Operation Check

    1.6. Operation check (1) Connect the 45P FFC of J1. J1 45P FFC (2) Attach the MECHA COVER. (3) Attach the TOP COVER. (4) Follow the firmware update procedure, and update the firmware to the latest version. (see "VERSION UPGRADE PROCEDURE OF FIRMWARE") (5) Check the laser amperage (see laser on/off mode in the test mode (page 34)).

  • Page 31: Service Mode

    Front-end and Back-end and SYS com version check mode. Press the "SETUP" button on the remote controller to display the SETUP menu. Press remote controller "3265". The version is displayed on the TV screen as follows. marantz General Setting Version HQ 0000xxxx...

  • Page 32: Tray Lock Mode

    3. Tray lock mode 3.1. preparation Equipment used: None Unit setting: No spec other than the following procedure. 3.2. procedure [Setting] Pressing the " 1 " and " 8 " buttons for simultaneously, plug the AC cord into a power outlet. "TRAY LOCK"...

  • Page 33: Test Mode

    6. Test mode 6.1. Entering the test mode The test mode is entered by pressing the " 5 " and " 8 " buttons simultaneously, plug the AC cord into a power outlet. When the test mode is set, the " 1 " and " 3 " indicators light. FL tube display when test mode entered FL Display (The display part of 13 digits) When the test mode is set, the choice screen of the mode appears on the monitor.
  • Page 34 6.3. About each mode ・ With the mode selected, press the " 1 " button to set that mode. (1) Laser on/off (CD/DVD/BD) mode Press the " 8 " or " 9 " button to select [X] and press the " 1 " button to set it. Laser on/off control is executed and the laser current is displayed.
  • Page 35 (3) Accumulated laser on time display mode Press the " 8 " or " 9 " button to select [Y] and press the " 1 " button to set it. The accumulated laser on time is displayed. FL Display (The display part of 13 digits) (Y=1 : CD, 2 : DVD , 3 : BD, mmmmmm : Time(Fractions of hours are counted up one hour on the display.) When the "...
  • Page 36 6.4. Stopping the mode When the " 2 " button is pressed, the layer above the current layer is displayed. The relationship between the different modes and the display of the different layers is shown on the table below. Mode 1 layer 2 layer 3 layer...

  • Page 37: Measurement Position

    Error rate display details for each media type Measurement Remarks position The inner It is invalid. It is invalid. It is invalid. When this is selected for BD, DVD or circumference of CD, T84 FFFFFFFFFF display. 2-layer The inner LDC error detection PI error detection It is invalid.

  • Page 38: Procedure Firmware For Upgrading The Version Of The Firmware

    PROCEDURE FIRMWARE FOR UPGRADING THE VERSION OF THE FIRMWARE You can update by downloading the latest version from the Internet. 1. Update from the Internet 1.1. preparation (1) System requirements • Internet Connection by Broadband Circuit • Modem • Router •...

  • Page 39: Trouble Shooting

    TROUBLE SHOOTING 1. Power (Power Board) 1. Power does not turn on. Power does not turn on. POWER_LED is not blinking red. Refer to "2. LED blinking". Check abnormalities of the circuit of a primary side. (Such as D501,D502,D503,D504,Ce501,Q501,U501) Is the fuse of F501 normal? Defect parts should be exchanged.

  • Page 40: Led Blinking

    2. LED blinking POWER_LED is blinking red. Check abnormalities of the connection circuit of +5V. PC0N (CN502#2) and +5V (CN502#3) are measured (Such as Q512,Q505) simultaneously. Defect parts should be exchanged. Before PCON is set to "L", +5V has not carried out When there are no abnormalities in a POWER board, voltage drops.

  • Page 41: Display (Display Board)

    4. DISPLAY (Display Board) FL TUBE doesn't light. Does not appear when press the "DIMMER" on the May be DIMMER was working. remote control. Also, May be "PURE DIRECT" was working. To replace the parts to check there is nothing wrong CHeck VFD_RST(U2#9).

  • Page 42: Hdmi

    5. HDMI No picture or sound is output. Is the set in "PURE DIRECT MODE" "Off"? Set the "PURE DIRECT MODE" "Off". Is a contact part of HDMI JACK P3, P4 normal? Is there no damage around the contact where HDMI Replace the HDMI JACK.

  • Page 43: Usb

    7. USB Does not recognize the USB. Is there nothing wrong with the USB connector P1 of the Display PCB? Is there no damage around the contact where USB Replace the F.PANEL ASSY cable are inserted. Are there no bad solder joints? Is there is nothing wrong with the 4P cable JP1 of Display PCB? Replace the F.PANEL ASSY...

  • Page 44: No Audio Output

    8. No Audio output There is no output from the (2P RCA) ANALOG output. Terminal P1, P2, XLR (K1, K2) pin jack on the Main PCB There is nothing wrong with the Not bad, abnormal Replace the RCA PIN JACK or XLR JACK. soldering or the like.

  • Page 45: Disc Playback Error

    9. Disc playback error Disc playback error Is 45P FFC inserted properly to J1 of Main PCB? 45P FFC inserted into the J1. Is 9P FFC inserted properly to XP8 of Main PCB? 9P FFC inserted into XP8. Is 5P PH connector inserted properly to XP7 of Main 5P PH connector to be inserted into the XP7.

  • Page 46: Personal Notes

    Personal notes:...
