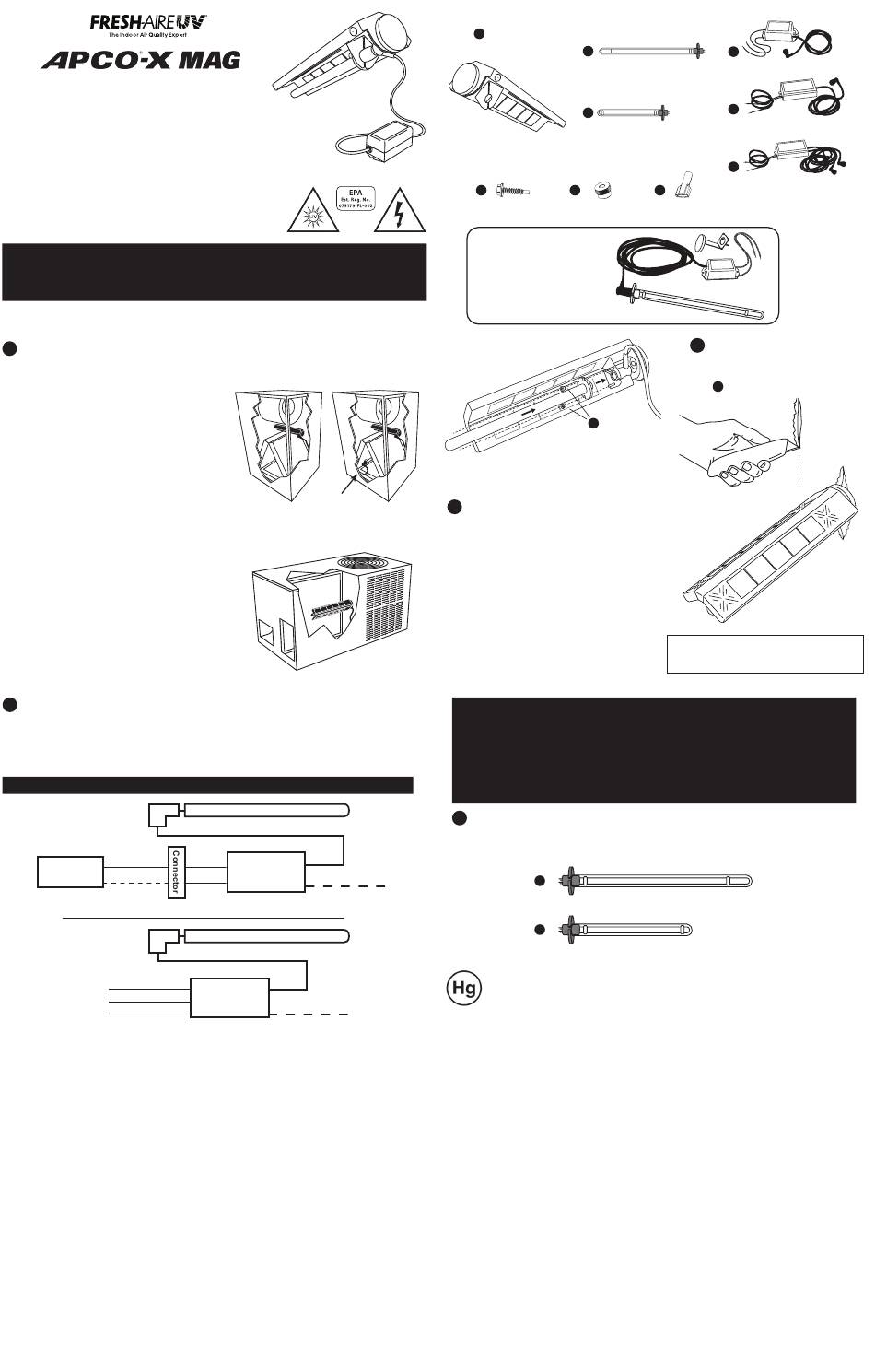

Fresh-Aire UV APCO-X MAG Manual

AIR TREATMENT SYSTEM
APCO-X MAG is usually installed inside the central air handling
system. Orient so the air flows past the UV light first before the
carbon. Position the unit so the UV light does not shine directly
on non-uv-resistant materials (filters, humidifiers, flex duct, etc.).
Ideally the UV light shines on the coil.
For dual systems select a remote UV light location that shines
on the greatest surface area or the area with the most
microbial growth. Refer to the Optional Remote UV Light
section for installation instructions.
IMPORTANT!
• Only qualified technicians should install this product*
• Install in accordance with relevant building codes
• Read instructions carefully including safety warnings
*Installation of this product by anyone other than licensed HVAC or electrical contractors voids warranty.
© Fresh-Aire UV LIT-FAUV-APCO-X-MAG-MAN 022322
1 Installation Notes
The APCO-X MAG is usually installed inside the
central air handling system. The unit should be
oriented so that the air flows past the UV Light
first then into the Matrix Element but a reversed
installation is permitted if mounting on the return-
side of the coil.
A second remote UV lamp is included with APCO-X
MAG Dual. Select a location inside the air system
that will allow it to shine on the greatest surface
area or the area with the most evident microbial
growth. To install the secondary UV light use
the Optional 2nd Remote UV Light Installation
Instructions provided with APCO-X MAG Dual.
4
Connecting to Power
IMPORTANT
Before connecting to power confirm which APCO-X Mag model is being installed. Turn off
main power source before installation. Always use proper conduit fittings and terminations.
IMPORTANT! Must be wired to constant power - do not connect to blower relay.
4 PIN
CONNECTOR
APCO-X MAG
ER
BLACK
COMMON / BLUE
WHITE STRIPE
HOT / RED
24 VAC TRANSFORMER
Connect to load side of 24 VAC transformer
4 PIN
CONNECTOR
APCO-X MAG
ST/DT
L1 - BLACK
L2 or N - WHITE
GND - GREEN
WARNING!
PROTECT EYES FROM UV LIGHT
TURN OFF UNIT OR DISCONNECT
BEFORE SERVICING
US patent #7,704,463
Typical installations include:
Air Handler
2nd UV Lamp
Single in air handler Dual in air handler
Package Unit
UV LAMP
BLACK
24 VAC
RED POWER SUPPLY
Optional 2nd UV Lamp
UV LAMP
110-277 VAC
POWER SUPPLY
Optional 2nd UV Lamp
APCO-X MAG Parts List
15" UVC Lamp
A
Main Unit
B
PART: TUVL-315 LIFE: 3 Year
11" UVC Lamp
C
PART: TUVL-311 LIFE: 3 Year
Small Parts
G H
Self-tapping Screws Quick Nut (plastic)
2nd Remote UV Light
(APCO-X Mag Dual only)
See second page for
installation instructions
H
1.
3
Air Handler Interior
Surface Installation
1.
Determine the optimal position for
placement of APCO-X MAG inside the air
system.
2.
Use a utility knife to cut a slit in the
insulation on the interior surface.
3.
Place the magnetic mounting bracket
directly on the metal surface or remove the
magnet and hard-mount the bracket using
the self-tapping screws provided. Use foil
tape to close the cut in the insulation.
Systems with high 24 VAC loads may require the installation of a separate 24 VAC
transformer to power the UV light.
Always use a separate 24 VAC transformer with "communicating" air systems.
Draws 16 VA, may need to do load calculation: Volts under load X Amps under load.
5
Lamp Replacement
The UV lamp in APCO-X MAG (model TUVL- 315 or TUVL- 311) should be replaced every 3 years.
Note: UV lamps will continue to emit visible light but lose germicidal effectiveness over time.
B
C
CAUTION!
UV Lamps contain small amounts of mercury - dispose of lamps in accordance with
local environmental regulations. For more information visit www.lamprecycle.org
Note: Use of replacement UV lamps other than Fresh-Aire UV® voids warranty.
Power Supply
D
ER Power Supply (low voltage)
E
ST Power Supply (line voltage)
F
DT Dual Power Supply
I
Spade Connector
2 Mount Lamp
Mount the UV Lamp to the APCO
MAG unit as shown using 2 quick
nuts
.
H
2.
Important! do not install the mounting
magnet within 12" of digital signal
devices as this may cause interference .
IMPORTANT!
TUVL-315
TUVL-311
3.
