Fresh-Aire UV Blue-Tube UV-X Installation Instructions

Blue-Tube UV-X
Installation Instructions
Blue-Tube UV-X is installed inside
the HVAC system to reduce
biological contamination for
reduced system maintenance and
improved indoor air quality.
IMPORTANT!
• Only qualified technicians should install this product*
• Install in accordance with relevant building codes
• Read instructions carefully including safety warnings
*Installation of this product by anyone other than licensed HVAC or electrical contractors voids warranty.

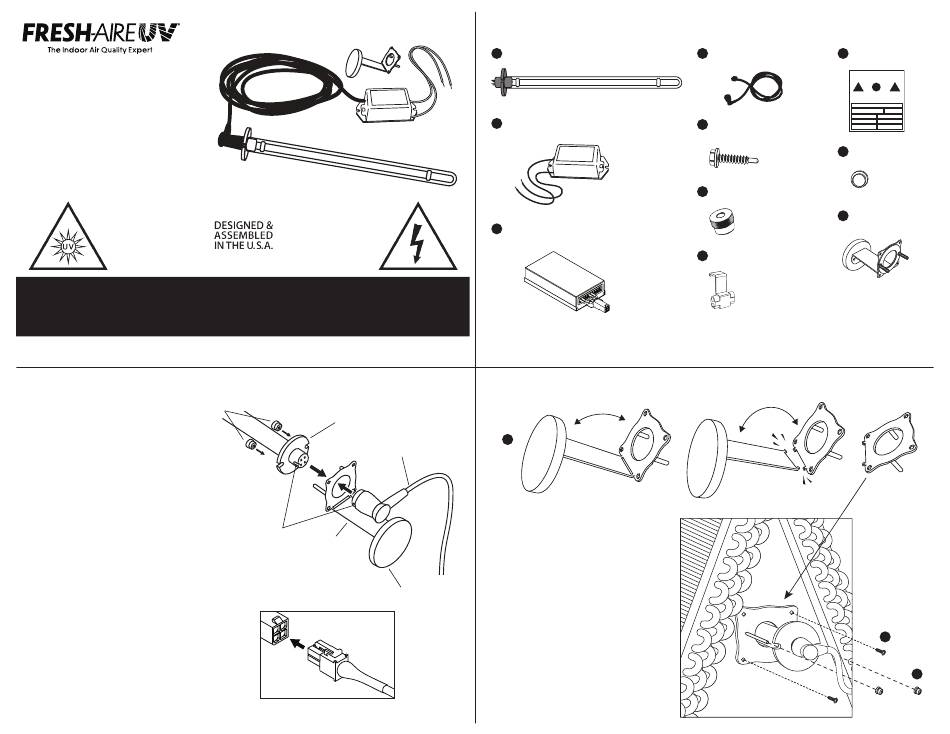

STEP 1: Lamp, Cable & Mounting Magnet Assembly
Quick Nuts
1. Pass lamp base through hole in
magnetic mounting bracket.
2. Align keys on lamp and cable,
press firmly together.
3. Fasten the lamp base to the
magnetic mounting bracket
using quick nuts.
STEP 2: Cable Routing & Power Supply
1. Determine the best location for the power
supply close to the air system's electrical
components.
2. Route the lamp cable through the air system to
the power supply.
3. Connect the lamp cable to the power supply
by aligning the square connectors, then press
firmly together until latch catches.
US patent #7,704,463
WARNING!
PROTECT SKIN & EYES FROM UV LIGHT
TURN OFF UNIT OR DISCONNECT
BEFORE SERVICING
© Fresh-Aire UV
Lamp Base
Keys
Mounting
Bracket

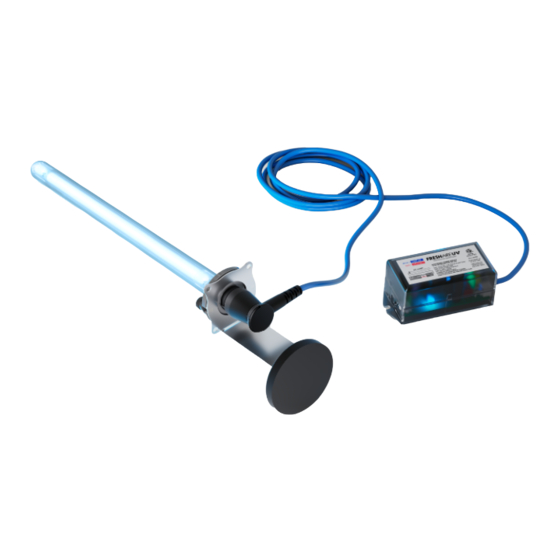

Blue-Tube UV-X Parts*
A PART: TUVL-315 LIFE: 3 Year
B "ER" 18 - 32 VAC Power Supply
C
"ST" 110 - 277 VAC Power Supply
*Parts included with your kit will vary depending on model.
STEP 1B: Coil A-Plate or Duct Mounting
Z
Cable
1. For A-plate and duct mounting
start by snapping the magnetic
mounting bracket apart by
bending.
2. Drill a 1" hole in the A-plate or
duct then attach the smaller
Magnet
piece of the bracket using the
self-tapping screws.
3. Insert the UV lamp into the hole
then use the plastic quick-nuts
to attach the UV lamp to the
magnetic mounting bracket as
shown.
D Lamp Cable H
E Self-tapping Screws
F Quick Nuts (plastic)
G Tap-in Connector
1.
3.
WARNING
Panel sticker
WARNING
I Sight Glass
J Magnetic Mounting
Bracket
2.
E
F
