Installation
1. Turn off power to the air handler
2. Remove the existing filter from the 2" slot
3. Add foam padding strips (included) to frame as needed to assure a tight fit
4. Insert PLP into 2" slot
5. Power the Purity Low Profile (PLP)
A. Use a 110/24 VAC, 40 VA, Class 2 plug-in adapter power supply.
(Part # TUVP-40VA24VAC-WP sold separately)
or
B. Locate the 24 volt AC power source in your HVAC system then connect
the leads of the power cord illustrated in the electrical wiring diagram.
See diagram (Fig. 1)
WARNING: Electrical work should be done by a
qualified electrician or HVAC technician
TANDEM INSTALLATION
1. Mechanically hook-up filter panels at the bottom (See detail "A")
2. Snap top latches (See detail "B")
3. Electrically connect the filter panel (See detail "C")
POWER CONNECTION
By a licence electrical contractor (See "Control Box" instruction)
POWER CONSUMPTION
• 2 VA for each filter, one 24 Volts transformer can be used to power all filters
• Use only 24 VAC to power filters
2"
INSTALLATION
& MAINTENANCE
INSTRUCTIONS
IMPORTANT!
• Only qualified technicians should install this product
• Install in accordance with relevant building codes
• Read instructions carefully including safety warnings

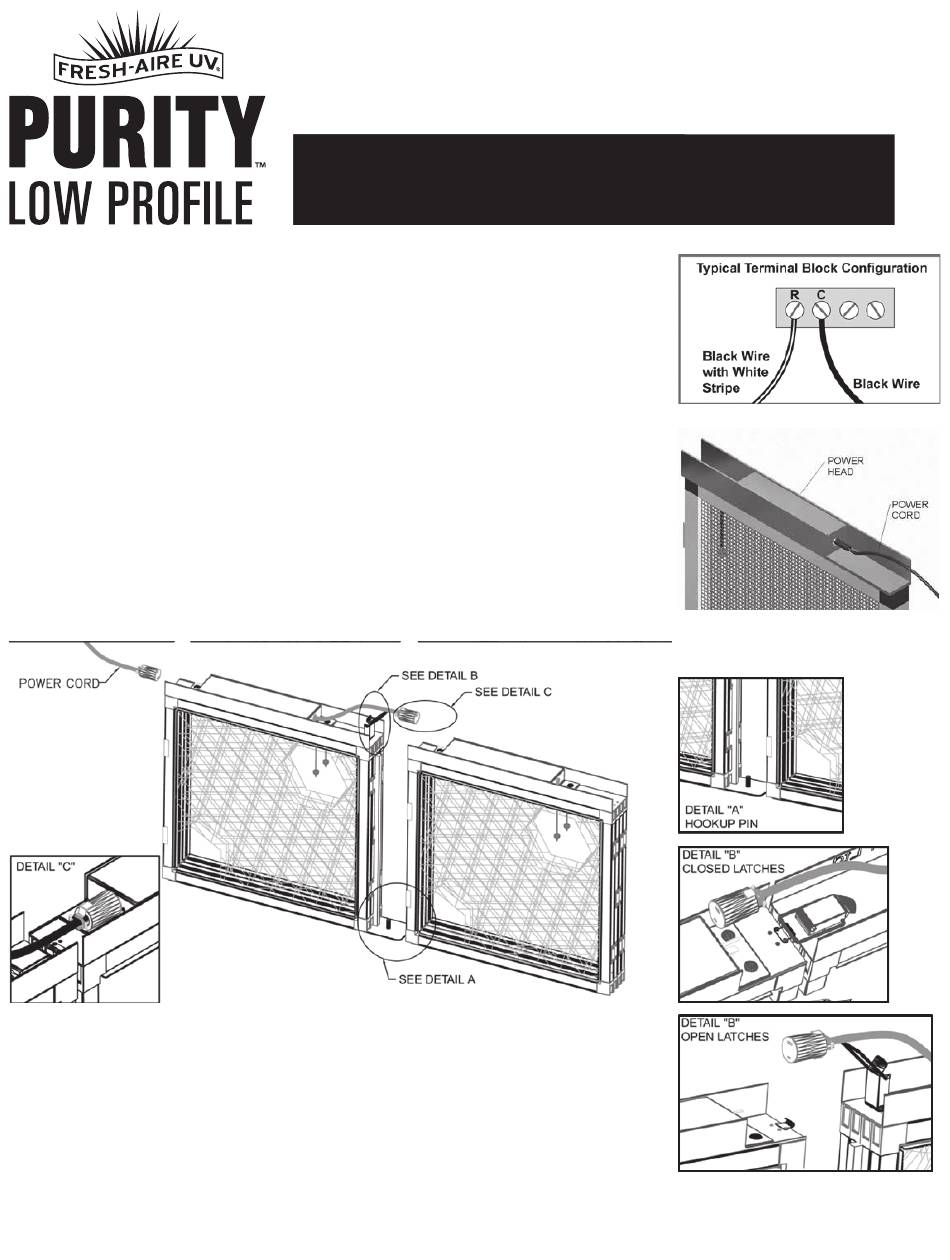

Fig. 1 HVAC Wiring
Fig. 2 Power Cord
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fresh-Aire UV PURITY LOW PROFILE
Summary of Contents for Fresh-Aire UV PURITY LOW PROFILE
- Page 1 3. Add foam padding strips (included) to frame as needed to assure a tight fit 4. Insert PLP into 2” slot 5. Power the Purity Low Profile (PLP) Fig. 1 HVAC Wiring A. Use a 110/24 VAC, 40 VA, Class 2 plug-in adapter power supply.
- Page 2 Collector Pad Replacement 1. Turn off the power on the HVAC system. 2. Open the air handler filter access door. 3. Unplug the 24 volt power-cord and remove the PLP from the filter slot 4. Clean heavy accumulated dust on the outside screen with a vacuum. 5.
