Summary of Contents for 9dot SPMS SPI

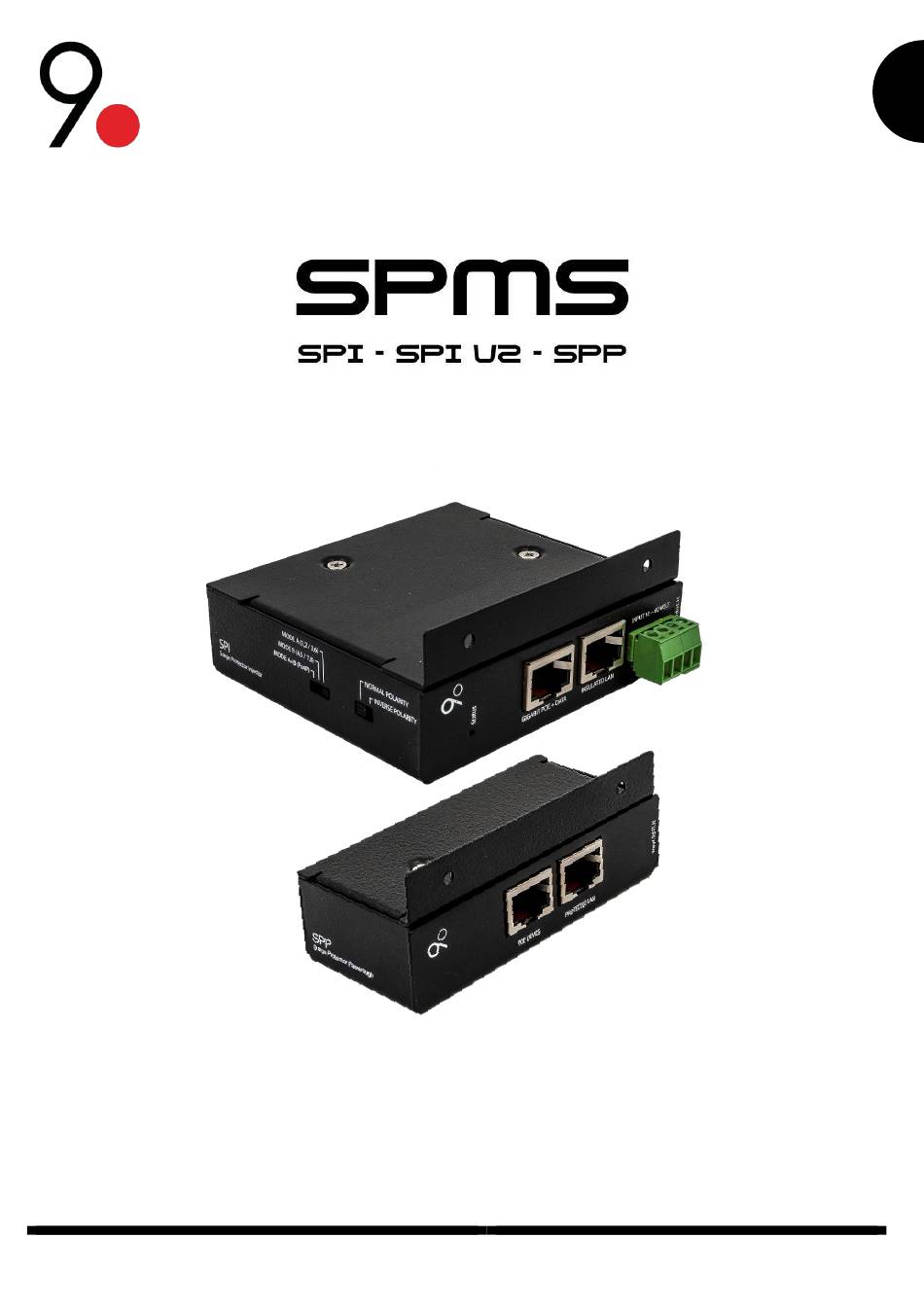

- Page 1 SPI & SPP MANUAL VER. 2 REV. 1...
-
Page 2: Table Of Contents
Important notes..................................... 3 Safety ........................................4 General warnings and precautions ................................. 4 Certifications and compliances ................................4 Guarantee ......................................4 General description ....................................5 SPI/SPI V2 ......................................5 SPP ........................................7 Label ..............................................8 Technical specifications ..................................9 Installation ......................................11 Quick setup .................................................. -
Page 3: Important Notes
• 9dot will not be liable for eventual damage or injury involving its hardware if it is used in any way inconsistent with its intended purpose, or if it is installed or used in an untested manner or is improperly maintained. -
Page 4: Safety
This manual contains important safety instructions that must be followed during installation, operation, and maintenance of the product. If you have any questions regarding the safe installation or operation of this product, please contact 9dot or your nearest 9dot representative. -
Page 5: General Description
General description Smart Power Module System (SPMS) is a modular system for powering Power over Ethernet devices with different pin out. Each module performs its function independently and guarantees maximum reliability and protection. The products that make up this solution are: •... -
Page 6: Mode Selector
Figura 2 - SPI side view GROUNDING On the back of the module is the grounding connector. For correct operation of the arresters, it is necessary to connect the GND earth terminal. MODE SELECTOR It allows to power all PoE systems with the operating modes: A, B, A + B. POLARITY SELECTOR Allows you to select the polarity between normal and reverse. -
Page 7: Spp
Surge Protector Passthrough is a passthrough surge arrester that can be plugged into a Power over Ethernet line to prevent damage caused by surges. The device integrates surge protection on the output Figure 3 – SPP module isometric view “POE DEVICE” PORT Gigabit port to connect the device to be powered (input). -
Page 8: Label
Label These devices come with a label attached with the relevant information, which we will describe below. Figure 5 – label example of SPI and SPP As we can see, the label shows: • The product code: SPI / SPP, with its short description. •... -
Page 9: Technical Specifications
Technical specifications SPI & SPI V2 MODULES Product code SPI V2 ELECTRICAL SPECIFICATIONS Operating voltage [V] Clamps: +/- 10 to 60 AC/DC Main power connector 2 x cable terminals 2 x 1.31 mm Active protection Against polarity inversion on both power connectors Self-consumption power [W] <... - Page 10 SPP MODULE Product code ELECTRICAL SPECIFICATIONS Operating voltage [V] Clamps: +/- 10 to 60 AC/DC GND connector Screw M4 Typical current per port [A] (*) Peak current protection [kA] Overvoltage protection [V] Protection mode All the lines (1-8) Protected (L-L) and (L-G) SPD technology 2 phases: TVS and GDT NETWORK SPECIFICATIONS...
-
Page 11: Installation
(Optional) Insert the modules on the rack bracket or on the din bar. • Wire the power supply (Optional standalone ACDC-48 or ACDC-24 power supplies provided separately by 9dot). • Connect the power supply pins of the power supply to each module. -
Page 12: Physical Interface
All these accessories are sold by 9dot and must be purchased separately. Below is the detail: Product code (*) Description Staffa Rack-B Standard 19" 2U rack adapter for max 12 CMD / ASPI / SPI / SPP. Black color Clip-Din... - Page 13 SPI/SPI V2 Output power supply The main function of the PoE injector of this device is to allow the powering of other equipment on the network. SPI/SPI V2 PoE injector modules are passive injectors. IMPORTANT NOTE: Unlike active PoE, passive PoE does not use any protocol to determine the type of device to be powered; it applies a type of voltage to its port without identifying which type of PoE standard or supply voltage the connected load is compatible with.
-
Page 14: Usa And Canada
Official distributors EUROPA, ASIA & AFRICA Telcomms Srl Skylinks Telecoms VanCo Via Giuntini 25 int. 22 Unit 31, Ramstown, Gorey Business Park, Co. U Čokoládoven 9 56023 Navacchio (PI), Italy Wexford, Y25 HC67, Ireland 143 00 Praha 12, Czech Republic (+39) 050 8068086 0402 21955 +420 246 035 451... - Page 15 Visit us on our website: www.9dot.it Trademarks 9dot is a registered trademark of 9dot S.r.l in the European Union and the United Kingdom. Copyright © 2020 9dot. All other registered and unregistered trademarks in this document are the exclusive property of their respective owners.
