- Page 1 8INJ MANUAL VER. 2 REV. 0...
-
Page 2: Table Of Contents
Safety ......................................4 General warnings and precautions ............................4 Certifications and compliances ..............................4 Guarantee ....................................4 General description ..................................5 Features 8INJ ....................................7 Manages any kind of PoE ..........................................7 Surge protection ..............................................7 More power ................................................ 7 Compact design ..............................................7 Label ........................................... 8 Technical specifications ................................9... -
Page 3: Important Notes
9dot will not be liable for eventual damage or injury involving its hardware if it is used in any way inconsistent with its intended purpose, or if it is installed or used in an untested manner or is improperly maintained. -
Page 4: Safety
Review the drawings and illustrations in this manual before proceeding. If you have any questions regarding the safe installation or operation of this product, please contact 9dot or your nearest 9dot representative. Please keep it in a safe place for future reference. -
Page 5: General Description

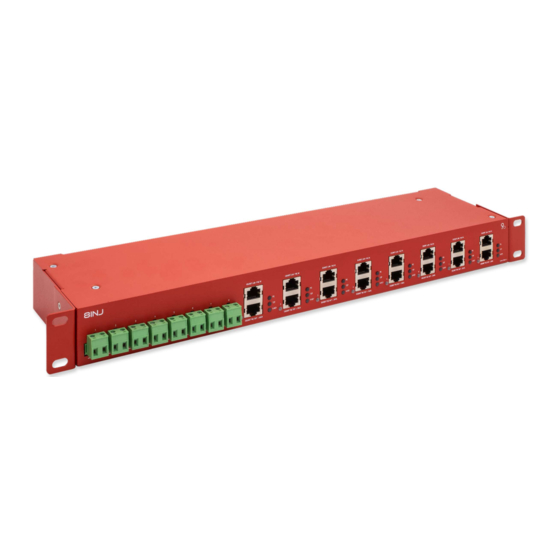

General description 8INJ is a Power over Ethernet injector with integrated surge protection device belonging to the Smart Power Module System family: a simple system designed to power up to 8 PoE devices where Plug n 'Play is required. Each PoE port works independently and ensures the highest level of reliability and security. - Page 6 Figure 2 - 8INJ rear view GIGAKEY This image indicates the correct position for inserting the GigaKeys, with the serigraphy facing upwards. GIGAKEY SLOT On the back of the unit there are slots for inserting the GigaKey keys that allow you to select the output pin of the PoE port without the use of microswitches in order to provide PoE to a wide range of devices.
-
Page 7: Features 8Inj
8INJ features Manages any kind of PoE Each port can be configured to handle a different type of PoE injection map. The configuration of the power pin out is simple and does not require any IT skills: just insert the specific electronic GigaKey and the port is configured. -
Page 8: Label
This device is equipped with a label with the relevant information, which we will describe below. Figure 3 – 8INJ label example As we can see, on the label it says: • The product code: 8INJ, with its short description. • The serial number. •... -
Page 9: Technical Specifications
GS-K-AB or GS-K-9.S because both use all four pairs of conductors for power supply. If instead we use the other GigaKeys: GS-K-B or GS-K-BR, the typical current per port will be 1.5A See the “GigaKey” section 8INJ MANUAL VER. 2 REV. 0... -
Page 10: Installation
Installation The 8INJ is designed for installation in a 19 "rack cabinet, however the fixing flaps can be rotated 90 ° for wall mounting. IMPORTANT NOTE: Use only the parts supplied with the device for fixing the fins; the use of different parts can cause irreparable damage to the device. -
Page 11: Physical Interface
GigaKey, thus allowing it to power a wide range of devices on the market. To find out if your PoE device can be powered via 8INJ, just check the pin out that the GigaKeys allow you to select and see if... - Page 12 Table 3 – Pin out GigaKey keys (*) These are just some of the devices that can be powered by 8INJ. The list is very long, if you want to know if your equipment can be connected to 8INJ, please do not hesitate to contact us.
-
