Summary of Contents for 9dot LiteSync
- Page 1 LITESYNC MANUAL VER. 2 REV. 0...
-
Page 2: Table Of Contents
Safety ......................................4 General warnings and precautions ............................4 Certifications and compliances ..............................4 Guarantee ....................................4 General description ..................................5 LiteSync features ..................................6 Simple installation .............................................. 6 Cambium Networks synchronization ......................................... 6 Manages any type of PoE ..........................................6 Certified partners ..............................................6 More power ................................................ 6 Short circuit and overvoltage protection ...................................... -
Page 3: Important Notes
9dot will not be liable for eventual damage or injury involving its hardware if it is used in any way inconsistent with its intended purpose, or if it is installed or used in an untested manner or is improperly maintained. -
Page 4: Safety
Review the drawings and illustrations in this manual before proceeding. If you have any questions regarding the safe installation or operation of this product, please contact 9dot or your nearest 9dot representative. Please keep it in a safe place for future reference. -

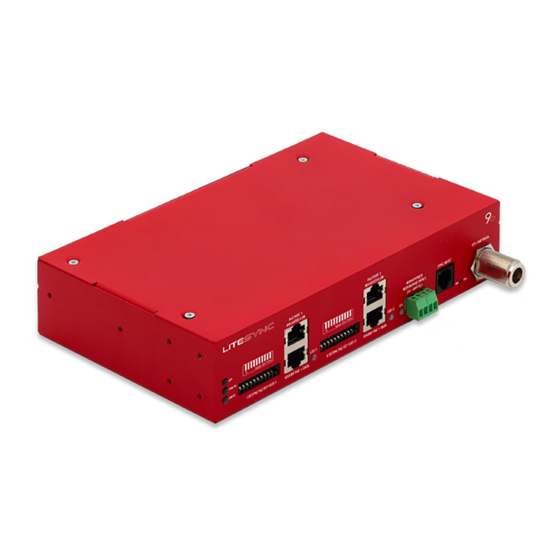

Page 5: General Description
PoE to a wide range of devices. POWER CONNECTOR LiteSync can be powered redundantly via two connectors. Each connector has its own power supply LED indicator. On the back is the grounding terminal. -
Page 6: Litesync Features
Multiple and redundant temporization source LiteSync has a built-in GPS receiver and can acts as master or slave with other units such us GigaSync or CMM5 (of Cambium Networks) through the Sync Input port. More power Up to 3A (145W@48V) per port. -
Page 7: Label
Label This device will have a label attached with relevant information us we describe below. Figure 2 - Example of LiteSync label As we can see, on the label it is indicated: The product code: GS-LT, with a brief description. -
Page 8: Technical Specifications
All lines (1-8) protected (L-L) and (L-G) SPD technology 2 phases: TVS, GDT Gigabit transformer SYNCHRONIZATION SPECIFICATIONS External GPS connector N-Type female Sync input compatibility GigaSync by 9dot; uGPS , cnPulse and CMM5 by Cambium Networks ® ® ® Sync connectors Sync input: RJ12... -
Page 9: Installation
Installation The LiteSync is designed for installation in a 19 "rack cabinet, however the fixing flaps can be rotated 90 ° for wall mounting. Included are mounting tabs, one short and one long to complete the half rack unit. IMPORTANT NOTE: Use only the fixing screws supplied with the device for fixing the fins; the use of different fixing screws can cause irreparable damage to the device. -
Page 10: Physical Interface
These cables are not supplied with LiteSync and must be purchased separately Physical interface LED coding General state of the unit To know the general status of LiteSync, consider the first 3 LEDs arranged vertically on the left of the front. Color Description green flashing 200ms... -
Page 11: Blocks Diagram
(•) a CPU guarantees the correct operation of all the basic electronics and performs the voltage and current measurement (•) the power components. The isolated converter is powered via one or both pairs of input terminals The following is a schematic detail of the LiteSync design structure. MAIN INPUT POWER REVERSE POLARITY... -
Page 12: Input Power
GigaKey, thus allowing it to power a wide range of devices on the market. To find out if your PoE device can be powered via LiteSync, just check the pin out that the GigaKey allows you to select and see if it matches the input pin out of your equipment. -
Page 13: Synchronization Pulse
Protection LiteSync detects the applied load value in real time. In the event of a sudden overload or short circuit, the protection intervenes and interrupts the supply of the output voltage for 10 seconds. At the end of the period of inactivity, the voltage is supplied again. -
Page 14: Synchronization
(*) These are just some of the devices that can work with LiteSync. The list is very long, if you want to know if your equipment can connect to LiteSync, do not hesitate to contact us. Pay attention to the direction of insertion of the GigaKeys in the slots: the correct position is with the screen printing facing upwards. - Page 15 CMM5 is a cluster management module manufactured by Cambium Networks that replicates the device's sync pulse through an output port. If you have a CMM5 in your configuration, you can get the sync pulse and connect it to the LiteSync sync input port.
-
Page 16: Official Distributors
08015 Barcelona, Spain Abbey, Headquarters Dublin 7, Ireland Avenida de la Industria, 32 28108 Madrid, +353 1 871-6316 Spain sales.emea@winncom.com Offices www.winncom.com (+34) 933 90 59 54 Headquarters (+34) 918 29 77 85 info@wifidom.com www.wifidom.com LITESYNC MANUAL VER. 2 REV. 0... - Page 17 Visit us on our website: www.9dot.it 9dot is a registered trademark of 9dot in the European Union. Copyright © 2020 9dot. Due to continuous product development, 9dot reserves the right to change specifications without prior notice. LITESYNC MANUAL...
