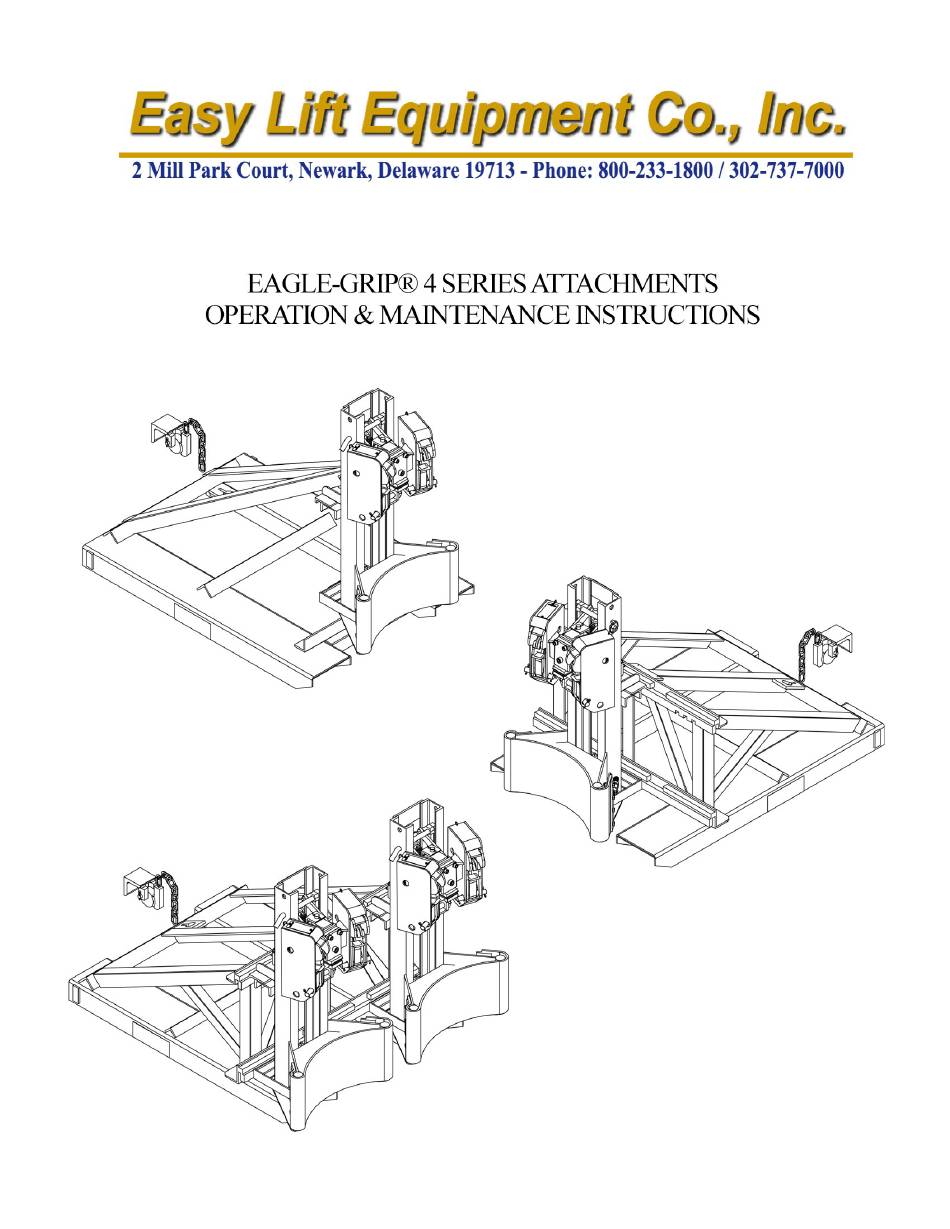

- Page 1 302-737-7000 Doc: C-EG4 sales@easylifteqpt.com Approver: Pat Dougherty www.easylifteqpt.com December 30, 2022...
- Page 2 EASY LIFT EQUIPMENT ® EAGLE-GRIP 4 SERIES ATTACHMENTS INTRODUCTION ® The Eagle-Grip 4 series of lift truck attachments utilize a heavy duty double automatic clamping mechanism for handling a wide range of steel, plastic, or fiber drums in high volume applications.
-
Page 3: Daily Safety Inspection
DAILY SAFETY INSPECTION ® Do not operate your Eagle-Grip 4 series attachment if you notice any unsafe condition(s) that may have been caused by an accident or malfunction. Immediately report this condition to your supervisor. 1. Perform a visual inspection, checking for loose or damaged springs and jaws. 2. - Page 4 WARNINGS WARNING: Do not lift or suspend loads over people. Stay clear of suspended loads. WARNING: Do not attempt to overload the attachment beyond its rated capacity, or raise the drum(s) beyond your lift truck’s maximum lifting height. WARNING: Never transport the attachment at its maximum lifting height. WARNING: Keep hands and feet away from the pinch points, mast channels, clamp components and springs.
- Page 5 ® EAGLE-GRIP 4 SERIES ATTACHMENTS OPERATING INSTRUCTIONS TO ENGAGE AND TRANSPORT DRUMS: 1. If handling Fiber drums, see the “Fiber Drum Clamping Procedures” included within this manual prior to proceeding. 2. Center the attachment clamping mechanism(s) with the horizontal center of drum(s) to be gripped and lifted.
- Page 6 The fork pockets on all Eagle-Grip 4 series attachments equipped with Quick-Claw cams are 43” in length. This 43” length is designed for use on lift trucks equipped with 42”...
- Page 7 Capacity Weight H x L x W Drums Model (lbs/kg) (lbs/Kg) (inches) (mm) Handled Description EG4DCM-CM 2000/907 110/50 33x15x18 838x381x457 Carriage Mount EG4DCMSRC-CM 2000/907 110/50 33x15x18 838x381x457 Carriage Mount EG4DCM-NF 2000/907 253/115 37x47x24 940x1194x610 Narrow Fork Mount EG4DCMSRC-NF 2000/907 253/115 37x47x24 940x1194x610 Narrow Fork Mount...
- Page 8 (w/43” Fork Pockets) EG4DCM2-F & EG4DCMSRC2-F 33” (w/43” Fork Pockets) EG4DCM2-FQC & EG4DCMSRC2-FQC 30” FOR PARTS, SERVICE OR TECHNICAL QUESTIONS CALL: Easy Lift Equipment 2 Mill Park Ct. Newark, DE. 19713 800-233-1800 ; 302-737-7000 FAX: 302-737-7333 www.easylifteqpt.com Email: sales@easylifteqpt.com 302-737-7000 Doc: OMI-EG4LCS sales@easylifteqpt.com...
-
Page 9: How It Works
The loaner clamping mechanism or attachment should be promptly returned to Easy Lift Equipment. If the equipment is not in transit within 5 days from receipt date of the refurbishment equipment, the loaner company authorizes Easy Lift Equipment Co., Inc. to process the transaction as a sale and bill applicable charges. -
Page 10: Visual Check
Carriage Mount(s) are free of damage and properly secured onto the Attachment Frame BELT(S) - Verify proper belt tension (contact Easy Lift Equipment for details) CLAMP DAMAGE - Look for bent, dented or broken clamp components. This includes the clamp outer and inner... -
Page 11: Operational Check
Page 2 of 2 Operator’s Daily Checklist (cont.) Eagle-Grip® Fork Attachment with Eagle-Grip® Clamping Head(s) DATE: Needs Needs Needs Needs Needs Needs Needs OPERATIONAL CHECK Repair Repair Repair Repair Repair Repair Repair FORK POCKETS - Verify that the forks of your lift truck fit accordingly into the fork pockets of your Eagle-Grip Attachment SAFETY CHAIN - Confirm that the Safety Chain is properly connected to the... -
Page 12: Every Three Years
Thoroughly check the safety chain, as well as the snap hook or cam lock systems for wear, damage and/or missing (Snap Hook or Cam Lock) components. Thoroughly check belts (if applicable) for wear or damage. Also ensure proper tension. (contact Easy Lift Equipment for Belts details) Eagle-Grip Thoroughly inspect the clamping head(s) for bent, dented or broken clamp components. - Page 13 SUBMITTING CLAIMS: To make a claim under this policy, please contact Easy Lift Equipment for assistance. We can be reached by calling 800-233-1800 ext. 4 for customer service or by writing to sales@easylifteqpt.com.
- Page 14 HEAVY DUTY SINGLE DRUM NARROW FRAME ASSEMBLY 302-737-7000 Doc: M-HDSDNF sales@easylifteqpt.com Approver: Pat Dougherty www.easylifteqpt.com September 8, 2021...
- Page 15 HEAVY DUTY SINGLE DRUM NARROW FRAME PARTS LIST ITEM PART NO. DESCRIPTION EGNF Narrow Fork Mount Frame for EG3 & EG4 EGNFQC Narrow Fork Mount Frame with Quick-Claw for EG3 & EG4 3516 Rubber Belt 3516SC Anti-Static Rubber Belt 2516 Composite Belt 12200-4 Belt Clamp (Yellow Powder Coating)
- Page 16 HEAVY DUTY SINGLE DRUM FRAME ASSEMBLY 302-737-7000 Doc: M-HDSDF sales@easylifteqpt.com Approver: Pat Dougherty www.easylifteqpt.com May 6, 2024...
- Page 17 HEAVY DUTY SINGLE DRUM FRAME PARTS LIST ITEM PART NO. DESCRIPTION 4902 Belt Cradle Frame - 5 hole (Belt Incl.) 4902-3 Belt Cradle Frame - 3 hole (Belt Incl.) 3516 Rubber Belt 2516 Composite Belt 12200-4 Belt Clamp (Yellow Powder Coating) 5/16-18 X 1 1/4 HHCS 5/16-18 x 1 1/4 Hex Head Cap Screw Grade 5 (zinc) 5/16-18 HN...
- Page 18 HEAVY DUTY DOUBLE DRUM FRAME ASSEMBLY 302-737-7000 Doc: M-HDDDF sales@easylifteqpt.com Approver: Pat Dougherty www.easylifteqpt.com May 6, 2024...
- Page 19 HEAVY DUTY DOUBLE DRUM FRAME PARTS LIST ITEM PART NO. DESCRIPTION 4902 Belt Cradle Frame - 5 hole (Belt Incl.) 4902-3 Belt Cradle Frame - 3 hole (Belt Incl.) 3516 Rubber Belt 2516 Composite Belt 12200-4 Belt Clamp (Yellow Powder Coating) 5/16-18 X 1 1/4 HHCS 5/16-18 x 1 1/4 Hex Head Cap Screw Grade 5 (zinc) 5/16-18 HN...
- Page 20 EG4 HEAVY DUTY DOUBLE CLAMPING MECHANISM ASSEMBLY 302-737-7000 Doc: M-EG4 sales@easylifteqpt.com Approver: Pat Dougherty www.easylifteqpt.com January 18, 2023...
- Page 21 EG4 HEAVY DUTY DOUBLE CLAMPING MECHANISM PARTS LIST ITEM PART NO. DESCRIPTION 6202 Outer Housing (Black Powder Coating) 6202SS Outer Housing (Stainless Steel - Non-Sparking) 7902 Inner Housing (Black Powder Coating) 7902SS Inner Housing (Stainless Steel - Non-Sparking) 7902M Mauser Inner Housing (Black Powder Coating) 1007SS Stainless Steel Upper Clamp Jaw (Non-Sparking) 1007M...
- Page 22 EG4 HEAVY DUTY PREVENTATIVE MAINTENANCE KIT PARTS LIST PART NO. DESCRIPTION 4306 Jaw Spring (zinc) 2206 Housing to Housing Spring (zinc) 6006-CP Cotter Pin, 5/32" x 1" (zinc) HANG-2 3/16 x 1-3/4 Circle Cotter "Hang 2" (7016) 4206 Spring, Clevis (zinc) 3516 Rubber Belt B-800...
- Page 23 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 24 QUICK-CLAW SAFETY RESTRAINT SYSTEM ASSEMBLY 302-737-7000 Doc: M-QCSRS sales@easylifteqpt.com Approver: Pat Dougherty www.easylifteqpt.com June 27, 2022...
- Page 25 QUICK-CLAW SAFETY RESTRAINT SYSTEM PARTS LIST ITEM PART NO. DESCRIPTION QCH2.5 Cam Housing QCC2.5 Single Cams 3/4 x 3 SSS 3/4 x 3 Socket Shoulder Screw 5/8-11 Thread (alloy) 3/4 FW SAE 3/4 Flat Washer SAE (zinc) 5/8 FW SAE 5/8 Flat Washer SAE (zinc) 5/8-11 SLN 5/8-11 Stover Lock Nut (zinc)
- Page 26 SCALE HARDWARE & WIRING FOR ERGO & EAGLE-GRIP STYLE MASTS ASSEMBLY TO SCALE INDICATOR DETAIL VIEW #2 DETAIL VIEW #1 INSIDE TERMINAL BOX FROM LOAD CELL FROM FROM BOTTOM SCALE LOAD CELL INDICATOR DETAIL VIEW #1 (MACHINE SIDE) PORT #1 - WHITE PORT #2 - RED PORT #4 - BLACK PORT #3 - GREEN...
- Page 27 SCALE HARDWARE & WIRING FOR ERGO AND EAGLE-GRIP MASTS PARTS LIST ITEM PART NO. DESCRIPTION HM1000 Load Cell with 4' cable CU-124 Terminal Box Enclosure 75315A34-4 Foam Tape, 2 sided adhesive, 3/4" X .125" x 4" length 7527K64 Terminal Block (Strip) 7/16", 4 circuits 75315A34-2 Foam Tape, 2 sided adhesive, 3/4"...
- Page 28 EAGLE-GRIP, EL & MFCR SCALE BRACKET ASSEMBLY EL & MFCR EL ELEVATED RISER SWIVEL BRACKET EAGLE-GRIP SWIVEL BRACKET 302-737-7000 Doc: M-SSBE sales@easylifteqpt.com Approver: Pat Dougherty www.easylifteqpt.com May 7, 2024...
-
Page 29: Full Assembly
EAGLE-GRIP, EL & MFCR SCALE BRACKET PARTS LIST ITEM PART NO. DESCRIPTION 3530348 Indicator Mount Bracket With Tube 98335A094 Zinc-plated steel cotter pin, 7/8"-1 D, 3-3/4 L 1/2-13 x 2 1/2 HHCS 1/2-13 x 2 1/2 Hex Head Cap Screw Grade 5 (zinc) 1/2-13 x 3 HHCS 1/2-13 x 3 Hex Head Cap Screw Grade 5 (zinc) 2580309...
