Summary of Contents for Easy Lift Equipment EAGLE-GRIP EL4 Series

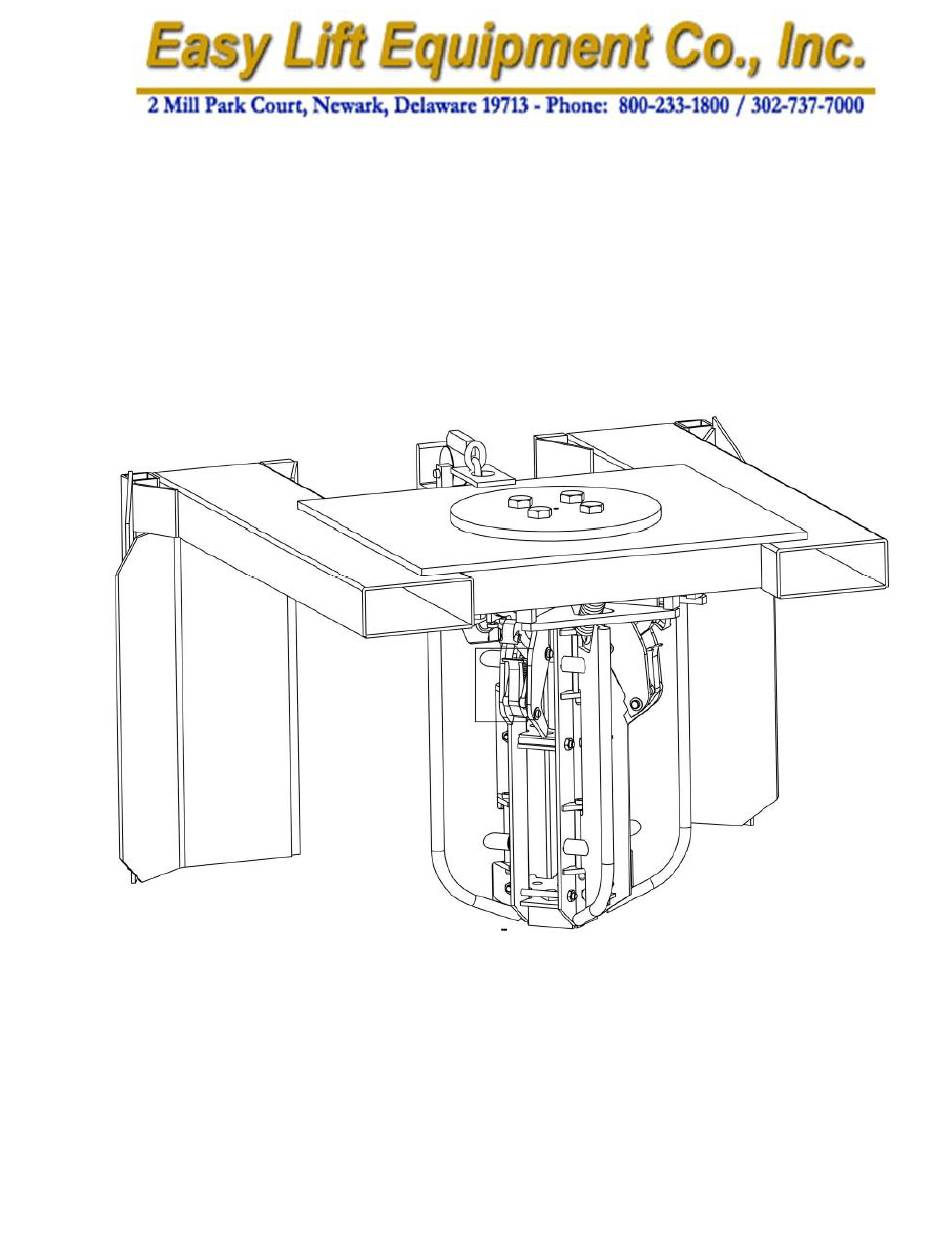

- Page 1 EL4 SERIES ATTACHMENTS OPERATING INSTRUCTIONS...
- Page 2 OPERATION INSTRUCTIONS EAGLE-GRIP™ MODELS EL4F /EL4F-SRC/ EL4FQC / EL4FQC-SRC EL4CM/EL4CM-SRC Upon receipt of this of attachment, cut the metal bands and stretch wrapping materials securing the attachment to the pallet. Using a lift truck insert the forks into the fork pockets of the attachment and remove the attachment from the pallet.
- Page 3 INSPECTION AND TROUBLESHOOTING GUIDE Prior to using the Eagle-Grip model EL4F / EL4FQC or EL4CM, each operator should perform a brief, routine spot-check of the equipment. This inspection should include the following checks: 1.) Ensure that the attachment is secured to the lift truck forks with the safety chain and cam lock clamp engaged to the lift truck carriage.
- Page 4 If jaws are broken or cracked, do not use the attachment. Have the attachment serviced by a qualified maintenance technician immediately. EASY LIFT EQUIPMENT 2 MILL PARK CT NEWARK, DE. 19713 Phone: 302-737-7000: 800-233-1800 FAX: 302-737-7333 WEBSITE: www.easylifteqpt.com...
-
Page 5: Daily Safety Inspection
DAILY SAFETY INSPECTION Do not operate your EL4 series attachment if you notice any unsafe condition(s) that may have been caused by an accident or malfunction. Immediately report this condition to your supervisor. 1. Perform a visual inspection, checking for loose or damaged springs and jaws. 2. -
Page 6: Specifications
SPECIFICATIONS MODEL CAPACITY WEIGHT H x L x W DRUMS MOUNTING (lb/kg) (lb/Kg) (inches) (mm) HANDLED EL4F 8000/3630 555/252 26x38x43.5 660x965x1105 1 to 4 Fork EL4F-SRC 8000/3630 575/261 26x38x43.5 660x965x1105 1 to 4 Mount EL4FQC 8000/3630 645/293 27x50.5x45 685x1283x1143 1 to 4 EL4FQC-SRC 8000/3630 665/302... - Page 7 Please verify with your local forklift dealer that your lift truck is certified and tagged properly for this attachment. FOR PARTS, SERVICE OR TECHNICAL QUESTIONS CALL: EASY LIFT EQUIPMENT 2 MILL PARK CT NEWARK, DE. 19713 PHONE: 800-233-1800 ; 302-737-7000...
- Page 8 FOR MODELS WITH PREFIXES: ED/EL/ELDR/EG & RCR Easy Lift Equipment (“ELE”) warrants each new Drum Hauler™ & Roll Hauler product to be free from factory material and workmanship defects, under normal use with proper maintenance, for a period of 12 months.
- Page 9 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 10 302-737-7000 Doc: M-EL4F sales@easylifteqpt.com Approver: Pat Dougherty www.easylifteqpt.com May 17, 2022...
- Page 11 EL4F FRAME AND CLAMP PARTS LIST ITEM PART NO. DESCRIPTION 2410 Long Frame Carrier M20-2 1/2 x 40 MM M20-2 1/2 x 40 mm Hex Head Cap Screw Plated 8.8 M20 LW Lock Washer Plated 600181-5405 Plate-Carrier Mounting Safety Chain & Cam Lock Assembly 0504D Cam, Cam Lock 4006-1...
- Page 12 302-737-7000 Doc: M-EL4FC sales@easylifteqpt.com Approver: Pat Dougherty www.easylifteqpt.com April 19, 2022...
- Page 13 EL4F CLAMPING ASSEMBLY PARTS LIST ITEM PART NO. DESCRIPTION 2116-2402 Cantilever - Housing to Frame 2121-2404 Cantilever - Indexing 72041 3/8" x 1-1/2" Pin, Link to Upper Jaw (zinc) 16033-1 1/2" x 2.625" Pin, Clevis (zinc) 4306 Jaw Spring (zinc) 2122-2403 Housing - Clamp 2122-2403SS...
- Page 14 302-737-7000 Doc: M-EL4FS sales@easylifteqpt.com Approver: Pat Dougherty www.easylifteqpt.com March 4, 2022...
- Page 15 EL4F SPIDER ASSEMBLY PARTS LIST ITEM PART NO. DESCRIPTION 6038-6406 Spring 7011-7405 Ratchet Cam Stop Pawl 14041-1410 14035-1409 7010-7404 Ratchet Cam with Bushings 140341-1408 Pin with Cotter Pins 2120-2407 Spider with Bushings 2120-2407SS Stainless Steel Spider with Bushings 10038-5404 Spacer Tubing/Sleeve 2120-8402 Complete Spider Assembly 2120-8402SS...
- Page 16 302-737-7000 Doc: M-EL4FH sales@easylifteqpt.com Approver: Pat Dougherty www.easylifteqpt.com March 4, 2022...
- Page 17 EL4F HOLDING BLOCK PARTS LIST ITEM PART NO. DESCRIPTION 6105-4403 Cap Screw 490321-5403 Holding Block 140341-1408 Pin with Cotter Pins 6036-6405 Spring - Holding/Ratchet Pawl 7014-7406 Ratchet Pawl with Bushing 160301-5402 Guide Shaft 7013-7407 Holding Pawl 490321-8401 Holding Block Assembly 302-737-7000 Doc: M-EL4FH sales@easylifteqpt.com...
- Page 18 EL4F QUICK-CLAW ASSEMBLY 302-737-7000 Doc: M-EL4FQC sales@easylifteqpt.com Approver: Pat Dougherty www.easylifteqpt.com May 23, 2022...
- Page 19 EL4F QUICK CLAW PARTS LIST ITEM PART NO. DESCRIPTION 2410-QC EL4-FQC Long Frame Carrier Only 3530378 EL4 QC Legs 3530376 EL4 QC Under Cam Channel (each) 3530377 EL4 QC Linkage Arm (each) 1/2-13 x 3 3/4 HHCS 1/2-13 x 3 3/4 Hex Head Cap Screw Grade 5 (zinc) 1/2-13 NLN 1/2-13 Nylon Locking Nut (zinc) 1/2-13 x 3 HHCS...
- Page 20 EL4F SPARE PARTS LIST PART NO. DESCRIPTION 4206 Spring, Clevis (zinc) 16035-1 1/2" x 4-3/4" Case Hardened Pin (zinc) 6040-6401 Spring - Cantilever to Frame 6039-6407 Spring Entering Guide Plate 2121-2404 Cantilever - Indexing 16033-1 1/2" x 2.625" Pin, Clevis (zinc) 4306 Jaw Spring (zinc) 6042-6402...
