Summary of Contents for Easy Lift Equipment EAGLE-GRIP 2 Series

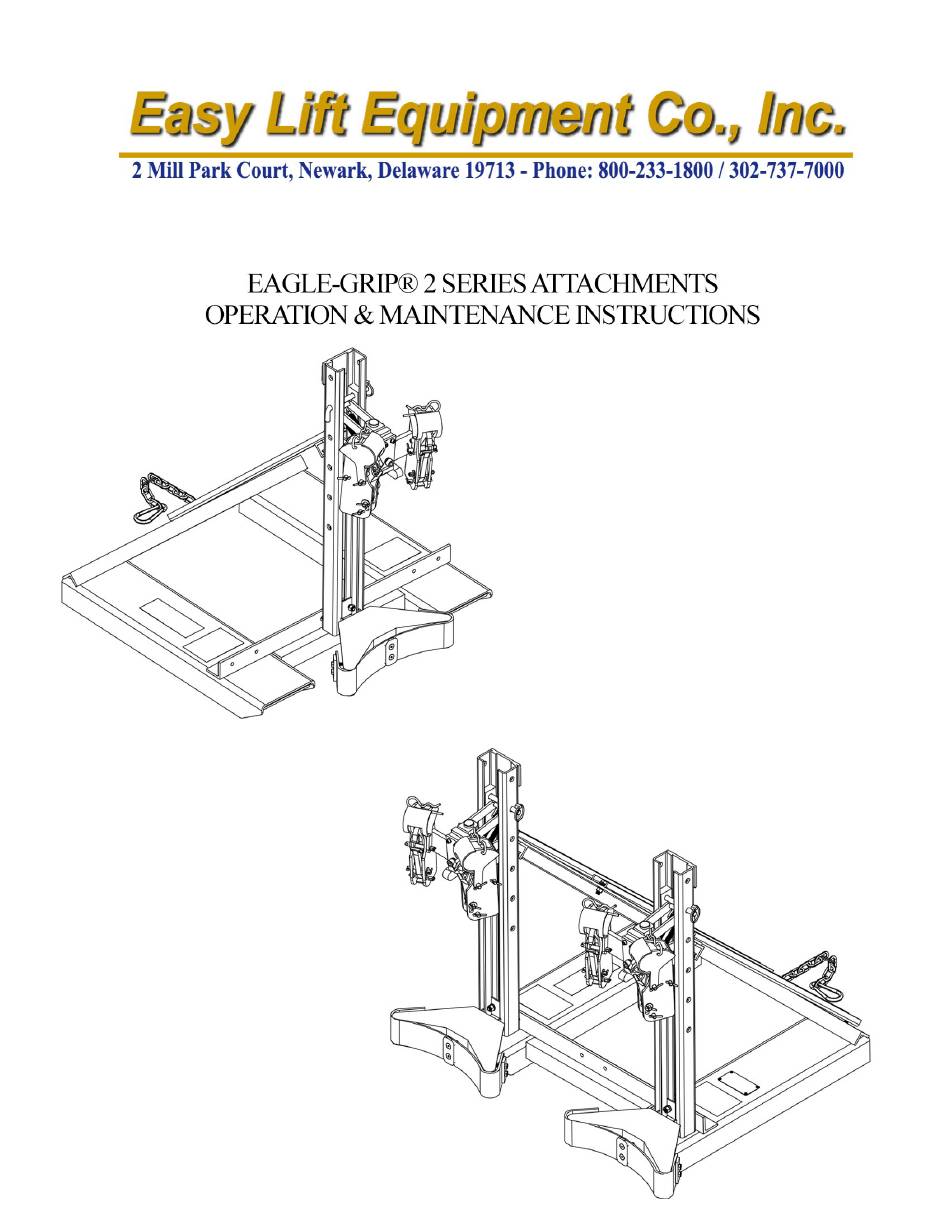

- Page 1 302-737-7000 Doc: C-EG2L sales@easylifteqpt.com Approver: Pat Dougherty www.easylifteqpt.com December 30, 2022...
- Page 2 EASY LIFT EQUIPMENT ® EAGLE-GRIP 2L SERIES ATTACHMENTS INTRODUCTION ® The Eagle-Grip 2L series of lift truck attachments utilize a double automatic clamping mechanism designed for handling one or two steel, plastic, or fiber chimed drums at a time with a lift truck. All models are knockdown units which bolt together. The fork pockets and ®...
-
Page 3: Daily Safety Inspection
DAILY SAFETY INSPECTION ® Do not operate your Eagle-Grip 2L series attachment if you notice any unsafe condition(s) that may have been caused by an accident or malfunction. Immediately report this condition to your supervisor. 1. Perform a visual inspection, checking for loose or damaged springs and jaws. 2. - Page 4 WARNINGS WARNING: Do not lift or suspend loads over people. Stay clear of suspended loads. WARNING: Do not attempt to overload the attachment beyond its rated capacity, or raise the drum(s) beyond your lift truck’s maximum lifting height. WARNING: Never transport the attachment at its maximum lifting height. WARNING: Keep hands and feet away from the pinch points, mast channels, clamp components and springs.
- Page 5 ® EAGLE GRIP 2L SERIES ATTACHMENTS OPERATING INSTRUCTIONS TO ENGAGE AND TRANSPORT DRUMS: 1. If handling Fiber drums, see the “Fiber Drum Clamping Procedures” included within this manual prior to proceeding. 2. Center the attachment clamping mechanism(s) with the horizontal center of drum(s) to be gripped and lifted.
- Page 6 ™ ATTACHMENTS WITH QUICK-CLAW SAFETY RESTRAINT SYSTEM (IN LIEU OF A SAFETY CHAIN) ™ The patented Quick-Claw cam locks secure the attachment firmly to the forks of the lift truck. This option prevents the attachment from sliding off the forks during sudden stops, even when transporting a full load.
- Page 7 Capacity Weight H x L x W Drums Model (lbs/kg) (lbs/Kg) (inches) (mm) Handled Description EG1SCM-CM 750/340 49/23 32x14x14 813x356x356 Carriage Mount EG1SCMSRC-CM 750/340 49/23 32x14x14 813x356x356 Carriage Mount EG1SCM-F 750/340 120/55 36x34x31 889x864x787 Fork Mount EG1SCMSRC-F 750/340 123/56 36x34x31 889x864x787 Fork Mount EG1SCM-FQC...
- Page 8 ALL EG1 & EG2L WITH ™ ™ QUICK-CLAW CAM LOCK SYSTEM QUICK-CLAW CAM LOCK SYSTEM FOR PARTS & SERVICE CALL: Easy Lift Equipment Co., Inc. Phone: 800-233-1800: 302-737-7000 2 Mill Park Ct. Website: www.easylifteqpt.com Newark, DE 19713 Email: sales@easylifteqpt.com 302-737-7000 Doc: OMI-EG2LLCS sales@easylifteqpt.com...
-
Page 9: How It Works
The loaner clamping mechanism or attachment should be promptly returned to Easy Lift Equipment. If the equipment is not in transit within 5 days from receipt date of the refurbishment equipment, the loaner company authorizes Easy Lift Equipment Co., Inc. to process the transaction as a sale and bill applicable charges. -
Page 10: Visual Check
Carriage Mount(s) are free of damage and properly secured onto the Attachment Frame BELT(S) - Verify proper belt tension (contact Easy Lift Equipment for details) CLAMP DAMAGE - Look for bent, dented or broken clamp components. This includes the clamp outer and inner... -
Page 11: Operational Check
Page 2 of 2 Operator’s Daily Checklist (cont.) Eagle-Grip® Fork Attachment with Eagle-Grip® Clamping Head(s) DATE: Needs Needs Needs Needs Needs Needs Needs OPERATIONAL CHECK Repair Repair Repair Repair Repair Repair Repair FORK POCKETS - Verify that the forks of your lift truck fit accordingly into the fork pockets of your Eagle-Grip Attachment SAFETY CHAIN - Confirm that the Safety Chain is properly connected to the... -
Page 12: Every Three Years
Thoroughly check the safety chain, as well as the snap hook or cam lock systems for wear, damage and/or missing (Snap Hook or Cam Lock) components. Thoroughly check belts (if applicable) for wear or damage. Also ensure proper tension. (contact Easy Lift Equipment for Belts details) Eagle-Grip Thoroughly inspect the clamping head(s) for bent, dented or broken clamp components. - Page 13 SUBMITTING CLAIMS: To make a claim under this policy, please contact Easy Lift Equipment for assistance. We can be reached by calling 800-233-1800 ext. 4 for customer service or by writing to sales@easylifteqpt.com.
- Page 14 EASY LIFT EQUIPMENT FIBER DRUM EG1 CLAMPING PROCEDURE 2. Then move the clamping mechanism 1. Raise the clamping mechanism forward so the lower jaw contacts the until the lower jaw is just high metal skirt under the drum’s locking enough to contact the metal skirt band and proceed to elevate the drum just below the locking band.
- Page 15 EASY LIFT EQUIPMENT FIBER DRUM EG2L CLAMPING PROCEDURE 1. Ensure the fiber drum guards are in the forward position (closer to the 2. Push the unit forward so the clamp) and the cotter pins are locking fiber drum guards are contacting the guards in place.
- Page 16 LIGHT DUTY SINGLE DRUM FRAME ASSEMBLY 302-737-7000 Doc: M-EG1SCM-F sales@easylifteqpt.com Approver: Pat Dougherty www.easylifteqpt.com March 5, 2024...
- Page 17 LIGHT DUTY SINGLE DRUM FRAME PARTS LIST ITEM PART NO. DESCRIPTION 96026 Fork Pockets for Slide on Mounting 60021 Vertical Brace, Frame to Slide-on Mounting 7002 Mast MCL007031 Specification Plate 6 x 1/4 RUDS-SS 6 x 1/4 Round Head U Drive Screw (stainless steel) 3/8 FW SAE 3/8 Flat Washer SAE (zinc) 3/8 LW...
- Page 18 LIGHT DUTY DOUBLE DRUM FRAME ASSEMBLY 302-737-7000 Doc: M-EG1SCM2-F sales@easylifteqpt.com Approver: Pat Dougherty www.easylifteqpt.com March 5, 2024...
- Page 19 LIGHT DUTY DOUBLE DRUM FRAME PARTS LIST ITEM PART NO. DESCRIPTION 96026 Fork Pockets for Slide on Mounting 60021 Vertical Brace, Frame to Slide-on Mounting 7002-1 Horizontal Brace Mount 7002 Mast 3/8 FW SAE 3/8 Flat Washer SAE (zinc) 3/8 LW 3/8 Lock Washer (zinc) 3/8-16 x 1 1/4 HHCS-8 3/8-16 x 1 1/4 Hex Head Cap Screw Grade 8 (yellow zinc)
- Page 20 EG2 LIGHT DUTY DOUBLE CLAMPING MECHANISM ASSEMBLY SEEN ON LEFT: ERGO UNITS WITH A 5" BELT CRADLE WILL PRIMARILY USE A 6" UPPER CLEVIS (#27) AND A 5-1/2" LOWER CLEVIS (#28). ALONG WITH A LOWER PIVOT BLOCK WITH OVAL STOP BARS (#23) AND AN UPPER PIVOT BLOCK WITH A 2-1/4"...
- Page 21 EG2 LIGHT DUTY DOUBLE CLAMPING MECHANISM PARTS LIST ITEM PART NO. DESCRIPTION 7302R Housing, Double Clamping Mechanism (Black Powder Coating) 7302RSS Housing, Double Clamping Mechanism (Stainless Steel) 10001 Bushing, Housing Yolk Trunion (zinc) 9107SS Stainless Steel Upper Jaw (Spark Resistant) 7107SS Stainless Steel Lower Jaw (Spark Resistant) 41041SS...
- Page 22 EG2 LIGHT DUTY DOUBLE CLAMPING MECHANISM PREVENTIVE MAINTENANCE KIT PARTS LIST PART NO. DESCRIPTION 1206 Spring, Jaw to Housing (stainless steel) HANG-1 3/16 x 1-1/4 Shank Lynch Pin "Hang 1" (9016) 7019 3-7/8" Hair Pin Clip (zinc) 3006-CP Cotter Pin, 1/8" x 3/4" (zinc) 8206 Clevis Spring (zinc) 5516E...
- Page 23 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 24 QUICK-CLAW SAFETY RESTRAINT SYSTEM ASSEMBLY 302-737-7000 Doc: M-QCSRS sales@easylifteqpt.com Approver: Pat Dougherty www.easylifteqpt.com June 27, 2022...
- Page 25 QUICK-CLAW SAFETY RESTRAINT SYSTEM PARTS LIST ITEM PART NO. DESCRIPTION QCH2.5 Cam Housing QCC2.5 Single Cams 3/4 x 3 SSS 3/4 x 3 Socket Shoulder Screw 5/8-11 Thread (alloy) 3/4 FW SAE 3/4 Flat Washer SAE (zinc) 5/8 FW SAE 5/8 Flat Washer SAE (zinc) 5/8-11 SLN 5/8-11 Stover Lock Nut (zinc)
- Page 26 SCALE HARDWARE & WIRING FOR ERGO & EAGLE-GRIP STYLE MASTS ASSEMBLY TO SCALE INDICATOR DETAIL VIEW #2 DETAIL VIEW #1 INSIDE TERMINAL BOX FROM LOAD CELL FROM FROM BOTTOM SCALE LOAD CELL INDICATOR DETAIL VIEW #1 (MACHINE SIDE) PORT #1 - WHITE PORT #2 - RED PORT #4 - BLACK PORT #3 - GREEN...
- Page 27 SCALE HARDWARE & WIRING FOR ERGO AND EAGLE-GRIP MASTS PARTS LIST ITEM PART NO. DESCRIPTION HM1000 Load Cell with 4' cable CU-124 Terminal Box Enclosure 75315A34-4 Foam Tape, 2 sided adhesive, 3/4" X .125" x 4" length 7527K64 Terminal Block (Strip) 7/16", 4 circuits 75315A34-2 Foam Tape, 2 sided adhesive, 3/4"...
- Page 28 EAGLE-GRIP, EL & MFCR SCALE BRACKET ASSEMBLY EL & MFCR EL ELEVATED RISER SWIVEL BRACKET EAGLE-GRIP SWIVEL BRACKET 302-737-7000 Doc: M-SSBE sales@easylifteqpt.com Approver: Pat Dougherty www.easylifteqpt.com May 7, 2024...
-
Page 29: Full Assembly
EAGLE-GRIP, EL & MFCR SCALE BRACKET PARTS LIST ITEM PART NO. DESCRIPTION 3530348 Indicator Mount Bracket With Tube 98335A094 Zinc-plated steel cotter pin, 7/8"-1 D, 3-3/4 L 1/2-13 x 2 1/2 HHCS 1/2-13 x 2 1/2 Hex Head Cap Screw Grade 5 (zinc) 1/2-13 x 3 HHCS 1/2-13 x 3 Hex Head Cap Screw Grade 5 (zinc) 2580309...
