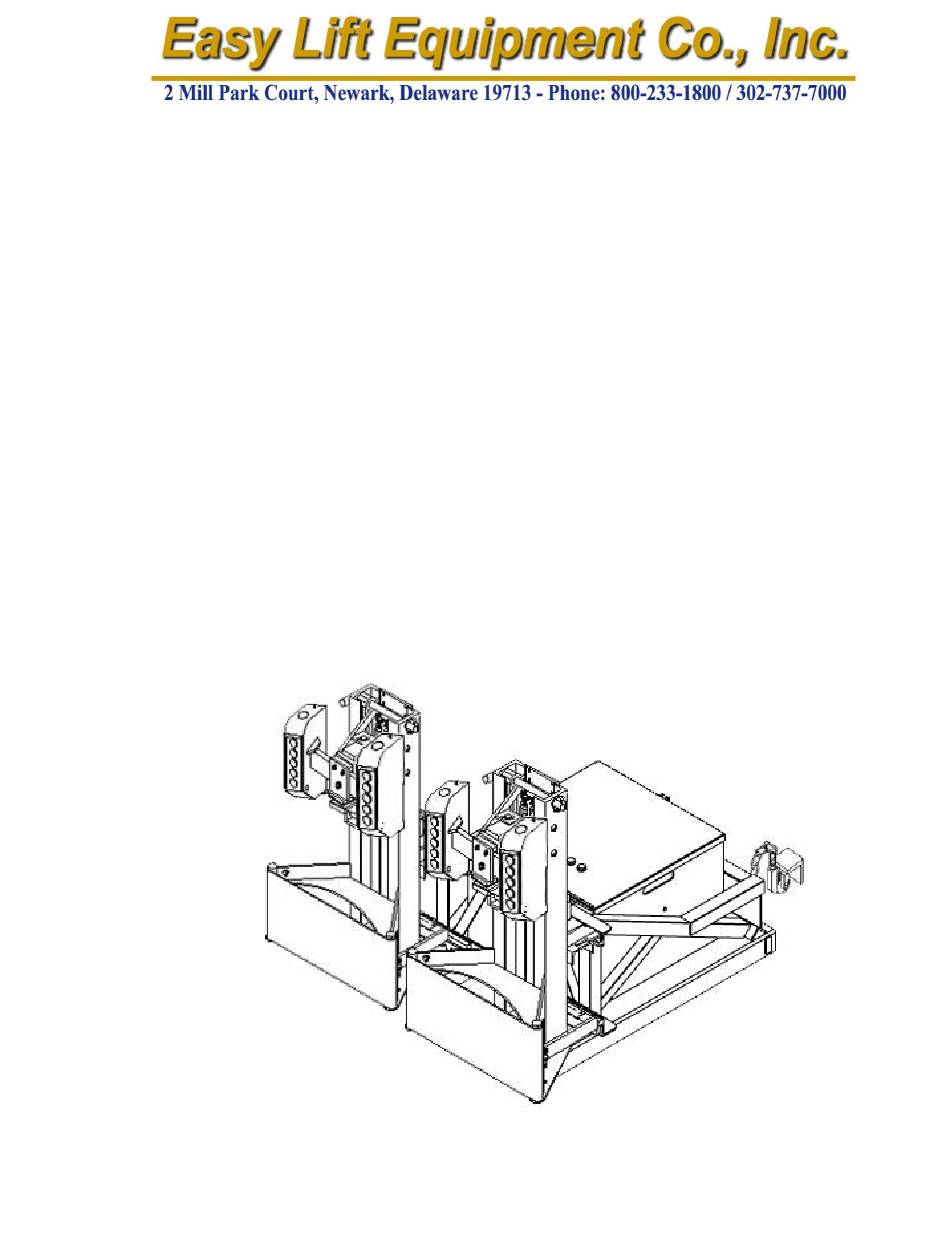

OPERATING/MAINTENANCE
MANUAL
FOR
MODEL EG4MDC2-F
EMPTY DRUM HANDLING
ATTACHMENT
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the EAGLE GRIP EG4MDC2-F and is the answer not in the manual?

Questions and answers

Related Manuals for Easy Lift Equipment EAGLE GRIP EG4MDC2-F

Summary of Contents for Easy Lift Equipment EAGLE GRIP EG4MDC2-F

  • Page 1 OPERATING/MAINTENANCE MANUAL MODEL EG4MDC2-F EMPTY DRUM HANDLING ATTACHMENT...
  • Page 2 Follow the maintenance procedures carefully to ensure a safe and reliable service life. Do not operate your equipment until you have read and understood these instructions. COMISSIONING YOUR EAGLE GRIP EG4MDC2-F ATTACHMENT 1. Remove all packing materials, protective strapping, and wood shipping blocks, then remove the machine from the shipping pallet or crate.

  • Page 3: Daily Safety Inspection

    8. Press the key fob top button “ON” once to energize the magnets. All four green lights on the cabinet lid should illuminate. There are also four green lights on the bottom of the attachment which will also illuminate. Should they all not illuminate, press the same key fob button “ON”...
  • Page 4 WARNINGS WARNING: Do not lift the attachment or suspend loads over people. Stay clear of suspended loads. WARNING: Do not attempt to handle drum that have any contents in them. WARNING: Never transport the attachment with drums being elevated more than a few inches above floor level.
  • Page 5 EAGLE GRIP® 4 EMPTY DRUM HANDLING ATTACHEMENT OPERATING INSTRUCTIONS NOTE: The holding strength of the magnetics is dependent upon many factors. The heavier the gauge of the drum sidewall, the better magnetic attraction to the metal. Operator care in eliminating shock from traveling over dock plates and sharp turns should be exercised.

  • Page 6: Charging The Batteries

    Do not back away until all four lights are no longer illuminated. Once released, the operator can back away from the released drums, then press the key fob button “ON” again to energized the magnets before entering the trailer to grip additional empty drums. TO ENGAGE AND TRANSPORT OPEN HEAD EMPTY STEEL DRUMS Open head steel drums with removable lids are wider than closed head drums.
  • Page 7 REMOTE KEY FOB REPROGRAMMING INSTRUCTIONS ALL EG4MDC2-F ATTACHMENTS ARE PROVIDED WITH FOUR KEY FOBS To Begin: With the attachment attached to the lift truck, elevate the attachment so the bottom of the magnets are at eye level. This makes the programming process more ergonomic for the operator rather than attempting to access the bottom of the magnets from floor level.
  • Page 8 HORIZONTAL CENTER OF GRAVITY: The distance or point that is measured between the beginning of the fork pockets to the end of the attachment which the attachment balances. 25.25” FOR PARTS, SERVICE OR TECHNICAL QUESTIONS CALL: Easy Lift Equipment 2 Mill Park Ct. Newark, DE. 19713 800-233-1800 ; 302-737-7000 FAX: 302-737-7333 www.easylifteqpt.com...
  • Page 9 MAINTAINENCE CHECKLIST FOR MODEL EG4MDC2-F EMPTY DRUM HANDLING ATTACHMENT: Maintenance Intervals Yrs. 1.1 Elevate the attachment to inspect for cracked welds 1.2 Check the safety chain for wear and missing parts Structural Check to verify that specification data plates are affixed to the attachment Steel: 1.4 Check the gas struts on the battery compartment lid...
  • Page 10 SUBMITTING CLAIMS: To make a claim under this policy, please contact Easy Lift Equipment for assistance. We can be reached by calling 800-233-1800 ext. 4 for customer service or by writing to sales@easylifteqpt.com.
  • Page 11 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 12 302-737-7000 Doc: M-EG4MAGC sales@easylifteqpt.com Approver: Pat Dougherty www.easylifteqpt.com June 10, 2021...
  • Page 13 EAGLE-GRIP® EMPTY DRUM HANDLING CLAMPING MECHANISM PARTS LIST ITEM PART NO. DESCRIPTION 3536202 Outer Housing (Stainless Steel - EG4 Magnet) 81401335 ELAY30x5 Magnet 3/8-16 x 1 1/2 SHCS 3/8-16 x 1 1/2 Socket Head Cap Screw Alloy Plated 3/8 LW 3/8 Lock Washer (zinc) 10203-4 Spacer, Universal Body (Black Powder Coating)
  • Page 14 DETAIL A Doc: M-EG4MAGD 302-737-7000 Approver: Pat Dougherty sales@easylifteqpt.com March 24, 2021 www.easylifteqpt.com...
  • Page 15 EAGLE-GRIP® EMPTY DRUM HANDLING ATTACHMENT DC BOX PARTS LIST ITEM PART NO. DESCRIPTION 3530510 DC Cabinet & Lid for Magnetic Drum Handling Attachment CS24010628H Cabinet Hinge WJ202 Hood Latch (730-1750) PA16529 Master Disconnect Switch DC210-12 12 volt, 210 AH AGM Battery 3530509 Battery Bracket for Magnetic Drum Handling Attachment 1/4-20 x 1 HHCS...
  • Page 16 302-737-7000 Doc: M-EG4MAGW sales@easylifteqpt.com Approver: Pat Dougherty www.easylifteqpt.com March 24, 2021...
  • Page 17 EAGLE-GRIP® EMPTY DRUM HANDLING ATTACHMENT WIRING PARTS LIST ITEM PART NO. DESCRIPTION PA16529 Master Disconnect Switch DC210-12 12 volt, 210 AH AGM Battery 7527K64 Terminal Block (Strip) 7/16", 4 circuits RSD-200B-24 DC /DC Converter 1 Output 24V 8.4 A T101772 24 Volt Battery Discharge Indicator (906T24JWDGN) 113765-67-67-4 BLACK Battery Cable 4"...
