SLCL ClearClick Digital Converter User Guide

1. Plug the VCR into power.

2. Plug the ClearClick into power.

3. Plug the Red/Yellow/White cables into the ClearClick and the VCR.

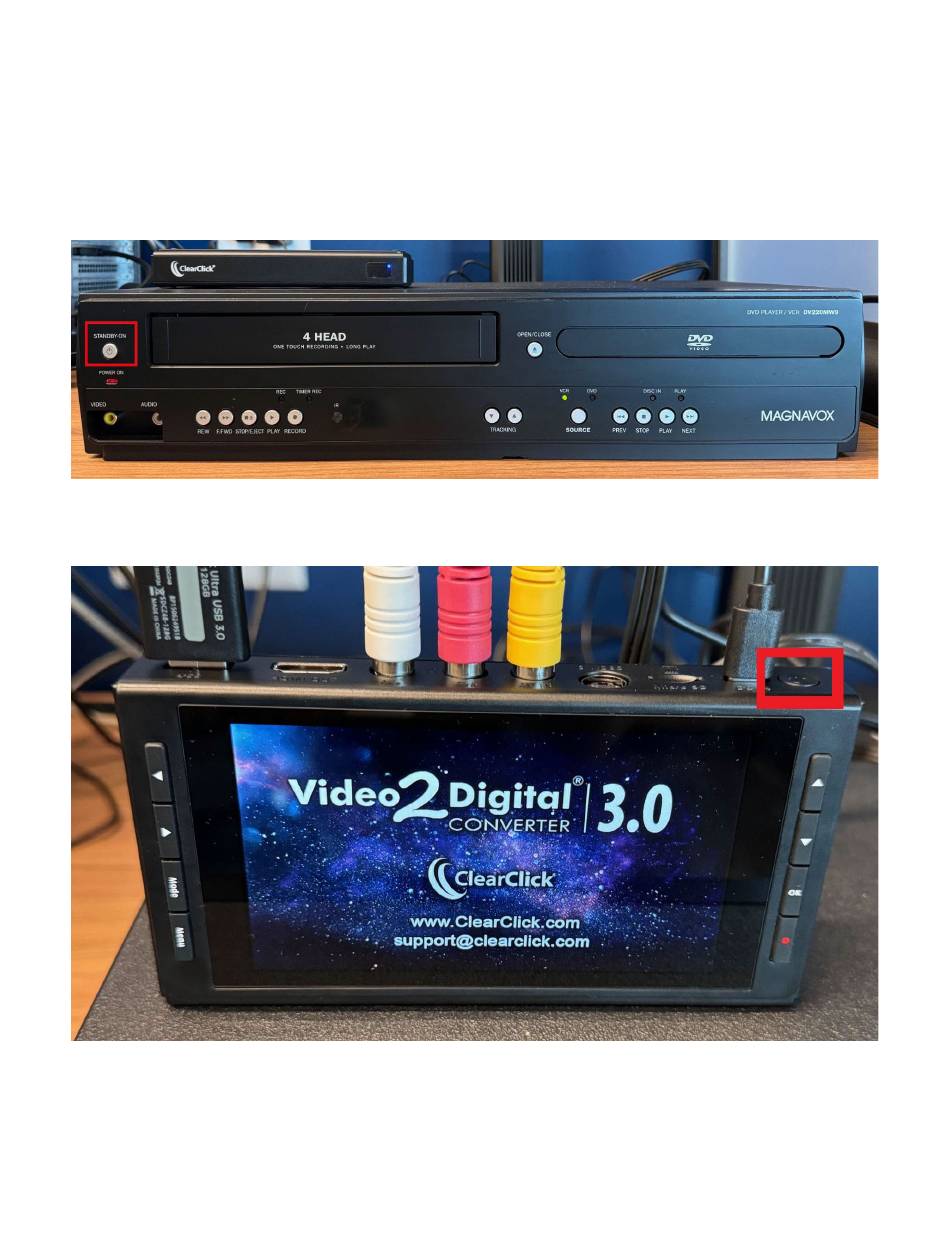

4. Press the Power button on the VCR.

5. Press the Power button on the ClearClick device. If the battery symbol appears on the

screen, press the Power button again until you see the on screen (pictured below).

Need help?

Do you have a question about the Video 2 Digital CONVERTER 3.0 and is the answer not in the manual?

Page 1 3. Plug the Red/Yellow/White cables into the ClearClick and the VCR. 4. Press the Power button on the VCR. 5. Press the Power button on the ClearClick device. If the battery symbol appears on the screen, press the Power button again until you see the on screen (pictured below).
Page 2 SLCL ClearClick Digital Converter User Guide 6. Insert your flash drive into the ClearClick’s USB port. 7. Insert your VHS tape into the VCR.
Page 3 SLCL ClearClick Digital Converter User Guide 8. The video on the tape will start playing, and will appear on the ClearClick’s screen. Rewind the film if needed. Use the buttons beneath the VHS port to control the tape. 9. When you are ready to start recording your tape, press the Red Dot button on the ClearClick.
Page 4 SLCL ClearClick Digital Converter User Guide When you are ready to stop your recording, press the Red Dot button again. You must do this before you remove the flash drive or the file will be corrupted, and you will have to record the entire video again.
