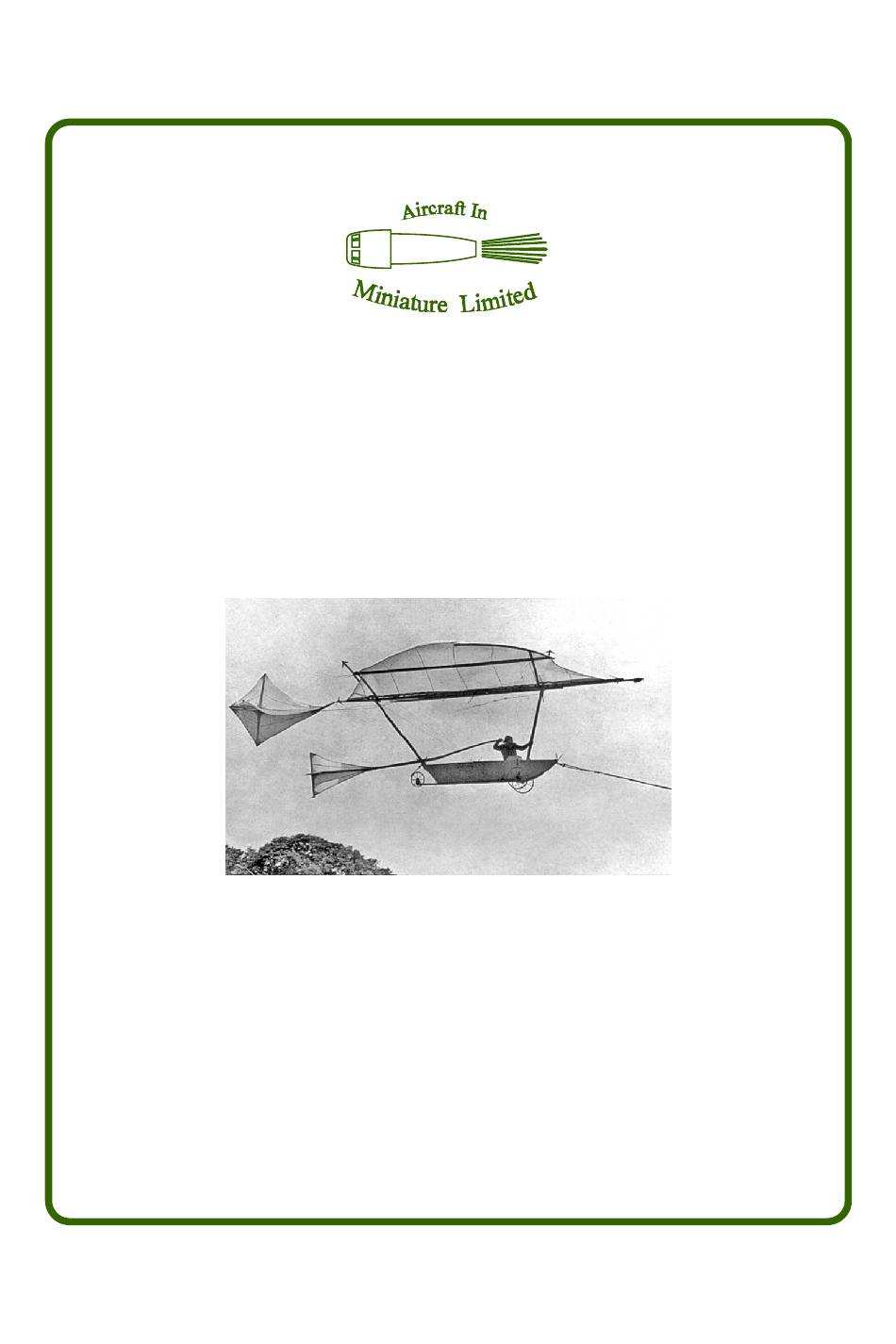

- Page 1 Historic Wings 1:72 Metal Kit of the 1853 Caley Glider History, Notes and Assembly Instructions...
- Page 2 2003 have been used. Aircraft In Miniature Limited wish to acknowledge the invaluable help of Ian Wormald in producing this kit. Some of the terminology used is shown in the drawing below.
- Page 3 Parts List Cast Metal Etched metal Main wheel rim ..... . 2 off Fret 1 - brass ......1 off Tail wheel rim .
- Page 4 ASSEMBLE THE SPOKED WHEELS Remove two large and one small spoke discs from the fret and remove any burrs from the attachment tabs (a spare set of discs are included on the fret in case of accidents). Attach a spoke disc to the rim of each wheel with CA adhesive . Align the pip on the end of the hub with the hole in the spoke disc, and attach the hub to each wheel with CA or epoxy adhesive.
- Page 5 ASSEMBLE THE SAIL, TAIL UNIT AND INFLUENCER Remove these parts from the fret and remove any burrs from the attachment tabs: The sail, and the front and rear spars. The vertical tail unit and mounting, and the two horizontal tail unit halves. The influencer tiller and the two horizontal influencer halves .
- Page 6 INITIAL PAINTING AND DECALS Paint the car gloss white, to give a good surface for the woodgrain decals supplied, together with a white background for the decals. Carefully trim the carrier film from the decals and apply them to all external surfaces of the car.
- Page 8 The manufacturers reserve the right to alter parts; add to, or delete parts without prior notification in the interests of quality control, production, or product improvement. This kit is manufactured in the United Kingdom by Aircraft In Miniature Limited 19, Watling Street, Nuneaton, Warwickshire, CV11 6JJ, England Email: info@aim72.co.uk - Web site: www.aim72.co.uk...
