Aircraft in Miniature Limited USAF B-5 MAINTENANCE STAND Assembly Instructions

1

General

A Remove each etched part from the fret as required and
remove any burrs with a needle file.
Removes all flash, mould lines or burrs from the castings.
B Use solder or your preferred adhesive (super glue or
epoxy cement) to assemble the model. Use adhesive to
attach the cast metal parts.
C Pilot holes are etched for all pivot points (shown thus
Use a 0.75mm diameter twist drill to enlarge these holes to suit the
dress-makers pins supplied for use as pivots.

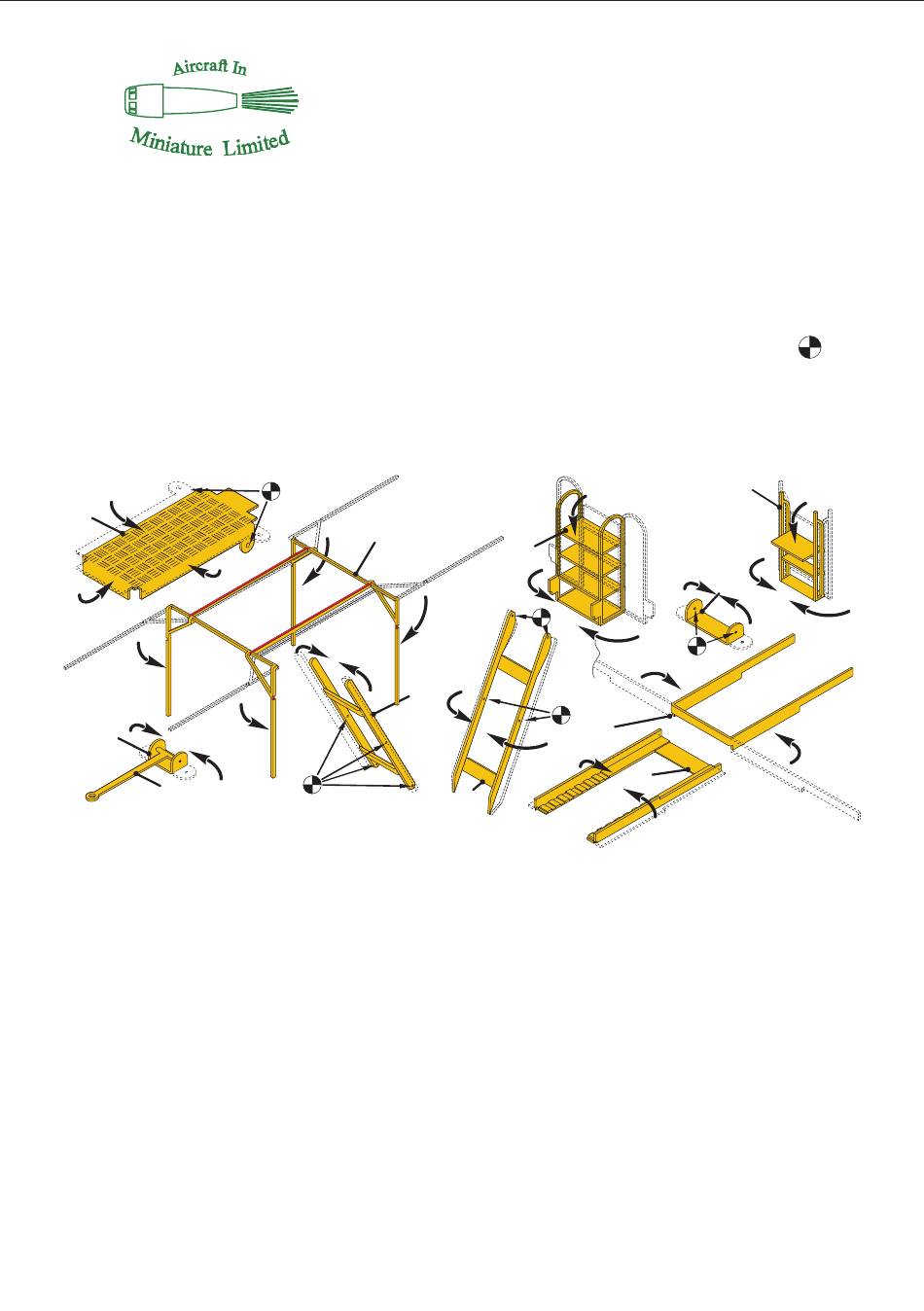

2 Fold each part as shown in Figure 1, below. Fold up the tabs on the tow bar
mount (9) to trap the pins on the towbar (16), but leave the towbar free to
move.
4
2
9
3 Platform Assembly (see Figure 2)
A Make sure that the capping (1) fits the platform (4), and that the hand
rails (11, 15 and 16) fit into the sockets at the corners of the platform,
then attach the capping with the top of the capping level with the
platform top face.
B Attach the lever to the hydraulic pump, then attach the assembly to
the corner of the platform in the position shown.
C Attach the top tread of the ladder (9) to the tab on the platform (3).
3 Chassis Assembly (see Figure 3)
A Attach the guide angles (5) to the lower frame (19).
B Crop the pins supplied and use then as rivets (to form pivots) then
assemble the scissors mechanism (6) and (7).
C Attach the lower scissors pivot (T) to the guide angles (5).
D Attach the upper scissors pivot (B) below the platform (4).
.
USAF B-5 MAINTENANCE STAND
19
7

Figure 1

ASSEMBLY INSTRUCTIONS
1:72 and 1:48 versions
14
6
9
8
1
5
).
