Waterworld PROLINE RO 1:1 Installation & Service Manual

Reverse osmosis drinking water system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Installation &
Service Manual
Reverse Osmosis Drinking Water System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROLINE RO 1:1 and is the answer not in the manual?

Questions and answers

Related Manuals for Waterworld PROLINE RO 1:1

Summary of Contents for Waterworld PROLINE RO 1:1

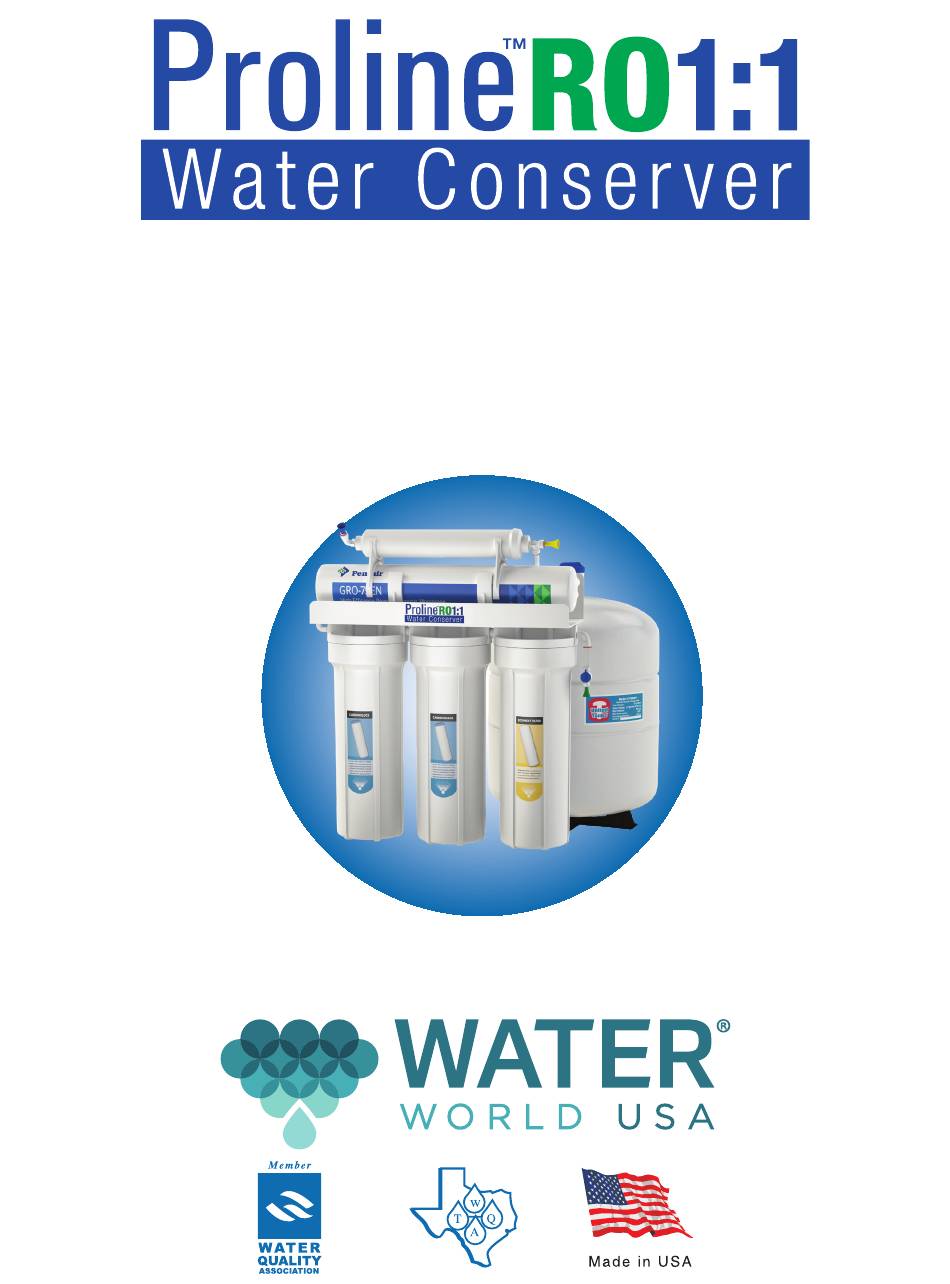

  • Page 1 Installation & Service Manual Reverse Osmosis Drinking Water System...
  • Page 2 Congratulations on choosing the PROLINE RO 1:1 ® Reverse Osmosis (RO) Drinking Water System This high quality unit has been designed to fit under most kitchen and wet-bar sinks. We suggest that you carefully review the following information booklet before you attempt to install the reverse osmosis system.
  • Page 3 INSTALLATION DIAGRAM FOR PROLINE RO 1:1 SYSTEM (shown with standard faucet) RO dispensing Faucet 3/8” 1/4” Yellow tubing to tank WARNING: CONNECT YOUR SYSTEM TO THE COLD WATER SUPPLY ONLY. DO NOT USE WATER SUPPLY THAT IS MICRO-BIOLOGICALLY UNSAFE, OR OF UNKNOWN SOURCE WITHOUT ADEQUATE DISINFECTION BEFORE OR AFTER THE SYSTEM.

  • Page 4: Installation Kit

    Installation Kit 1. Color Coded Tubing: ( 4 coils, 4 colors) ¼’’ Green Tubing (approximately 6 feet) ¼’’ Red Tubing (approximately 6 feet) 3/8’’ Yellow Tubing (approximately 6 feet) COLOR TUBING 3/8’’ Blue Tubing (approximately 6 feet) Optional 5th coil is added for air gap installations 3/8’’...
  • Page 5 TAPPING INTO THE COLD WATER LINE (Using the water supply adaptor Part # ASVPP1) For flex metal or plastic line. NOTE: The Proline drinking water system must be connected to the COLD water supply ® only. 1) Turn off the cold water supply to the sink faucet by locating the round or oblong handle and turning clockwise until the water supply is off.

  • Page 6: Tools Required

    Tools Required: 1) Hand drill for faucet hole. Use the appropriate bit for the surface you are drilling. (½” for non air gap faucets and - 7/8” drill bit for air gap ones). A) Titanium bit for metal sinks. B) Glass and tile bit or Relton cutter for porcelain sinks. C) Diamond core bit for granite.

  • Page 7: Mounting The Faucet

    MOUNTING THE FAUCET Standard Faucet 1) Drill a ½” hole in the sink or the counter top, or use an existing hole. 2) Slide chrome cover plate and rubber gasket on to stem of faucet and place faucet onto sink, with the stem going through the hole.
  • Page 8 EZ FITTINGS- QUICK CONNECT Your PROLINE® RO system is equipped with EZ fittings. The quick connect fittings feature leak proof installations. EZ Fittings provide efficient quick connection and disconnection resulting in reduction of service time and labor cost. 1 Cut tubing square Cut the tube square.

  • Page 9: Start-Up Procedure

    START UP PROCEDURE 1) Check to see all connections are made 2) Check that the pre-filter and pre-carbon sumps are secure with o-rings in place using the housing wrench provided. 3) Slowly turn on the water by turning the needle valve counterclockwise or ball valve 1/4 turn,where handle is parallel to the tubing line.

  • Page 10: Recommended Maintenance

    NOTE: MINIMUM PRESSURE REQUIRED TO OPERATE YOUR PROLINE® 1:1 SYSTEM IS 40 PSI. A BOOSTER PUMP ASSEMBLY IS REQUIRED WHEN FEED PRESSURE DROPS BELOW 40 PSI. IMPORTANT NOTES-MUST READ: 1) All PROLINE 1:1 RO system has been thoroughly tested at our factory. The system ®...

  • Page 11: Instructions And Information

    Instructions and Information Model: PROLINE-RO1:1 Contact your local dealer for replacement filters, or you may call 281-933-5777 to locate a dealer in your area. This reverse osmosis system discharges 450 milliliters per minute while the tank is filling. This reverse osmosis system contains replaceable treatment component, critical for effective reduction of total dissolved solids.

  • Page 12: Troubleshooting

    TROUBLESHOOTING SYMPTOM CAUSE CORRECTION NOTES: 1) TURN WATER SUPPLY ON. 1) WATER SUPPLY IS TURNED OFF. 2) CHECK TO MAKE SURE FEED VALVE IS NOT CLOGGED. UNIT FAILS TO PRODUCE 2) NOT ENOUGH WATER PRESSURE TO 1) CHECK FEED WATER PRESSURE. MUST BE AT WATER SYSTEM.

  • Page 13: Conditions For Operation

    PROLINE® LIMITED WARRANTY Congratulations on the purchase of your WW-USA Water System. WW-USA warrants that the Products identified below are free from material defects in materials and workmanship. Any defective part will be replaced at no charge for the part if any fail- ure caused by the defect occurs within the following time periods originating from the date of original system installation.
  • Page 14 Notes...
  • Page 16 Distributed by: Serial # _______________________________________...
